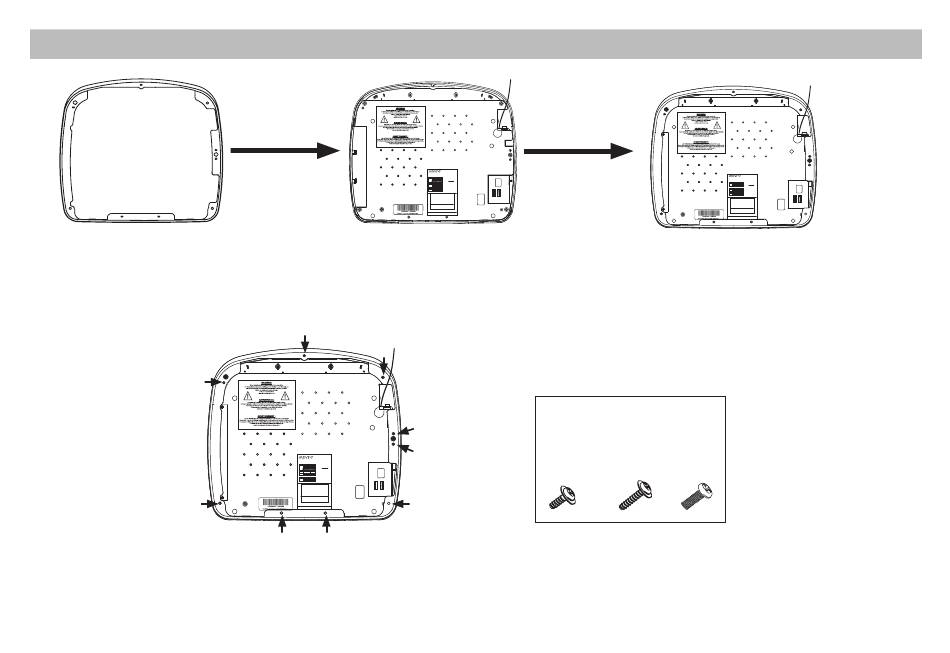

INSTALLING THE TRIM RING
4.
Locate the #4 x 5/16" self-tapping screw in the hardware kit.
5.
Using a screwdriver, install the #4 x 5/16" self-tapping screw into the location marked "B" shown in the figure below.
6.
Locate the three (3) #4 x 7/16" self-tapping screws in the hardware kit.
7.
Using a screwdriver, install the three (3) #4 x 7/16" self-tapping screws into the locations marked "C" shown in the figure below.
(D)
(C)
8.
Locate the five (5) M3 x 8mm screws in the hardware kit.
9.
Using a screwdriver, install the five (5) M3 x 8mm screws into the locations marked "D" shown in the figure above.
NOTE: Use caution tightening screws as the threads may strip in the DVD Player.
Trim Ring
(B)
(C)
R
VOXX ELECTRONICS CORP.
150 Marcus Blvd., Hauppauge, NY 11788
MODEL NO. : ADVDLX10 A
Technical Assistance: 1-800-225-6074
Power + Dome Light 6-Pin Harness
Connector
Signal Name
Color
CON6
LAMP-AUTO
VIO/BRN
(BLACK)
LAMP-ON
RED/BLK
LAMP-COMMON
BLK/RED
Inspected By:
POWER +12v (SW)
RED
POWER GROUND
BLACK
AV Input 5-Pin Harness
Connector
Signal Name
Color
CON5
VIDEO-IN
YELLOW
(BLUE)
AUDIO L-IN
WHITE
AUDIO R-IN
RED
AV Output 5-Pin Harness
Connector
Signal Name
Color
CON2
VIDEO-OUT
YELLOW
(WHITE )
AUDIO L-OUT
WHITE
132-7888
AUDIO R-OUT
RED
Made in China
This device complies with FCC Rules P art 15.
Operation is subject to the following two
conditions : (1) This device may not cause
harmful interference and (2) This device must
accept any interference that may be received,
including interference that may cause
undesired operation.
This product is Class 1 Laser Product and
complies with FDA Rules 21 CFR Chapter 1,
Subchapter J.
Patented, refer to www.voxxintl.com/company/patents
FCC ID : ATI9R3ODM21012
(D)
(D)
DVD
PLAYER
R
VOXX ELECTRONICS CORP.
150 Marcus Blvd., Hauppauge, NY 11788
Technical Assistance: 1-800-225-6074
MODEL NO. : ADVDLX10 A
Power + Dome Light 6-Pin Harness
Connector
Signal Name
Color
(BLACK)
CON6
LAMP-AUTO
VIO/BRN
RED/BLK
LAMP-ON
LAMP-COMMON
BLK/RED
Inspected By:
POWER +12v (SW)
RED
POWER GROUND
BLACK
AV Input 5-Pin Harness
Connector
Signal Name
Color
CON5
(BLUE)
VIDEO-IN
YELLOW
AUDIO R-IN
AUDIO L-IN
WHITE
RED
Connector
AV Output 5-Pin Harness
Signal Name
CON2
VIDEO-OUT
YELLOW
Color
(WHITE )
AUDIO L-OUT
WHITE
AUDIO R-OUT
RED
132-7888
Made in China
This device complies with FCC Rules P art 15.
Operation is subject to the following two
conditions : (1) This device may not cause
harmful interference and (2) This device must
accept any interference that may be received,
including interference that may cause
undesired operation.
This product is Class 1 Laser Product and
complies with FDA Rules 21 CFR Chapter 1,
Subchapter J.
Patented, refer to www.voxxintl.com/company/patents
FCC ID : ATI9R3ODM21012
TRIM RING SCREW SET
(B) #4 X 5/16" SELF TAPPING SCREW
(QTY 1)
(D)
(C) #4 X 7/16" SELF TAPPING SCREW
(QTY 3)
(D)
(D) M3 X 8mm SCREW
(QTY 5)
(C)
(B)
8
R
VOXX ELECTRONICS CORP.
150 Marcus Blvd., Hauppauge, NY 11788
MODEL NO. : ADVDLX10 A
Technical Assistance: 1-800-225-6074
Power + Dome Light 6-Pin Harness
Connector
Signal Name
Color
CON6
LAMP-AUTO
VIO/BRN
(BLACK)
LAMP-ON
RED/BLK
LAMP-COMMON
POWER +12v (SW)
RED
BLK/RED
Inspected By:
POWER GROUND
BLACK
AV Input 5-Pin Harness
Connector
Signal Name
Color
CON5
VIDEO-IN
YELLOW
(BLUE)
AUDIO L-IN
WHITE
AUDIO R-IN
RED
AV Output 5-Pin Harness
Connector
Signal Name
Color
CON2
(WHITE )
VIDEO-OUT
YELLOW
AUDIO L-OUT
AUDIO R-OUT
WHITE
RED
132-7888
Made in China
This device complies with FCC Rules P art 15.
Operation is subject to the following two
conditions : (1) This device may not cause
harmful interference and (2) This device must
accept any interference that may be received,
including interference that may cause
undesired operation.
This product is Class 1 Laser Product and
complies with FDA Rules 21 CFR Chapter 1,
Subchapter J.
Patented, refer to www.voxxintl.com/company/patents
FCC ID : ATI9R3ODM21012
(C)
(D)
TRIM
RING
ON DVD
PLAYER
