Description of the Device

Features
The Showtec Net-2 Install is a cutting-edge network routing device which converts Art-Net or sACN to
DMX-512 and vice versa. It is suitable for fixed installations. It allows for the transmission of a maximum of
1024 DMX channels over a single Ethernet cable. The Net-2 Install can be configured remotely via a web
interface and can be powered using the Phoenix terminals or PoE (Power-over-Ethernet) technology. It
supports Backup, Normal, Single, HTP and LTP merging options.
● Power supply: 12–36 V DC, 500 mA or PoE (802.3af)
● Power consumption: 6 W
● DMX: 2 universes (IN and/or OUT)
● Ethernet speed: 10/100Base-T
● Data connection: 3-pin Phoenix terminal (maximum cable gauge: 1,5 mm
● Power connection: 2-pin Phoenix terminal (maximum cable gauge: 1,5 mm
● Control modes: Art-Net, sACN, TCP/IPv4, DMX-512-A
● Setup: Control panel, web interface
● Merging options: HTP, LTP, Normal, Backup
● DMX data refresh rate: 40 Hz default (adjustable 10–40 Hz)
● Display: OLED
● Mounting: 35-mm DIN rail system (DIN EN43880 form factor; DIN EN60715 rail system)
● Mounting size: 6 TE
● Housing: UL94-V0 flame-retardant polycarbonate
● Color: Gray
● IP rating: IP20
● Operating temperature: 0–40 °C
● Dimensions: 105 x 98 x 58 mm (LxWxH)
● Weight: 0,18 kg

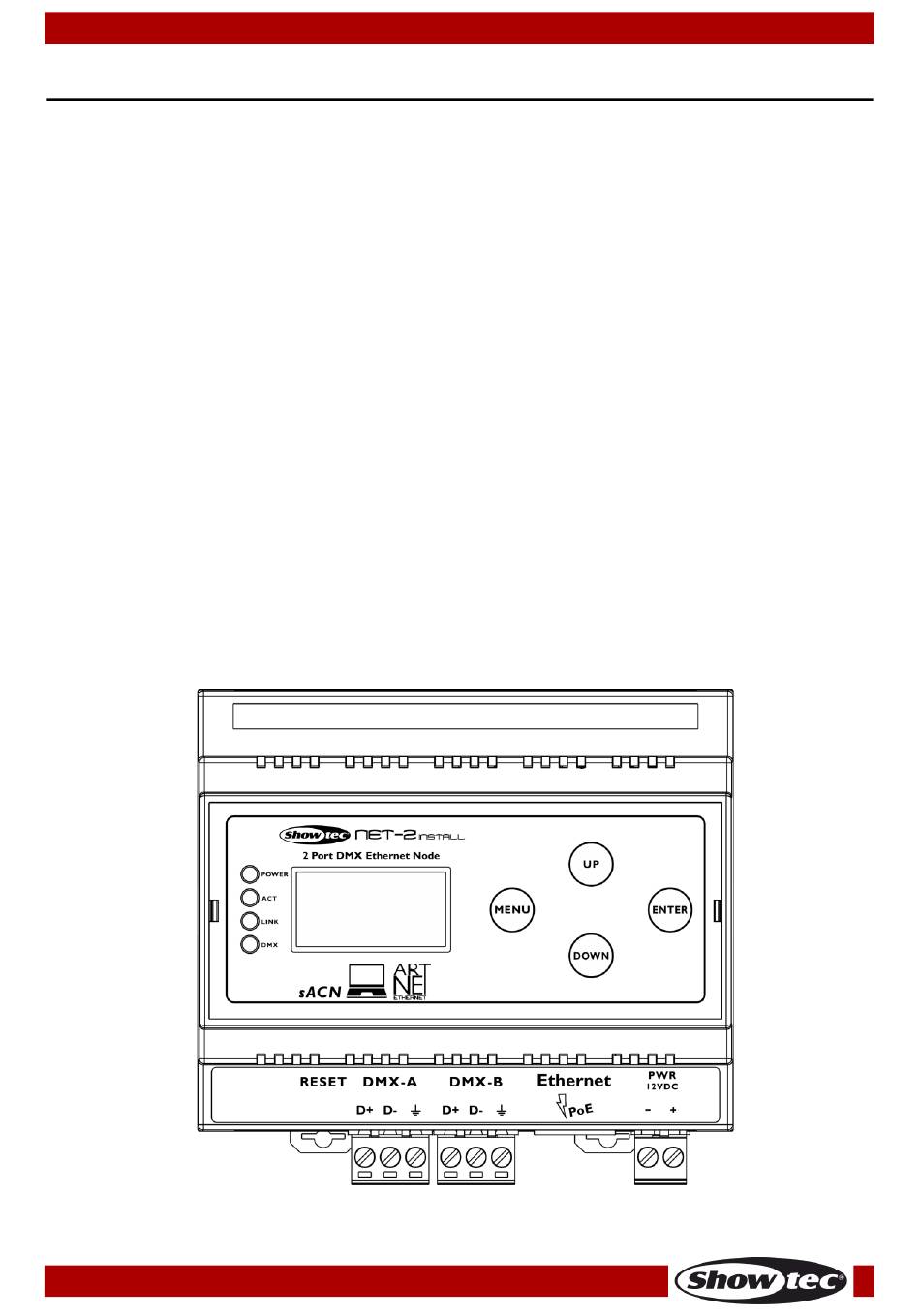

Overview

Order code: 50816
5
/ AWG: 12), RJ45
2
/ AWG: 12)
2
Fig. 01
