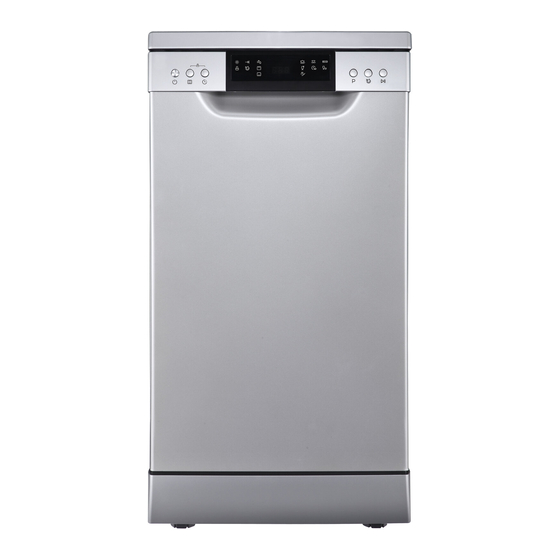

- Page 1 42CM COMPACT MODEL/S FREESTANDING IDW42CS DISHWASHER USER MANUAL V 1.0...
- Page 2 It is important that you read through the following use and care manual thoroughly to familiarise yourself with the installation and operation requirements of your appliance to ensure optimum performance. Again, thank you for choosing an InAlto appliance and we look forward to being of service to you.
-
Page 3: Table Of Contents
CONTENTS Welcome Safety Information Quick Operation Operating Instruction Prior using for the First Time 12 Loading the Dishwasher Baskets 14 Start a Washing Program 16 Maintenance and Cleaning 18 Installation Instruction 21 Troubleshooting Tips 23 Technical Information 26 Attach your Receipt 27 Purchase Details 28 Warranty... -
Page 4: Safety Information
1.IMPORTANT SAFETY INFORMATION WARNING! When using your dishwasher, follow the precautions listed below: This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments. - Page 5 Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
-
Page 7: Quick Operation
2.Quick operation guide For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Open the door, press the On/Off button to switch on the appliance. Compartment A: For each wash cycle. Compartment B: Fill the detergent dispenser For programs with pre-wash only. -
Page 8: Operating Instruction
3.Operation Instruction IMPORTANT To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Control Panel 1. On/Off Button: to switch On/Off the appliance; 2.Alt function Button: Dual zone wash function, press the 10.Child lock indicator;... -
Page 9: Prior Using For The First Time
Prior using for the first time Before using your dishwasher for the first time: Fill the rinse aid dispenser Fill in detergent A. Rinse Aid Dispenser Rinse Aid Dispenser The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. - Page 10 NOTE: Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming during the next wash. Don't forget to replace the cap before you close dishwasher door. Adjusting Rinse Aid Dispenser The rinse aid dispenser has six or four settings. Always start with the dispenser Adjust lever set on "4".
- Page 11 Proper Use of Detergent Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry. Don't put powdered detergent into the dispenser until you're ready to wash dishes. Adding detergent to dispenser Fill in Detergent Fill the detergent dispenser with detergent.
-
Page 12: Loading The Dishwasher Baskets
5.Loading the Dishwasher Baskets Recommendation Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low a temperature as possible. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended. - Page 13 The Method Loading Normal Dishware Loading the Upper Basket Loading the Lower Basket The upper basket is designed to hold more delicate We suggest that you place large items and the most and lighter dishware such as glasses, coffee and difficult to clean items are to be placed into the lower tea cups and saucers, as well as plates, small bowls basket: such as pots, pans, lids, serving dishes and...
- Page 15 NOTE: When you press the Start/Pause button to pause during washing, the LED display will stop blinking and the dishwasher will mooing every minute unless you press the Start/Pause button to start. Change the Program Premise: A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water.
-
Page 16: Maintenance And Cleaning
7.Maintenance and Cleaning Filtering System The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter,a flat (Main filter) And a microfilter(Fine filter). - Page 17 Remarks: - Inspect the filters for blocking after every time the dishwasher has been used. - By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water. NOTE: The entire filter assembly should be cleaned once a week. Cleaning the Filter To clean the coarse filter and the fine filter, use a cleaning brush.
-
Page 18: Installation Instruction
How to Keep Your Dishwasher in Shape After Every Wash When not in Use for a LongTime It is recommend that you run a wash cycle with the After every wash, turn off the water supply to the dishwasher empty and then remove the plug from the appliance and leave the door slightly open so that socket, turn off the water supply and leave the door of moisture and odours are not trapped inside. - Page 19 Water Connection Cold Water Connection Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear.
- Page 20 How to Drain Excess Water From Hoses How to Drain Excess Water From Hoses If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink.
-
Page 21: Troubleshooting Tips
9.Troubleshooting Tips 9.Troubleshooting Tips Before Calling for Service Before Calling for Service Review the charts on the following pages may save you from calling for service. Review the charts on the following pages may save you from calling for service. Problem Problem Possible Causes What to Do... - Page 22 Problem Problem Possible Causes Possible Causes What to Do What to Do The dishes The dishes The dishes were not The dishes were not See notes in " Loading the Dishwasher Baskets ". See notes in " Loading the Dishwasher Baskets ". are not clean are not clean loaded correctly.
-
Page 23: Technical Information
Technical Information Height : 845mm Width : 448m m Depth : 600mm (with the door closed) Water pressure: 0.04-1.0MPa Power supply: see rating label Capacity: 10 place settings... -
Page 26: Attach Your Receipt
Attach your receipt to this page... -
Page 27: Purchase Details
Purchase Details For future reference, please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. STORE DETAILS STORE NAME ADDRESS TELEPHONE PURCHASE DATE PRODUCT DETAILS MODEL NO. - Page 28 Warranty Information AUSTRALIA WARRANTY TERMS & CONDITIONS IN THIS WARRANTY DISHWASHERS ‘acceptable quality’ as referred to in clause 10 of this warranty has the same meaning referred to in the ACL; This document sets out the terms and conditions of the ‘ACL’...
- Page 29 You will bear the cost of transportation, travel and For Appliances and services provided by Residentia delivery of the Appliance to and from Residentia Group Group in Australia, the Appliances come with a or its ASR. If you reside outside of the service area, guarantee by Residentia Group that cannot be you will bear the cost of: excluded under the Australian Consumer Law.
-
Page 30: Warranty
24 months on the Simply visit the below website, or ask your retailer for help: microwave magnetron; Waste disposers have a www.inalto.co.nz/register 12 month warranty. The provision of service under this warranty is limited WARRANTY:... - Page 31 This page is intentionally left blank...
- Page 32 A N I N I T I AT I V E BY R E S I D E N T I A G R O U P T E L . 1 3 0 0 1 1 4 3 5 7 S U P P O RT @ R E S I D E N T I A G R O U P.
