Summary of Contents for Inalto IDW604W

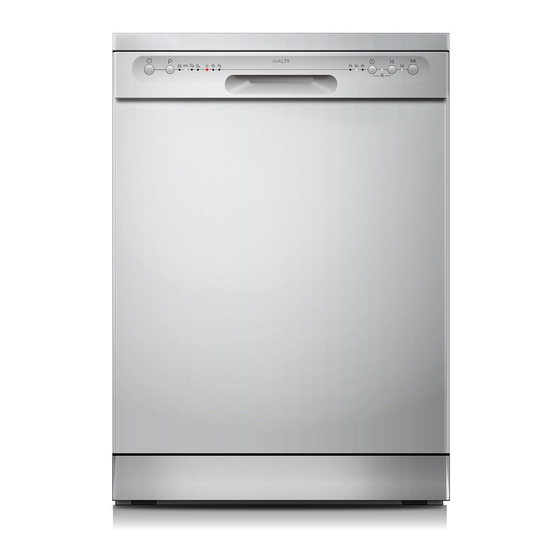

- Page 1 60CM FREESTANDING MODEL/S DISHWASHER IDW604W IDW604S USER MANUAL V 1.0...
-
Page 2: Table Of Contents
30 Troubleshooting requirements of your appliance to ensure optimum performance. 34 Technical Information Again, thank you for choosing an InAlto appliance and we look forward to being of service to you. 30 Troubleshooting Kind Regards,... -
Page 3: Safety Information
NOTE: Reviewing the section on troubleshooting Tips will help you solve some SAFETY INFORMATION common problems by yourself. If you cannot solve the problems by yourself, please ask for help from a professional technician. WARNING The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice. - Page 4 The plug must be plugged into an appropriate outlet that is installed and earthed The appliance needs to be connected to the main water valve using new hose sets. in accordance with all local codes and ordinances. Old sets should not be reused. Improper connection of the equipment-earthing conductor can result in the risk of To save energy, in stand by mode , the appliance will switch off automatically an electric shock.
-
Page 5: Product Overview
PRODUCT OVERVIEW INSTALLATION INSTRUCTION IMPORTANT: WARNING To get the best performance from your dishwasher, read all operating instructions Electrical Shock Hazard before using it for the first time. Disconnect electrical power before installing dishwasher. Failure to do so could result in death or electrical shock. Attention The installation of the pipes and electrical equipments should be done by professionals. - Page 6 Position The Appliance Connection Of Drain Hoses Position the appliance in the desired location. The back should rest against the wall Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run behind it, and the sides, along the adjacent cabinets or walls.
-
Page 7: Using Your Dishwasher
Indicator USING YOUR DISHWASHER Intensive Control Panel For heaviest soiled crockery, such as pots, pans, casserole dishes and dishes that have been sitting with dried food on them for some time. For normally soiled loads, such as pots, plates, glasses and Program lightly soiled pans, standard everyday cycle. - Page 8 Function Of The Rinse Aid And Detergent Filling The Rinse Aid Reservoir The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes.
- Page 9 Filling The Detergent Dispenser Basket Used Tips Adjusting the upper basket The height of the upper basket can be easily adjusted to accommodate taller dishes Push latch to open in either the upper or lower basket. To adjust the height of the upper rack, follow these steps: Press the release catch on the detergent Add detergent into the larger cavity dispenser to open the cover.
- Page 10 Folding back the rack shelves Recommendations for loading the dishwasher Scrape off any large amounts of leftover food. Soften remnants of burnt food in The spikes of the lower basket are used for holding plates and a platter. pans. It is not necessary to rinse the dishes under running water. They can be lowered to make more room for large items.
- Page 11 Loading The Baskets According To En50242 Loading the upper basket The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and 1.Upper basket: saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty).
- Page 12 3.Cutlery basket: PROGRAMMING THE DISHWASHER Wash Cycle Table The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs. )Means: need to fill rinse into the Rinse-Aid Dispenser. Description Detergent Running...
- Page 13 Starting A Cycle Wash Forget To Add A Dish? 1. Draw out the lower and upper basket, load the dishes and push them back. A forgotten dish can be added any time before the detergent dispenser opens. If It is commended to load the lower basket first, then the upper one. this is the case, follow the instructions below: 2.
-
Page 14: Maintenance & Cleaning
MAINTENANCE AND CLEANING External Care Main filter Coarse filter Fine filter The door and the door seal Clean the door seals regularly with a soft damp cloth to remove food deposits. When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. - Page 15 Caring For The Dishwasher Spray arms It is necessary to clean the spray arms regularly for hard water chemicals will clog the Frost precaution spray arm jets and bearings. To clean the spray arms, follow the instructions below: Please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows: 1.
-
Page 16: Troubleshooting
TROUBLESHOOTING TIPS Problem Possible Causes What To Do Spilled rinse-aid. Always wipe up rinse-aid spills immediately. Before Calling For Service Reviewing the charts on the following pages may save you from calling for service. Stained tub interior Detergent with Make sure that the detergent has no colourant may colourant. - Page 17 Problem Problem Possible Causes What To Do Possible Causes What To Do The dishes aren't Wrong program has With a short program, the washing The dishes Not enough detergent Use more detergent, or change drying been selected. temperature is lower, decreasing are not clean.
-
Page 18: Technical Information
Product fiche Product fiche TECHNICAL INFORMATION Manufacturer Inalto Type / Description IDW604S/IDW604W Standard place settings Energy efficiency class Water consumption class Standard cleaning cycle Energy consumption of the standard cleaning cycle 0.73 kWh Water consumption of the standard cleaning cycle 10.8 liter... -
Page 19: Purchase Details
Attach your receipt Purchase Details to this page For future reference, please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. STORE DETAILS STORE NAME ADDRESS TELEPHONE PURCHASE DATE... -
Page 20: Warranty
Warranty Information WARRANTY TERMS & CONDITIONS IN THIS WARRANTY You will bear the cost of transportation, travel and For Appliances and services provided by Residentia DISHWASHERS ‘acceptable quality’ as referred to in clause 10 of this delivery of the Appliance to and from Residentia Group Group in Australia, the Appliances come with a warranty has the same meaning referred to in the ACL;... - Page 21 This page This page is intentionally is intentionally left blank left blank...
- Page 22 A N I N I T I AT I V E BY R E S I D E N T I A G R O U P T E L . 1 3 0 0 1 1 4 3 5 7 S U P P O RT @ R E S I D E N T I A G R O U P.
