Chapter 2 NAME OF PARTS

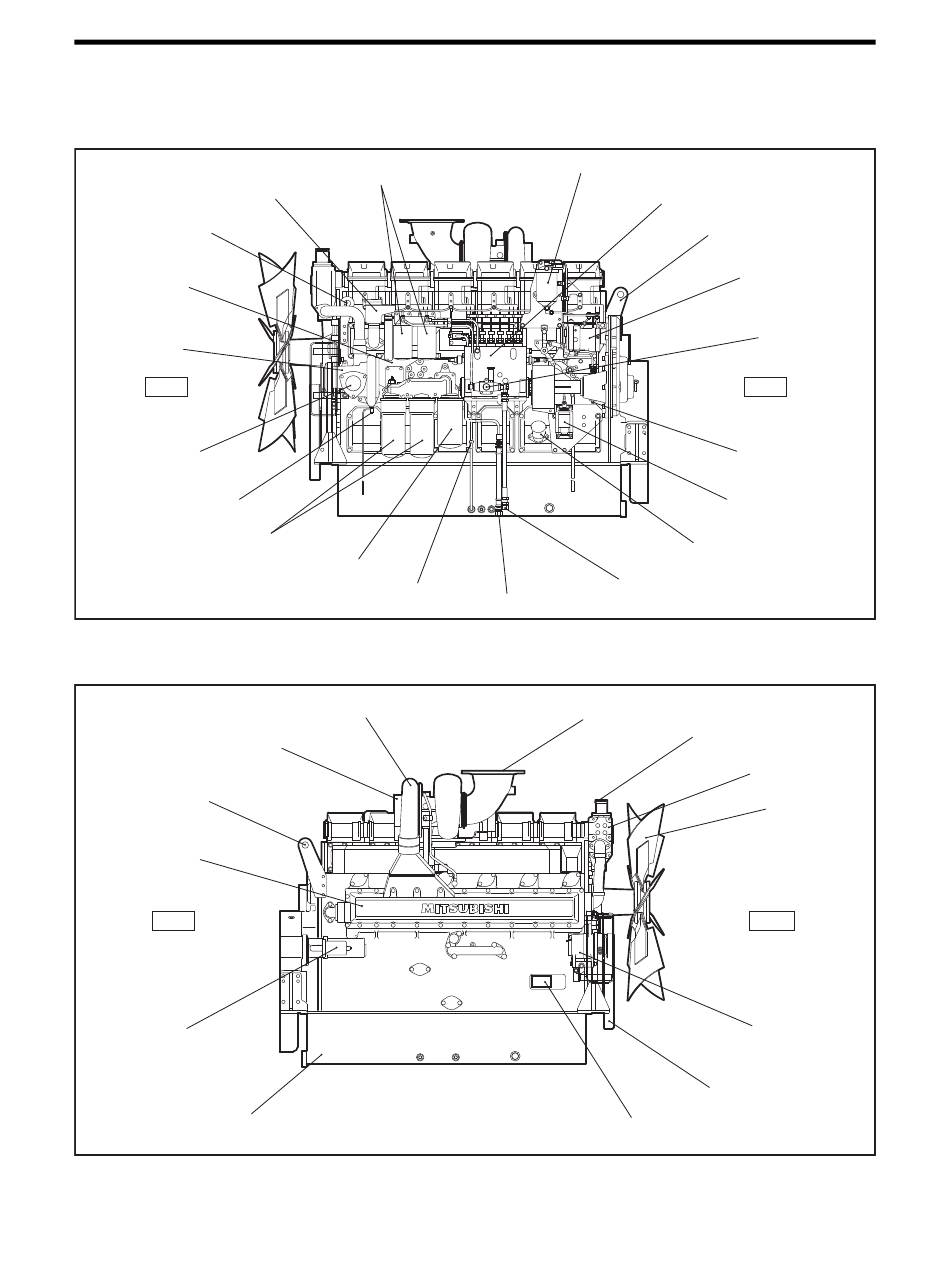

Engine External Diagrams

Left Side

Governor oil filter
Fuel filter
Breather
Fuel injection pump
Hanger
Hanger
Governor
Oil cooler
Fuel feed pump
Water pump
Front Rear
Coolant inlet Coolant drain cock
Coolant drain cock
Stop solenoid
Oil filter
Oil filler
Bypass oil filter
Fuel inlet
Oil level gauge
Fuel return port

Fig. 2-1 Engine Left Side View

Right Side

Turbocharger
Exhaust outlet
Coolant outlet
Air intake inlet
Thermostat
Hanger
Fan
Air cooler
Front
Rear
Starter
Alternator
Damper
Oil pan
Name plate

Fig. 2-2 Engine Right Side View
