Note:
Press set key to save & exit if no key is pressed, will auto exit after 10 sec.
MS 1208

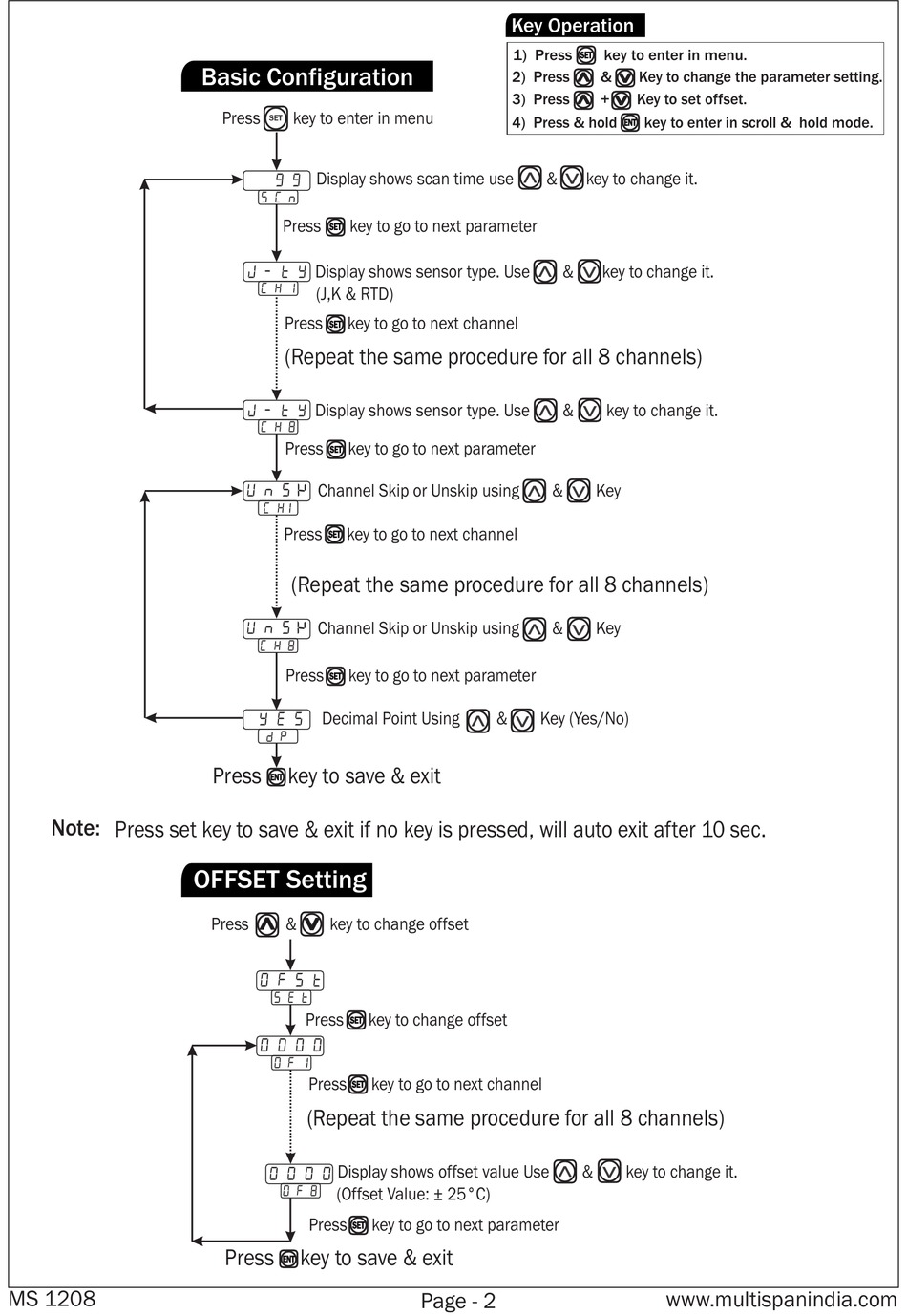

Basic Configuration

Press key to enter in menu
SET
Display shows scan time use
9 9
s C N
Press key to go to next parameter
SET
J - T Y Display shows sensor type. Use
C H 1
(J,K & RTD)
Press key to go to next channel
SET
(Repeat the same procedure for all 8 channels)
J - T y Display shows sensor type. Use
C H 8
Press key to go to next parameter
SET
u n S Channel Skip or Unskip using
C H1
Press key to go to next channel
SET
(Repeat the same procedure for all 8 channels)
u n S
Channel Skip or Unskip using
C H 8
Press key to go to next parameter
SET
Y E S Decimal Point Using
D P
Press key to save & exit
ENT

OFFSET Setting

Press & key to change offset
O F S T
S E T
Press
SET
O 0 0 0
O F 1
Press
SET
(Repeat the same procedure for all 8 channels)
O 0 0 0 Display shows offset value Use
O F 8
(Offset Value: ± 25°C)
Press
SET
Press key to save & exit
ENT

Key Operation

1) Press
2) Press
3) Press
4) Press & hold
&
key to change offset
key to go to next channel
key to go to next parameter
Page - 2
key to enter in menu.
SET
& Key to change the parameter setting.
+ Key to set offset.
key to enter in scroll & hold mode.
ENT
& key to change it.
& key to change it.
& key to change it.
& Key
& Key
Key (Yes/No)
& key to change it.
