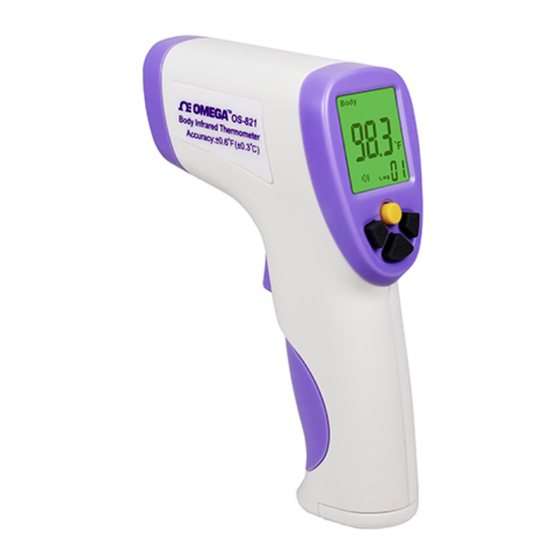

- Page 1 User’ s Gui d e Shop online at omega.com e-mail: info@omega.com For latest product manuals: omega.com/en-us/pdf-manuals OS820-Series Non-Contact Body IR Thermometer with 3 Color Alarm Backlight Display...
- Page 2 Tel: (203) 359-1660 Fax: (203) 359-7700 e-mail: info@omega.com For Other Locations Visit omega.com/worldwide The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
- Page 4 Non-Contact Body IR Thermometer with 3 Color Alarm Backlight Display OS820-Series User Manual Features: Product Introduction: This product is a handheld non-contact infrared Two measurement modes: Human body thermometer, with two possible measurement temperature and object surface modes: human body temperature measurement temperature and object surface temperature measurement ...
- Page 5 Technical Specification: Human Body Temperature Measurement Range 89.6-108.5⁰F (32.0-42.5⁰C) Human Body Temperature Measurement Accuracy ±0.6⁰F (±0.3⁰C) Object Surface Temperature Measurement Range 32-212⁰F (0-100⁰C) Object Surface Temperature Measurement Accuracy ±1⁰C (±1.8⁰F) Resolution 0.1⁰C (0.1⁰F) Response Time 0.5s Distance to Measuring object 1.9-3.2”...
- Page 6 Temperature Measurement Surface temperature measurement mode: Point to the measuring object at a range of 1.9- Keeping the trigger pressed, the display will 3.2” (5-8 cm) and press the trigger to begin the indicate the object surface temperature live measurement. The display screen will display with green backlight.
- Page 7 Precautions before first use 1. Install batteries before use 2. Before first use, warm up the device for about 10 minutes before installing the battery. 3. When using it for body temperature measurement point thermometer at the forehead. This is a non-contact thermometer and the suggested measuring distance to the forehead is 2”...
- Page 8 Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification.
