Samsung SSA-S2000V User Manual

Samsung SSA-S2000V User Manual

Standalone rfid access controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Standalone RFID
Access Controller
User Manual
SSA-S2000V

Advertisement

Table of Contents
loading

Related Manuals for Samsung SSA-S2000V

Summary of Contents for Samsung SSA-S2000V

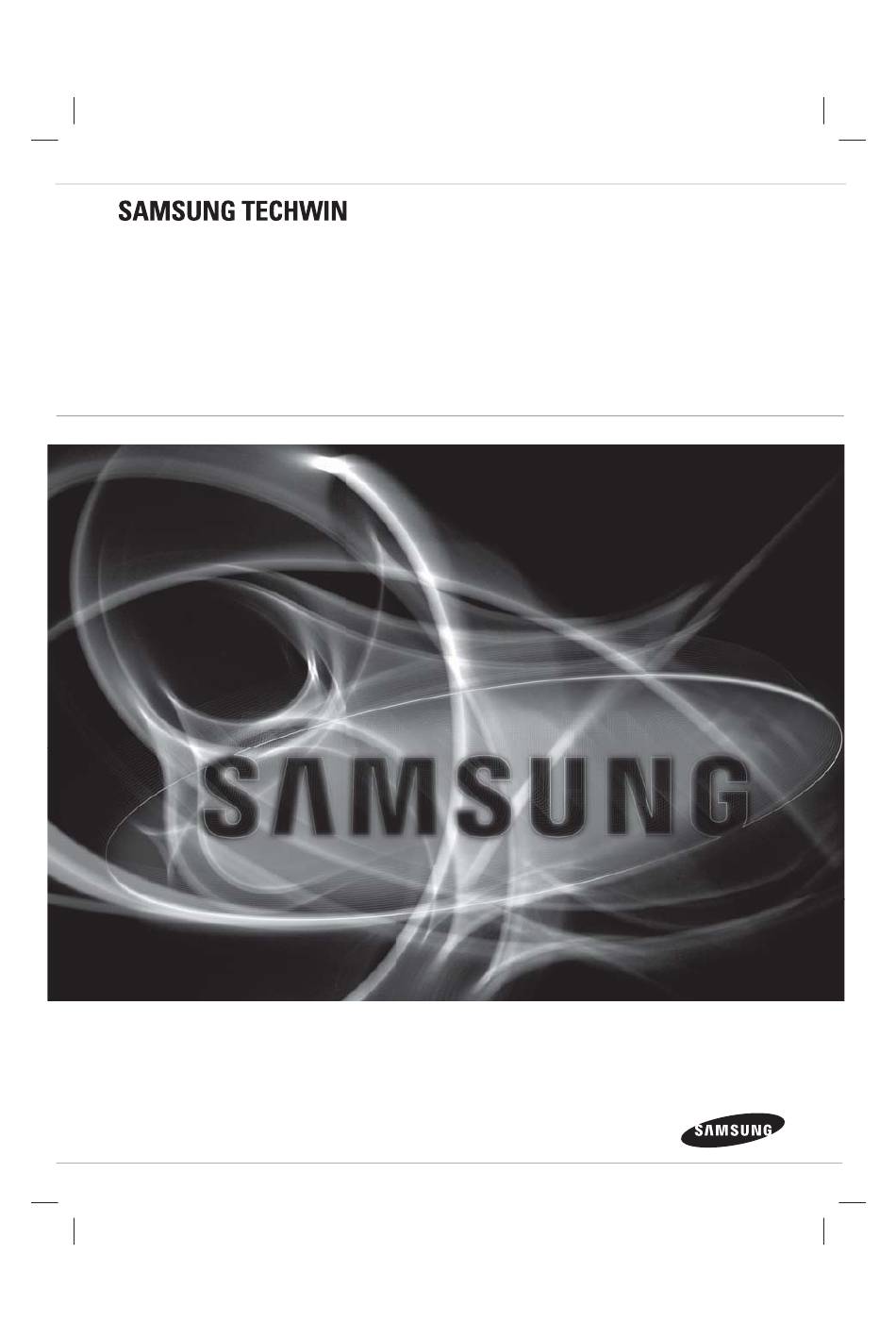

  • Page 1 Standalone RFID Access Controller User Manual SSA-S2000V...
  • Page 2 Techwin. Disclaimer Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.
  • Page 3 If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this product in any way. (SAMSUNG is not liable for problems caused by unauthorized modifi cations or attempted repair.) . When cleaning, do not spray water directly onto parts of the product. Doing so may cause fi re or electric shock.
  • Page 4 safety information FCC Statement Caution : Any changes or modifi cations in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
  • Page 5 contents PRODUCT INTRODUCTION Features What’s included At a Glance Cable Color Scheme INSTALLATION AND EXTERNAL Cable Selection Bypass Diode Connection CONNECTION I/O Connection External Reader Connection INITIALIZATION Basic Operations Initialization Forced Initialization with External Line READER MODE SETUP Reader Mode Setup (RF ONLY) Reader Mode Setup (RF + P/W) Reader Mode Setup (PIN ONLY) Reader Mode Setup (RF/PIN Combination...

  • Page 6: Table Of Contents

    contents I/O TIME SETUP To specify the output time if the card is authenticated To specify the output time if the card is not authenticated To specify the Duress TTL output To specify the alarm output for an input error of the Door contact Sensor To specify the alarm operation time for AUX 1 To specify the alarm operation time for AUX 2...
  • Page 7 User Registration You can register a total of 512 cards including the Master Card. Keypad Registration SSA-S2000V is equipped with the built-in keypad that you can use to register, delete cards or confi gure various settings independently. Buzzer On/Off With the help of various buzzer tones, you can check the operation status and the current settings and results of the product.
  • Page 8 WHAT’S INCLUDED Check if the following items are included in the product package. SSA-S2000V 3.5 x 40mm Screws (x4) Main Unit 3.5 x 25mm Screws (x4) CD Manual 6 x 30mm Plastic Anchors (x4) Diodes (x2) Quick Guide...
  • Page 9 AT A GLANCE Front/Rear SSA-S2000V System Status LED Indicates the operation status of the system. Keypad Use this to confi gure or release settings as appropriate, or enter a card number. TAMPER SWITCH A tamper switch to detect falling from the wall.
  • Page 10 product introduction CABLE COLOR SCHEME Item Cable Color Signal Line Description DC +12V Power (+12V) Power Black GND(-) Earth-grounding for power Blue with white stripes NC(RL1) Door Relay NC Terminal Gray with red stripes COM(RL1) Door Control Relay (COM) Port White with red stripes NO(RL1) Door Relay NO port...
  • Page 11 CABLE SELECTION DC12V Power Supply SSA-S2000V Sensor Input RF Reader Lock/Alarm Item Cable Type Cable Type Power (DC12V) Belden #9409, 18 AWG 2 Conductor, Unshielded Belden #9409, 18 AWG 2 Conductor, Unshielded DC Power This Product...
  • Page 12 To reduce this surge, it is recommended to connect a reverse diode between the devices. Cathode Anode 1N4004 ~ 1N4007 or equiv. SSA-S2000V Lock/Alarm I/O CONNECTION Input Connection Door Contact Sensor: Green with red stripes, GND...
  • Page 13 Output Connection EXIT EXIT BUTTON CONTACT DOOR CONTACT AUX IN#1 CHIME +12V SSA-S2000V DOOR ALARM RELAY RELAY PIR SENSOR DOOR ALARM RELAY RELAY Anode Cathode CHIME BELL 1N4004~1N4007 or equiv. +12V DC 12V DOOR LOCK POWER SUPPLY SIREN - Door open (POWER FAIL SAFE) when the power is disconnected from the door lock (Door Relay) Connect the relay COM line (gray with red stripes for locking the door) to DC +12V.
  • Page 14 EXTERNAL READER CONNECTION Wiegand DATA0(Pink) Wiegand DATA0(Sky blue) SSA-S2000V Black- Red+ DC+12V - Proximity Reader Connection Connect the DC 12V(+) of the power supply unit to the plus (+) line of the reader. Connect the GND(-) line of the power supply unit to the minus (-) line of the reader.
  • Page 15 While the product is working normally, the orange LED indicator blinks every one second. Predefi ned Operation for a Registered Card When reading a registered card, it opens the door with the melody. SSA-S2000V Exit Button Operation If you press the Exit button, the door will be opened.
  • Page 16 If you have the Master Card registered, you can use it to initialize the device. Present the Master Card to the device. Press the button twice and press SSA-S2000V The system will restore the factory default settings with all LED indicators blinking. ...
  • Page 17 Press Button and Button in sequence and press SSA-S2000V When the mode is specifi ed, only the green LED indicator fl ashes. Present a card that you want to register as the Master Card to the device. When the Master Card is registered, only the red LED indicator flashes.
  • Page 18 • No flashing of the 3 indicators denotes that the reader mode is already specified. SSA-S2000V Press Button and Button in sequence and press Present a card that you want to register as the Master Card to the device.
  • Page 19 • No flashing of the 3 indicators denotes that the reader mode is already specified. SSA-S2000V Press Button and Button in sequence and press Present a card that you want to register as the Master Card to the device.
  • Page 20 When the device enters Standby, only the red LED indicator fl ashes. Present a card to the device, it will be registered with a beep. SSA-S2000V Repeat this step if you want to register multiple cards. Present the Master card to the device again, and the device will switch to normal mode.
  • Page 21 Button in sequence and press When the mode is specifi ed, only the green LED indicator fl ashes. SSA-S2000V If you enter a user number (4-6 digits) to register and press , the PIN number will be registered with a beep.
  • Page 22 Button in sequence and press When the device enters Standby, only the red LED indicator fl ashes. SSA-S2000V Present a card or PIN number to delete. Repeat this step if you want to register multiple cards or PIN numbers.
  • Page 23 Button in sequence and press Enter the two-digit Duress code and press • SSA-S2000V The default code is set to “00”. However, the number “77” can not be used because it is set for the Secure mode. SSA-S2000V TO SPECIFY THE RETRY COUNT FOR AN UNREGISTERED ID You can specify the retry count for authentication with an unregistered card or PIN.
  • Page 24 Present the Master Card to the device. Press Button and Button in sequence and press Enter the two-digit keypad input suspension time (unit: minute) and press SSA-S2000V • The default is set to “01”. You can specify a time from 01 to 99 minutes. ...
  • Page 25 Present the Master Card to the device. Press Button and Button in sequence and press Enter the two-digit operation time (unit: second) and press SSA-S2000V • The default is set to “00” second, which means the Door Contact Sensor is disabled. •...
  • Page 26 Provide the alarm output port and press • The default is set to “02” (alarm). SSA-S2000V For the alarm output port settings, refer to the output port table on page 28. • The alarm for the dismantled device occurs regardless of the operation mode of either Normal or Secure so you simply specify the operation port only.
  • Page 27 • To release the QUICK mode, repeat Step 1 above, select the < > buttons and press SSA-S2000V • The default is set to “not used”. SSA-S2000V TO SET OR RELEASE THE TOGGLE MODE FOR THE DOOR RELAY In the Toggle mode, the door opens if it is closed or vice versa by presenting a registered card or entering the PIN.

  • Page 28: I/O Time Setup

    Enter the two-digit door open time and press Specify the two-digit TTL output time and press SSA-S2000V • For instance, if you set the door open time to “03” and TTL to “00”, the door relay operates for 3 seconds for an authenticated card ID.

  • Page 29: To Specify The Duress Ttl Output

    Refer to the output port table on page 28 and specify a desired output mode. • If you want the alarm relay alone to operate in normal and Secure modes for SSA-S2000V an unauthenticated card, select the < > buttons and press...

  • Page 30: To Specify The Alarm Operation Time For Aux 1

    Refer to the output port table on page 28 and specify a desired output mode. • If you want the alarm relay alone to operate in normal and Secure modes SSA-S2000V in case of an error from the Door contact Sensor, select the < >...

  • Page 31: To Specify The Alarm Operation Time For Aux 2

    Refer to the output port table on page 28 and specify a desired output mode. • If you want the alarm relay alone to operate in normal and Secure modes in SSA-S2000V case of an input through the auxiliary port, select the <...
  • Page 32 Button in sequence and press • To release the control by the Door contact Sensor, repeat Step 1 above, select the < > buttons and press SSA-S2000V  The default is set to “disabled”. SSA-S2000V 32_ I/O time setup...

  • Page 33: Advanced Setting

    Present the Master Card to the device. Press Button and Button in sequence and press • To release the setting, repeat Step 1 above, select the SSA-S2000V < > buttons and press  The default is set to “switch from HIGH(5V) to LOW(0V)”. SSA-S2000V TO SET THE CHIME BELL FUNCTION You can specify the use of the chime bell.

  • Page 34: To Specify The Chime Bell Operation Time

    Present the Master Card to the device. Press Button and Button in sequence and press SSA-S2000V Specify the two-digit operation time (unit: second) and press  The default is set to “05” second. You can specify a time from 00 to 99 seconds.

  • Page 35: To Specify The Input Mode For Aux 3

    Button in sequence and press • To release the setting, press the < > buttons and press SSA-S2000V  The default is set to “switch from HIGH(5V) to LOW(0V)”. SSA-S2000V TO SPECIFY THE INPUT MODE FOR AUX 3 You can specify an operation for the auxiliary port 3 when it switches from LOW (0V) to HIGH (5V).

  • Page 36: To Specify The Input Mode For The Exit Button

    Button and Button • To release the setting, press the < > buttons and press SSA-S2000V  The default is set to “switch from HIGH(5V) to LOW(0V)”. SSA-S2000V TO SPECIFY THE INPUT MODE FOR THE DOOR CONTACT SENSOR You can specify an operation for the Door Contact Sensor when it switches from LOW (0V) to HIGH (5V).

  • Page 37: Additional Features

    • To release the setting, repeat Step 1 above, select the < > buttons and press SSA-S2000V  By default, it is set to “enabled”. SSA-S2000V TO SPECIFY THE USE OF THE TAMPER ALARM You can maintain the alarm setup in normal operation and release it in case of a service repair requiring the dismantlement of the device.

  • Page 38: To Check The Output Specified For A Registered Card User

    Present the Master Card to the device. Press Button and Button in sequence and press SSA-S2000V SSA-S2000V TO CHECK THE OUTPUT SPECIFIED FOR AN UNREGISTERED CARD USER You can check the output setting that you specifi ed in “To specify the output time if the card is not authenticated”. (See page 29.) Present the Master Card to the device.

  • Page 39: To Check The Output Specified For Aux

    Press Button and Button in sequence and press SSA-S2000V SSA-S2000V TO CHECK THE OUTPUT SPECIFIED FOR AUX 1 You can check the output setting that you specifi ed in “To specify the alarm operation time for AUX 1”. (See page 30.) Present the Master Card to the device.

  • Page 40: To Check The Output Specified For Aux

    Press Button and Button in sequence and press SSA-S2000V SSA-S2000V TO CHECK THE OUTPUT SPECIFIED FOR AUX 3 You can check the output setting that you specifi ed in “To specify the alarm operation time for AUX 3”. (See page 31.) Present the Master Card to the device.

  • Page 41: Other Information

    other information INITIAL VALUES This product operates in the following initial values: For changing the settings or registering/deleting the user card, refer to the applicable section in this document. Entry permitted for a registered card - The door control relay operates for 3 seconds. - The green LED indicator fl...

  • Page 42: Function Codes

    other information FUNCTION CODES Code Number Function Item Additional user card registration (RF CARD ONLY MODE) Additional user card registration (RF CARD ONLY MODE) Additional user card and PIN registration (RF CARD + PIN MODE) Additional user card and PIN registration (RF CARD + PIN MODE) Additional PIN registration (PIN ONLY MODE) Additional PIN registration (PIN ONLY MODE) Delete a registered card or PIN number...
  • Page 43 Code Number Function Item Turn off the sound Turn off the sound Turn on the sound Turn on the sound To specify the keypad input suspension time if the retry count with an unregistered ID exceeds the limit To specify the keypad input suspension time if the retry count with an unregistered ID exceeds the limit Sense if AUX 1 switches from L to H Sense if AUX 1 switches from L to H Sense if AUX 1 switches from H to L...

  • Page 44: Troubleshooting

    - In the initial setup of the product or after it is initialized indicators blinking. Set the operation mode and register the Master card and user cards as usual because the product is in the initial state. SSA-S2000V modes available : Mode Number + ENT RF Only : 01 + ENT √...
  • Page 45 - In the initial setup of the product or after it is initialized Set the operation mode and register the Master card and user cards as usual because the product is in the initial state. SSA-S2000V modes available : Mode Number + ENT RF Only : 01 + ENT √...

  • Page 46: Troubleshooting

    troubleshooting PROBLEM ACTION The user card (or PIN) is not deleted. Check the operation status of the product Check if the product works properly. - If the product operates normally (and you have the Master Card or the PIN number) If you have the card to delete Master Card (or (PIN): 4 ~ 6 digits (Mode 03 or 05) + ENT) √...
  • Page 47 - Ensure that the Exit button is of the NO type. Check if the Exit button works normally. - Check the connection cable between the Exit button and SSA-S2000V for any disconnection or short-circuit. - Try to connect the two lines on the Exit button.
  • Page 48 The connection method may differ depending on the type and operation mode (NO, NC) of the door lock. Check the status of the door lock - Check the connection cable between the door lock and SSA-S2000V for any disconnection or short-circuit. - Check if the door lock works normally.

  • Page 49: Product Specifications

    PRODUCT SPECIFICATIONS Item SSA-S2000V User 512 Users Power / Current DC 12V / Max.180mA Reader Port External Reder Port 1ea : 26bit Wiegand for Exit Reading Time (Card) 30ms Door Open Time 00~99 Sec. (Default 3Sec.) Input Port 5ea : Exit Button, Door Sensor, Aux#1, #2, #3 2ea : 2 Form-C Relay Output (COM, NO, NC) / DC12~18V, Rating Max.2A...
  • Page 50 TEL : +82-70-7147-8740~60 FAX : +82-31-8018-3745 SAMSUNG TECHWIN AMERICA Inc. SAMSUNG TECHWIN EUROPE LTD. 1480 Charles Willard St, Carson, CA 90746, UNITED STATES Samsung House, 1000 Hillswood Drive, Hillswood Business Tol Free : +1-877-213-1222 FAX : +1-310-632-2195 Park Chertsey, Surrey, UNITED KINGDOM KT16 OPS www.samsungcctvusa.com TEL : +44-1932-45-5300 FAX : +44-1932-45-5325 www.samsungsecurity.com...
