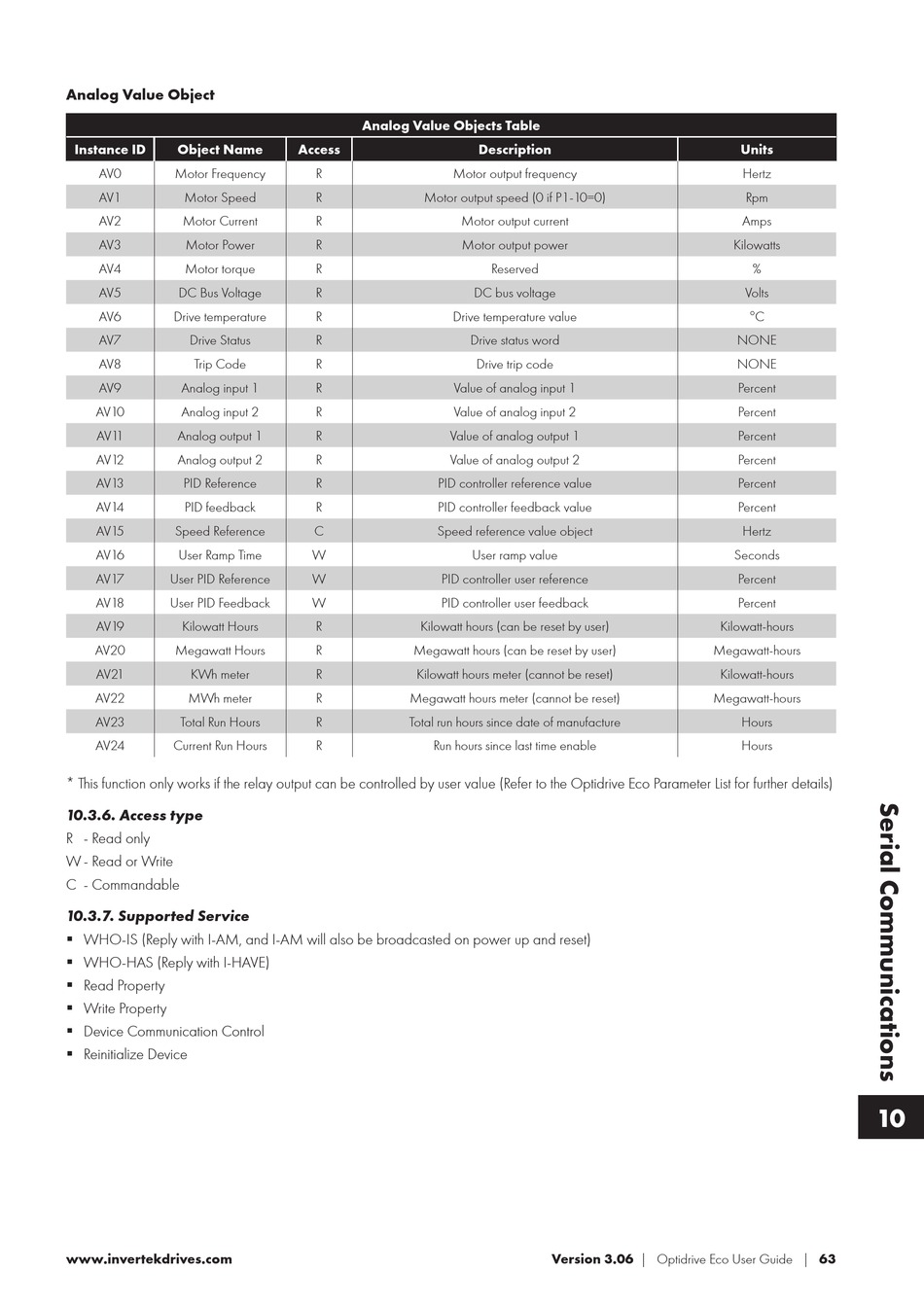

Analog Value Object
Instance ID Object Name
AV0 Motor Frequency
AV1 Motor Speed
AV2 Motor Current
AV3 Motor Power
AV4 Motor torque
AV5 DC Bus Voltage
AV6 Drive temperature
AV7 Drive Status
AV8 Trip Code
AV9 Analog input 1
AV10 Analog input 2
AV1 1 Analog output 1
AV12 Analog output 2
AV13 PID Reference
AV14 PID feedback
AV15 Speed Reference
AV16 User Ramp Time
AV17 User PID Reference
AV18 User PID Feedback
AV19 Kilowatt Hours
AV20 Megawatt Hours
AV21 KWh meter
AV22 MWh meter
AV23 Total Run Hours
AV24 Current Run Hours
* This function only works if the relay output can be controlled by user value (Refer to the Optidrive Eco Parameter List for further details)
10.3.6. Access type
R - Read only
W - Read or Write
C - Commandable
10.3.7. Supported Service
 WHO-IS (Reply with I-AM, and I-AM will also be broadcasted on power up and reset)
 WHO-HAS (Reply with I-HAVE)
 Read Property
 Write Property
 Device Communication Control
 Reinitialize Device
