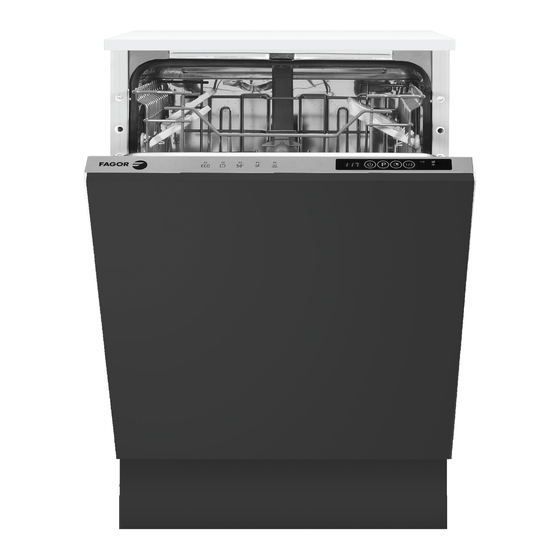

- Page 1 Instruction manual IO-DWS-3135 (06.2021) DISHWASHER 3LVF-42IT Before using the appliance, please carefully read this manual!
-
Page 2: Table Of Contents
CONTENTS 1.SAFETY INSTRUCTIONS ....................1 1.1. General Safety Warnings ....................1 1.2. Installation Warnings .....................2 1.3. During Use........................3 2.INSTALLATION ......................... 6 2.1. Machine Positioning .....................6 2.2. Water Connection ......................6 2.3. Water Inlet Hose ......................6 2.4. Drain Hose........................6 2.5. Electrical Connection ....................7 2.6. - Page 3 8.CLEANING AND MAINTENANCE ................. 18 8.1. Filters ...........................18 8.2. Spray Arms ........................18 8.3. Drain Pump ........................19 9.TROUBLESHOOTING ....................20 10.PRACTICAL INFORMATION ..................23 11.THE PRODUCT FICHE ....................24...
-
Page 4: Safety Instructions
1. SAFETY INSTRUCTIONS 1. General Safety Warnings • Read these instructions carefully before using your appliance and keep this manual for future reference. Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened. -
Page 5: Installation Warnings
2. Installation Warnings • Choose a suitable and safe place to install your machine. • Only original spare parts should be used with the machine. Unplug the machine before installation. Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void. -
Page 6: During Use
pressure exceeds 1 MPa, a pressure relief valve must be fitted between the connection. 3. During Usage • This machine is for domestic use only; do not use • it for other purposes. Commercial use will void the guarantee. Do not stand, sit or place loads on the open door of the dishwasher. - Page 7 the door for one minute after it has opened. For effective drying, keep the door open for 30 minutes after a programme has ended. Do not stand in front of the door after the auto-open signal sounds. In the case of a malfunction, repair should only be performed by an authorised service company, otherwise the warranty will be void.
- Page 8 CE Declaration of Conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. Disposal of your old machine The symbol on the product or on its packaging indicates that this product may not be treated as household waste.
-
Page 9: Installation
2. INSTALLATION WARNING: Use the new water inlet 2.1. Machine positioning hose supplied with your machine, do not use an old machine’s hose. When positioning the machine, place it in an area where dishes can be easily loaded WARNING: Run water through the and unloaded. -
Page 10: Electrical Connection
2.5 Electrical connection WARNING: Your machine is set to operate at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a transformer of 110/220 V and 3000 W between the electrical connection. Connect the product to a grounded outlet protected by a fuse complying with the values in the "Technical Specifications"... -
Page 11: Technical Specifications
3. TECHNICAL SPECIFICATIONS 3.2. Technical specifications 10 place Capacity settings Dimensions � ;;___ - � 2 4----- � 3 (mm) Height 820-870 (mm) Width 450(mm) Depth 550(mm) Net weight 32 kg Operating 220-240V voltage / 50 Hz, frequency Total current 10(A) 3.1. -
Page 12: Before Using The Appliance
4. BEFORE USING THE APPLIANCE 4.1. Preparing your dishwasher for first use • Make sure the electricity and supply water specifications match the values indicated in the installation instructions for the machine. • Remove all packaging material inside the machine. •... -
Page 13: Test Strip
4.4. Test strip Run water Keep the Shake the Wait Set the hardness level of through the strip in the strip. (1min.) your machine. tap (1min.) water (1sec) NOTE: The level is set to 3 as default. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices. -
Page 14: Filling The Detergent
Continued use of too much detergent may washed clean. cause machine damage. If rinse aid dosage setting set too height, Using little detergent can result in poor you can see bluish layers on glass and cleaning and you can see whitish streaksin dishes. -
Page 15: Loading Your Dishwasher
5. LOADING YOUR WARNING: To avoid any possible DISHWASHER injuries, place long-handle and sharp- pointed knives with their sharp points facing down or horizontally on the baskets. For best results, follow these loading guidelines. Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings. - Page 16 Upper Basket Top basket Height adjustment Dish rack Turn the Rail Stop Clips, at the ends of the rails, to the sides to open them (as shown in Upper basket racks have two positions: the image below), then pull out and remove open (a) and closed (b).
-
Page 17: Alternative Basket Loads
5.2. Alternative Basket Incorrect Loads Loads Lower Basket Top Basket Important Note for Test Laboratories For detailed information required for tests according to EN normatives and a softcopy of the manual, please send the model name and serial number to the following address: dishwasher@standardtest.info Incorrect Loads... -
Page 18: Programme Table
6. PROGRAMME TABLE Program Intensive 65°C Auto Super 50’ Quick 30’ Prewash Name: Standard program for Suitable for normally normally Suitable for Suitable to soiled daily Suitable for Auto program soiled daily lightly soiled rinse dishes Type of Soil: using dishes heavily soiled for heavily dishes... -
Page 19: The Control Panel
7. THE CONTROL PANEL NOTE: If you decide not to start the selected programme, please see the "Changing a Programme" and "Cancelling a Programme" sections. NOTE: When there is insufficient 1. On/Off button softening salt, the Salt Lack Warning Indicator (ii) will illuminate to indicate the 2. -
Page 20: Cancelling A Programme
7.2. Cancelling a Programme Buzzer Sound Control Follow the steps below if you would like to To change the buzzer sound level, follow cancel a programme while in operation. the below steps: 1. Open the door and press Programme (2) and Delay (4) buttons simultaneously for 3 Open the door of your machine. -
Page 21: Cleaning And Maintenance
8. CLEANING AND To remove and clean the filter combination, turn it counter clockwise and remove it by MAINTENANCE lifting it upwards (1).Pull the coarse filter out of the micro filter (2).Then pull and remove Cleaning your dishwasher is important to the metal filter (3).Rinse the filter with lots of maintain the machine’s service life water until it is free of residue. -
Page 22: Drain Pump
8.3 Drain Pump Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter. Warning Risk of cuts! When cleaning the waste water pump, ensure that you do not injure yourself on pieces of broken glass or pointed implements. -
Page 23: Troubleshooting
9. TROUBLESHOOTING FAULT POSSIBLE CAUSE TROUBLESHOOTING Your Dishwasher is not plugged in. Plug your Dishwasher in. Switch your Dishwasher on by pressing the Your Dishwasher is not switched on. On/Off button. Fuse blown. Check your indoor fuses. The programme does not start. - Page 24 FAULT POSSIBLE CAUSE TROUBLESHOOTING Use the correct amount of detergent, as Not enough detergent used. instructed in the programme table. Rinse aid dosage and/or water Increase rinse aid and/or water softener softener setting set too low. level. Whitish stains remains on dishes.
- Page 25 AUTOMATIC FAULT WARNINGS AND WHAT TO DO TROUBLE POSSIBLE FAULT WHAT TO DO CODE Make sure the water inlet tap is open and water is flowing. Separate the inlet hose from the tap and clean the filter of Water inlet system failure the hose.
-
Page 26: Practical Information
10. PRACTICAL INFORMATION 1. When the machine isn’t in operation: • Disconnect the plug and close the tap. • Leave the door slightly open to prevent odour formation. 2. Select the dry option to remove water droplets. 3. Place dishes in the machine properly to achieve the best energy consumption, washing and drying performance. -
Page 27: The Product Fiche
For more information about the product, please refer to the EU EPREL Product Database at https://eprel.ec.europa.eu. For more information, please use your mobile device to scan the QR code on the energy label or enter the product model listed on the energy label in the EPREL search engine https://eprel.ec.europa.eu/ WARRANTY AND AFTER SALES SERVICE...
