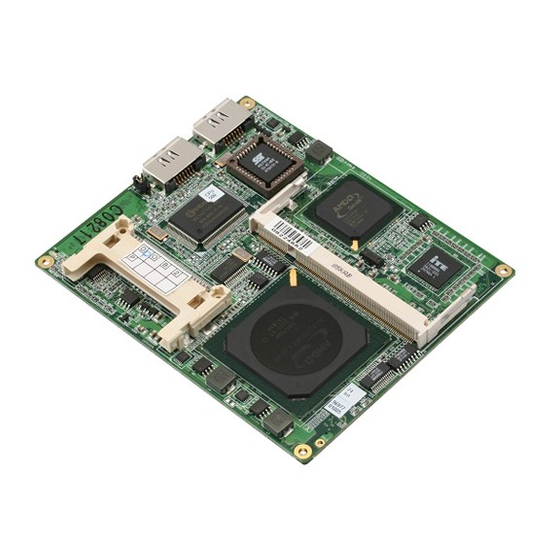

Aaeon ETX-700 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
E T X C P U M o d u l e
E T X - 7 0 0 R e v . B
ETX-700 Rev.B
AMD Geode
LX Processors
ETX CPU Module
With LCD, Ethernet,
Audio, PCI
ETX-700 Manual Rev. B 2nd Ed.
Sept. 2010

Advertisement

Table of Contents
loading

Related Manuals for Aaeon ETX-700

Summary of Contents for Aaeon ETX-700

  • Page 1 E T X C P U M o d u l e E T X - 7 0 0 R e v . B ETX-700 Rev.B AMD Geode LX Processors ETX CPU Module With LCD, Ethernet, Audio, PCI ETX-700 Manual Rev. B 2nd Ed. Sept. 2010...
  • Page 2 AAEON assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. AAEON reserves the right to make changes in the product design without notice to its users.
  • Page 3 E T X C P U M o d u l e E T X - 7 0 0 R e v . B Acknowledgments All other products’ name or trademarks are properties of their respective owners. Award is a trademark of Award Software International, Inc. CompactFlash™...
  • Page 4 Before you begin installing your card, please make sure that the following materials have been shipped: • 1 ETX-700 Rev.B CPU Module • 1 CD-ROM for manual (in PDF format) and drivers If any of these items should be missing or damaged, please...
  • Page 5 VGA first. Then, adjust the PCI graphic add-on card to be the primary in the OS. After re-booting, you can use the VGA through PCI graphic add-on card normally. For more details, please contact with AAEON AE Department for help.

  • Page 6: Table Of Contents

    E T X C P U M o d u l e E T X - 7 0 0 R e v . B Contents Chapter 1 General Information 1.1 Introduction..............1-2 1.2 Features ..............1-3 1.3 Specifications ............1-4 Chapter 2 Quick Installation Guide 2.1 Safety Precautions ............
  • Page 7 E T X C P U M o d u l e E T X - 7 0 0 R e v . B 4.2 Necessary to know ..........4-3 4.3 Installing VGA Driver ..........4-4 4.4 Installing AES Driver ..........4-5 4.5 Installing PCI to ISA Bridge Driver ......

  • Page 8: Chapter 1 General Information

    E T X C P U M o d u l e E T X - 7 0 0 R e v . B Chapter General Information 1 - 1 Chapter 1 General Information...

  • Page 9: Introduction

    E T X - 7 0 0 R e v . B 1.1 Introduction AAEON announced the new Embedded Technology eXtended (ETX) product – ETX-700 Rev.B, which is based on the AMD LX processor combined with AMD CS5536 chipset. ETX-700 Rev.B can provide common PC peripheral functions such as graphics, USB, serial, parallel ports, keyboard/mouse, Ethernet, and IDE.

  • Page 10: Features

    E T X C P U M o d u l e E T X - 7 0 0 R e v . B 1.2 Features ETX Form Factor AMD Geode LX Series Processors AMD CS5536 (Southbridge) Non-ECC DDR 333/400 Memory CRT/ LVDS LCD/ TTL LCD 10/100 Base-TX Ethernet AC97 Audio CODEC...

  • Page 11: Specifications

    E T X C P U M o d u l e E T X - 7 0 0 R e v . B 1.3 Specifications System Onboard AMD Geode LX Series Processor Memory One DDR SODIMM, supports non-ECC DDR 333/400 up to 1GB Chipset AMD CS5536 Ethernet...
  • Page 12 Resolution Up to 1920x1440@32bpp at 85Hz (CRT); Up to 1600x1200@32bpp at 100Hz (CRT); Up to 1600x 1200 @32bpp at 60Hz (LCD) LCD Interface TF-ETX-700-B10: 18/24-bit TTL TF-ETX-700-B10-01: 18-bit LVDS TF-ETX-700-B10-02: 24-bit LVDS Chipset Winbond W83627HG IDE Channel x 1 Parallel Port/FDD...
  • Page 13 E T X C P U M o d u l e E T X - 7 0 0 R e v . B Chapter Quick Installation Guide Notice: The Quick Installation Guide is derived from Chapter 2 of user manual. For other chapters and further installation instructions, please refer to the user manual CD-ROM that came with the product.

  • Page 14: Safety Precautions

    E T X C P U M o d u l e E T X - 7 0 0 R e v . B 2.1 Safety Precautions Always completely disconnect the power cord from your board whenever you are working on it. Do not make connections while the power is on, because a sudden rush of power can damage sensitive electronic components.

  • Page 15: Location Of Connectors And Jumpers

    E T X C P U M o d u l e E T X - 7 0 0 R e v . B 2.2 Location of Connectors and Jumpers Component Side Solder Side 2 - 3 Chapter 2 Quick Installation Guide...

  • Page 16: Mechanical Drawing

    E T X C P U M o d u l e E T X - 7 0 0 R e v . B 2.3 Mechanical Drawing Component Side Solder Side 2 - 4 Chapter 2 Quick Installation Guide...

  • Page 17: List Of Jumpers

    E T X C P U M o d u l e E T X - 7 0 0 R e v . B 2.4 List of Jumpers Jumpers allow users to manually customize system configurations to their suitable application needs. The following chart consist the list of each jumper function: Label Function...

  • Page 18: Lcd Clock Selection (Jp1)

    E T X C P U M o d u l e E T X - 7 0 0 R e v . B 2.6 LCD Clock Selection (JP1) Function Normal (Default) Shift Clock 2.7 CompactFlash Disk Slot (CFD1) Signal Signal Ground Ground...
  • Page 19 E T X C P U M o d u l e E T X - 7 0 0 R e v . B DREQ DACK# DASP# PDIAG# IO16# Ground Ground 2 - 7 Chapter 2 Quick Installation Guide...

  • Page 20: Etx-1 Connector (J2)

    E T X C P U M o d u l e E T X - 7 0 0 R e v . B 2.8 ETX-1 Connector (J2) Signal Signal S ignal Signal PCICLK3 PCICLK4 SERR# PERR# PCICLK1 PCICLK2 PCI_PME USB2N REQ3# GNT3#...

  • Page 21: Etx-2 Connector (J3)

    E T X C P U M o d u l e E T X - 7 0 0 R e v . B 2.9 ETX-2 Connector (J3) Signal Signal Signal Signal SD14 SD15 IRQ5 SD13 MASTER# IRQ6 SD12 DREQ7 IRQ7 SD11 DACK7#...
  • Page 22 E T X C P U M o d u l e E T X - 7 0 0 R e v . B 2.10 ETX-3 Connector (J4) Signal Signal S ignal Signal LPT/FLP# BLUE HSYNC GREEN STB# AFD# VSYNC CRT_CLK CRT_DAT IRRX...

  • Page 23: Etx-4 Connector (J5)

    E T X C P U M o d u l e E T X - 7 0 0 R e v . B 2.11 ETX-4 Connector (J5) Signal Signal S ignal Signal PIDE_IOR# 5V_SB RSTIN# PIDE_IOW# PS_ON SPEAKER PIDE_DRQ PWRBTN# VBAT PIDE_D15...
  • Page 24 E T X C P U M o d u l e E T X - 7 0 0 R e v . B Below Table for China RoHS Requirements 产品中有毒有害物质或元素名称及含量 AAEON Main Board/ Daughter Board/ Backplane 有毒有害物质或元素 部件名称 铅...

  • Page 25: Chapter 3 Award Bios Setup

    E T X C P U M o d u l e E T X - 7 0 0 R e v . B Chapter Award BIOS Setup Chapter 3 Award BIOS Setup...
  • Page 26 The CMOS memory has lost power and the configuration information has been erased. The ETX-700 Rev.B memory has an integral lithium battery backup for data retention. However, you will need to replace the complete unit when it finally runs down.
  • Page 27 E T X C P U M o d u l e E T X - 7 0 0 R e v . B 3.2 Award BIOS Setup Awards BIOS ROM has a built-in Setup program that allows users to modify the basic system configuration. This type of information is stored in battery-backed CMOS RAM so that it retains the Setup information when the power is turned off.
  • Page 28 Save CMOS value changes to CMOS and exit setup. Exit Without Saving Abandon all CMOS value changes and exit setup. For more detailed information, you can refer to the "AAEON BIOS Item Description.pdf" file in the CD for the meaning of each setting in this chapter.

  • Page 29: Chapter 4 Driver Installation

    E T X C P U M o d u l e E T X - 7 0 0 R e v . B Chapter Driver Installation Chapter 4 Driver Installation...

  • Page 30: Software Drivers

    E T X C P U M o d u l e E T X - 7 0 0 R e v . B 4.1 Software Drivers This chapter describes the operation and installation of the display drivers supplied on the Supporting CD-ROM that are shipped with your product.

  • Page 31: Necessary To Know

    E T X C P U M o d u l e E T X - 7 0 0 R e v . B 4.2 Necessary to Know The instructions in this manual assume that you understand elementary concepts of MS-DOS and the IBM Personal Computer. Before you attempt to install any driver from the Supporting CD-ROM, you should: Know how to copy files from a CD-ROM to a directory on the...

  • Page 32: Installing Vga Driver

    E T X C P U M o d u l e E T X - 7 0 0 R e v . B 4.3 Installing VGA Driver Win XP / Win XPe VGA Place the Driver CD-ROM into your CD-ROM drive and follow the steps below to install.

  • Page 33: Installing Aes Driver

    E T X C P U M o d u l e E T X - 7 0 0 R e v . B 4.4 Installing AES Driver Win XP / Win XPe AES Place the Driver CD-ROM into your CD-ROM drive and follow the steps below to install.

  • Page 34: Installing Pci To Isa Bridge Driver

    E T X C P U M o d u l e E T X - 7 0 0 R e v . B 4.5 Installing PCI to ISA Bridge Driver Win XP / Win XPe System Place the Driver CD-ROM into your CD-ROM drive and follow the following steps to install.

  • Page 35: Installing Ethernet Driver

    E T X C P U M o d u l e E T X - 7 0 0 R e v . B 4.6 Installing Ethernet Driver 1. Click on the Step 4 –LAN folder 2. Double click on the Setup.exe file located in the folder 3.

  • Page 36: Installing Audio Driver

    E T X C P U M o d u l e E T X - 7 0 0 R e v . B information. After you have made your selections and the configuration is what you want, press <ESC>. A prompt will appear asking if you want to save the configuration.
  • Page 37 E T X C P U M o d u l e E T X - 7 0 0 R e v . B 8. Click on Next 9. Select Search for a suitable driver…, then click on Next 10. Select Specify a location, then click on Next 11.

  • Page 38: Appendix A Programming The Watchdog Timer

    E T X C P U M o d u l e E T X - 7 0 0 R e v . B Appendix Programming the Watchdog Timer Appendix A Programming the Watchdog Timer...

  • Page 39: Programming

    E T X C P U M o d u l e E T X - 7 0 0 R e v . B A.1 Programming ETX-700 Rev.B utilizes W83627EHG chipset as its watchdog timer controller. Below are the procedures to complete its configuration and...
  • Page 40 E T X C P U M o d u l e E T X - 7 0 0 R e v . B (2) Modify the data of configuration registers (3) Exit the W83627EHG config Mode. Undesired result may occur if the config Mode is not exited normally.
  • Page 41 E T X C P U M o d u l e E T X - 7 0 0 R e v . B = 01 Power LED pin is drived low. = 10 Power LED pin is a 1Hz toggle pulse with 50 duty cycle.
  • Page 42 E T X C P U M o d u l e E T X - 7 0 0 R e v . B second/minutes WatchDog Timer Register III (Index=F7h, Default=00h) Bit 7 : Mouse interrupt reset Enable or Disable Watchdog Timer is reset upon a Mouse interrupt Watchdog Timer is not affected by...

  • Page 43: W83627Ehg Watchdog Timer Initial Program

    E T X C P U M o d u l e E T X - 7 0 0 R e v . B A.2 W83627EHG Watchdog Timer Initial Program Example: Setting 10 sec. as Watchdog timeout interval ;/////////////////////////////////////////////////////////////////////////////////////////////// Mov dx,2eh ;Enter W83627EHG config mode Mov al,87h (out 87h to 2eh twice)
  • Page 44 E T X C P U M o d u l e E T X - 7 0 0 R e v . B ;/////////////////////////////////////////////////////////////////////////////////////////////// Dec dx Mov al,0f5h ;CRF5 (PLED mode register) Out dx,al Inc dx In al,dx And al,not 08h ;Set second as counting unit Out dx,al ;///////////////////////////////////////////////////////////////////////////////////////////////...

  • Page 45: Appendix B I/O Information

    E T X C P U M o d u l e E T X - 7 0 0 R e v . B Appendix I/O Information B - 1 Appendix B I/O Information...

  • Page 46: I/O Address Map

    E T X C P U M o d u l e E T X - 7 0 0 R e v . B B.1 I/O Address Map B - 2 Appendix B I/O Information...

  • Page 47: St Mb Memory Address Map

    E T X C P U M o d u l e E T X - 7 0 0 R e v . B B.2 1 MB Memory Address Map B.3 IRQ Mapping Chart B - 3 Appendix B I/O Information...

  • Page 48: Dma Channel Assignments

    E T X C P U M o d u l e E T X - 7 0 0 R e v . B B.4 DMA Channel Assignments B - 4 Appendix B I/O Information...
