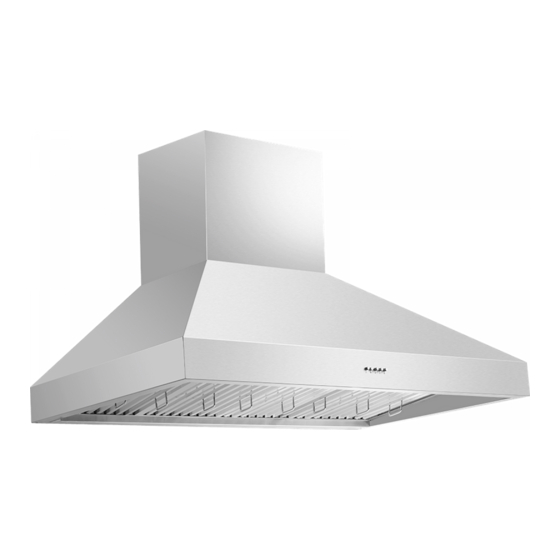

RANGEHOOD & INSTALLATION GUIDE
CL8812
www.schweigen.com.au
Revision V2 01/31/20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CL8812 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Schweigen CL8812

  • Page 1 RANGEHOOD & INSTALLATION GUIDE CL8812 www.schweigen.com.au Revision V2 01/31/20...
  • Page 2 Index Welcome Your State Regulatory Authority Important Safety Information Before Installation Product Use Ducted or Recirculating? Electrical Cord Description Rangehood 4. Operation Push Button Control Panel Speed Control Cleaning & Maintenance Surfaces Filters Cleaning the Interior Cleaning the Exterior Replacing the Light Bulb Installation Rangehood Size vs Cooktop Size BBQ Installation...
  • Page 3 Please help us to continue this effort to protect the environment by using the appliance efficiently and dispose of the packaging in a responsible manner. We trust that you will enjoy your new Schweigen rangehood. Your State Regulatory Authority Different Australian states have varying legislative requirements for the installation of rangehood ducting.
  • Page 4 2. Important Safety Information WARNING Please read this section thoroughly before attempting to operate the appliance. Inspect your product upon receipt. Any damage or defects MUST be reported within 48 hours, or no claim will be recognised. DO NOT INSTALL THIS APPLIANCE IF YOU FIND IT DAMAGED. If this product is installed damaged, neither the supplier, nor the retailer, will be responsible for the costs associated with the repair, replacement, removal or re-installation of the appliances.
  • Page 5: Before Installation

    19. Never cook foodstuff directly over the flame or have the gas burners on under the rangehood without using cookware. Before Installation 1. We recommend this appliance be installed or repaired by a qualified Schweigen Home Appliances technician. 2. Please see our website www.schweigen.com.au for recommended installers.
  • Page 6: Product Use

    2. Important Safety Information Product Use This product is designed for household use and should not be used for commercial applications. After use, always ensure that all controls are in the “OFF” position. When frying with a gas flame, take particular care not to allow the oil or grease in the pan to catch fire.
  • Page 7: Range Hood

    3. Description Rangehood 1. Mounting Bracket 2. Upper Flue 3. Lower Flue 4. 2x 150mm ducting 5. Power Cord 6. 2x 150mm outlets 7. Rangehood Body 8. Lights 9. Baffle Filters NOTE: Filter and light quantity may vary from model to model. Page 7...
  • Page 8: Push Button Control Panel

    4. Operation Push Button Control Panel Turn off the rangehood High speed setting Medium speed setting Low speed setting Turn on/off the lamp Speed Control This undermount is equipped with a 3 speed mechanical control. Speed control usage suggestions: • Low speed for simmering. •...
  • Page 9: Cleaning The Interior

    5. Cleaning & Maintenance Warning Always switch off and disconnect power before cleaning. Cleaning the Interior Clean the interior of the rangehood with a damp cloth and a neutral detergent or denatured alcohol. NOTE: Do not use denatured alcohol on the exterior of the rangehood. Do not clean the electric parts or the motor with liquids or solvents Cleaning the Exterior We recommended using a soft cloth, water and a liquid soap, rinsing it well and then drying it thoroughly.
  • Page 10 5. Cleaning & Maintenance Baffles For this appliance to function effectively, regular maintenance is a must. • The function of the baffle is to collect the grease particles given off during cooking. • Clogged heavy oil deposits restrict airflow and may cause the motor to overheat and become a fire hazard.
  • Page 11: Replacing The Light Bulb

    5. Cleaning & Maintenance Replacing the Light Bulb Danger Always switch off and disconnect the power cord before replacing any light bulbs. Failure to do so may cause serious injury. Please be aware that the light bulb will retain heat for a short period of time after being switched off.
  • Page 12: Bbq Installation

    6. Installation Rangehood Size vs Cooktop Size In addition to the size, the height of the rangehood above the cooktop is important to obtain the best performance. INADEQUATE ADEQUATE OPTIMAL Rangehood smaller than Rangehood same size as Rangehood larger than cooking zone cooking zone cooking zone...
  • Page 13 *IMPORTANT: If the user decides to install the rangehood at a distance of less than minimum height above the cooking surface, Schweigen declines responsibility for damages suffered by the rangehood due to excess heat or damage to objects, people and others caused directly or indirectly by a malfunction, breakage or fire.
  • Page 14: Wall Mount Installation

    6. Installation _n_. _LH Section_ Wall Mount Installation There are two primary mounting points and several secondary mounting points to firmly fix the rangehood in place. Suitable fixing screws must be used to mount the appliance on a secure surface. Please ensure that the holes for the two primary mounting points are level before installation.
  • Page 15 _n_. _RH Section_ 6. Installation DANGER Always switch off and disconnect the power supply before installing the rangehood. Failure to do so may cause serious injury. NOTE Please make sure that filters are removed and put in a safe place while installing rangehood to prevent damage.
  • Page 16 6. Installation Step 3 Place flue covers on the rangehood and extend to the length required. (Be careful not to scratch the top of the rangehood). PLEASE NOTE: Only a standard length of stainless steel flue is provided. Any additional length will need to be sourced and manufactured by a sheet metal fabricator.
  • Page 17 6. Installation Ducting Please DO NOT crush or kink the ducting. 1. Crushed or kinked ducting creates sharp corners that creates turbulence. This reduces the size and efficiency of the ducting, lowers extraction and may cause excessive noise. 2. Sweeping curves and taut ducting reduces resistance and turbulence.
  • Page 18 6. Installation Ducting Advice Straight ducting is the most effective installation Keep the curves or bends to a minimum. If they do exist, try to keep the angles as open as possible. Never reduce flue diameter right next Never fit reductions next to curves or bends in to the rangehood outlet fitting.
  • Page 19: Roof Cowls / Roof Seal Kit

    6. Installation Roof Cowls / Roof Seal Kit WARNING All electrical wiring should be kept inside the roof space. 1. Roof Cowls (Not supplied)* 2. Flexible Ducting must be pulled taut. DO NOT crush or kink the ducting. 3. Connect flexible ducting to the outlet on rangehood using a ring clamp.
  • Page 20: Troubleshooting

    7. Troubleshooting Troubleshooting If the product does not work: Before you contact the technical service department, make sure that the product is plugged in, the electric fuse (on selected models) is in correctly and electric wiring is connected. (Fuses can be purchased from your local electrical dealer or hardware store).
  • Page 21: Faulty Installation

    0800 200 510 Faulty Installation It is not the responsibility of Schweigen to rectify any incorrect installations. A service call out fee will be charged for any Schweigen technician that attends a call, whereby it is established that the fault is due to an incorrect installation or non-manufacturing fault. Should the appliance be installed in such a way that the service agent is unable to gain access to the appliance, the person/s who own the premises or the property where the appliance resides —...
  • Page 22: Technical Specifications

    8. Specifications Dimensions 1200 Technical Specifications Model CL8812 Feeding Voltage 220–240V 50Hz Lamp Power — LED (W) 2 x 3.5W Page 22...
  • Page 23 All information supplied is to be used for general reference purposes only and is on the understanding that Schweigen will not be liable for any loss, liability or damage of whatever kind arising as a result of any reliance upon such information. All pictures used in the guide are for illustrative purposes only.
