RANGEHOOD & INSTALLATION GUIDE
CLUM212S / CLUM212BS
CLUM215S / CLUM215BS
www.schweigen.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLUM212S and is the answer not in the manual?

Questions and answers

Summary of Contents for Schweigen CLUM212S

  • Page 1 RANGEHOOD & INSTALLATION GUIDE CLUM212S / CLUM212BS CLUM215S / CLUM215BS www.schweigen.com.au...
  • Page 2 Index Welcome Your State Regulatory Authority Important Safety Information Before Installation Product Use Electrical Cord Description Rangehood 4. Operation Touch Button Control Panel Remote Control Using the ON/OFF Button Speed Control Cleaning & Maintenance Cleaning the Interior Cleaning the Exterior Baffles Replacing the Light Installation...
  • Page 3 The guide contains important information on the use and maintenance of the unit, as well as important safety notes. This will ensure your personal safety and the lasting value of your rangehood. We trust that you will enjoy your new Schweigen rangehood. Please always retain your proof of purchase to aid in any warranty queries.
  • Page 4 2. Important Safety Information WARNING Please read this section thoroughly before attempting to operate the appliance. Inspect your product upon receipt. Any damage or defects MUST be reported within 48 hours, or no claim will be recognised. DO NOT INSTALL THIS APPLIANCE IF YOU FIND IT DAMAGED. If this product is installed damaged, neither the supplier, nor the retailer, will be responsible for the costs associated with the repair, replacement, removal or re-installation of the appliances.
  • Page 5: Before Installation

    1. We recommend this appliance be installed or repaired by an experienced Home Appliances technician. 2. Please see our website www.schweigen.com.au for experienced installers. 3. It is dangerous to modify any part of this appliance. Modification of any kind, will immediately void the warranty.
  • Page 6: Product Use

    2. Important Safety Information Product Use This product is designed for household use and should not be used for commercial applications. After use, always ensure that all controls are in the “OFF” position. When frying with a gas flame, take particular care not to allow the oil or grease in the pan to catch fire.

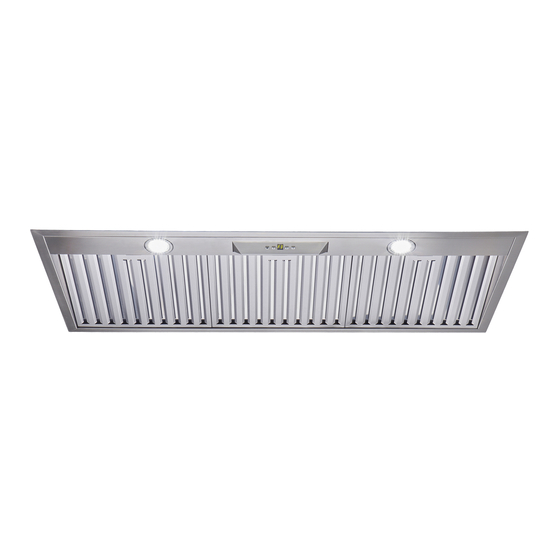

  • Page 7: Range Hood

    Use this as a guide only when designing your cabinet. We advise you to take the rangehood to your cabinet maker so they can tailor the cabinet to fit correctly. CLUM212S: 1166mm / CLUM215S: 1470mm approx. Dimensions may be subject to change.
  • Page 8 4. Operation T O U C H B U T T O N C O N T R O L P A N E L Remote control sensor Fan speed setting Turn light on/off Turn rangehood on/off R E M O T E C O N T R O L As well as the touch buttons, this rangehood comes with a remote control to operate the rangehood.
  • Page 9: Cleaning The Interior

    5. Cleaning & Maintenance Warning Always switch off and disconnect power before cleaning. Cleaning the Interior Clean the interior of the rangehood with a damp cloth and a neutral detergent or denatured alcohol. NOTE: Do not use denatured alcohol on the exterior of the rangehood. Do not clean the electric parts or the motor with liquids or solvents Cleaning the Exterior We recommended using a soft cloth, water and a liquid soap, rinsing it well and then drying it thoroughly.
  • Page 10 5. Cleaning & Maintenance Baffles For this appliance to function effectively, regular maintenance is a must. • The function of the baffle is to collect the grease particles given off during cooking. • Clogged heavy oil deposits restrict airflow and may cause the motor to overheat and become a fire hazard.
  • Page 11: Replacing The Light

    5. Cleaning & Maintenance Replacing the Light Danger Always switch off and disconnect the power cord before replacing any light bulbs. Failure to do so may cause serious injury. Please be aware that the light bulb will retain heat for a short period of time after being switched off.
  • Page 12: Bbq Installation

    6. Installation Rangehood Size vs Cooktop Size In addition to the size, the height of the rangehood above the cooktop is important to obtain the best performance. INADEQUATE ADEQUATE OPTIMAL Rangehood smaller than Rangehood same size as Rangehood larger than cooking zone cooking zone cooking zone...
  • Page 13 *IMPORTANT: If the user decides to install the rangehood at a distance of less than minimum height above the cooking surface, Schweigen declines responsibility for damages suffered by the rangehood due to excess heat or damage to objects, people and others caused directly or indirectly by a malfunction, breakage or fire.
  • Page 14 SIDE VIEW FRONT VIEW 6. Installation Mounting Points for Body The diagrams below are a guide for all mounting points. SIDE VIEW FRONT VIEW WARNING Please remove filters before installation. Failure to do so may damage the clips. DANGER Always switch off and disconnect the power supply before installing the rangehood. Failure to do so may cause serious injury.
  • Page 15: Installation Example

    TOP VIEW _n_. _RH Section_ 6. Installation Installation Example FRONT VIEW BOTTOM VIEW Step 1 Insert support frame into cabinet. The support will only be needed in certain circumstances. NOTE: The support frame is not included. The requirement of a support frame is dependent SIDE VIEW SIDE VIEW on the type and location of installation.
  • Page 16: Isodrive ® Motor Setup

    6. Installation _n_. _LH Section_ Ducting Please DO NOT crush or kink the ducting. 1. Crushed or kinked ducting creates sharp corners that creates turbulence. This reduces the size and efficiency of the ducting, lowers extraction and may cause excessive noise. 2.
  • Page 17 6. Installation Single Isodrive Motor Installation ® 1. Isodrive Motor ® 2. Roof Seal Kit (Dektite) (Not supplied)* 3. Support Straps (Not supplied)* 4. Isodrive Motor Power Lead (Plug) ® 5. Rangehood to Isodrive Motor Lead (Socket) ® 200mm 6. Multi-fit Y-Joint, cut to 250 x 200 x 200mm Flexi Duct 7.
  • Page 18 6. Installation Twin Isodrive Motor Installation ® 1. Isodrive Motors ® 2. Roof Seal Kit (Dektite) (Not supplied)* 3. Support Straps (Not supplied)* 4. Attach Duct to Bell-Mouth Adaptor using ring clamp. Please DO NOT rip the ducting. 5. Isodrive Motor Power Lead (Plug) ®...
  • Page 19 6. Installation Optional Wall Mounted Motor Installation The Isodrive motor can optionally be installed mounted to a wall if a roof mount is not possible. The construction of a bulkhead is also recommended. The position of the motor can be to an external wall as shown above, or to the same external wall as the rangehood is mounted, as shown below.
  • Page 20 7. Troubleshooting Before you contact the technical service department, make sure that the product is plugged in and power is supplied. • Do not take any action that will damage the product. IMPORTANT Never attempt to repair this appliance by yourself. Always refer to a qualified Service Technician.
  • Page 21: Faulty Installation

    0800 200 510 Faulty Installation It is not the responsibility of Schweigen to rectify any incorrect installations. A service call out fee will be charged for any Schweigen technician that attends a call, whereby it is established that the fault is due to an incorrect installation or non-manufacturing fault. Should the appliance be installed in such a way that the service agent is unable to gain access to the appliance, the person/s who own the premises or the property where the appliance resides —...
  • Page 22: Technical Specifications

    NOTE: Filter and light quantity may vary from model to model. Technical Specifications Model CLUM212S / CLUM212BS / CLUM215S / CLUM215BS Feeding Voltage 220–240V 50Hz CLUM212S: 2 x 3 W /CLUM215S: 4 x 3W Lamp Power — LED (W) ILCOS Code DRR-3-H-GU10-51/55 Page 22...
  • Page 23 All information supplied is to be used for general reference purposes only and is on the understanding that Schweigen Home Appliances will not be liable for any loss, liability or damage of whatever kind arising as a result of any reliance upon such information.
  • Page 24 Australia Unit 4/1-5 Lake Drive, Dingley Village, Victoria 3172. Phone 1300 881 693 Email sales@schweigen.com.au Web www.schweigen.com.au New Zealand 5 Tolich Place, Henderson, Auckland 0610. Phone 0800 200 510 Email info.parex@emerson.com Web www.parex.co.nz Revision V3 07/08/23...

This manual is also suitable for:

Clum212bsClum215sClum215bs
