- Page 1 RANGEHOOD & INSTALLATION GUIDE CL8812 Revision V2 www.schweigen.com.au (04.2017/v2.0)
-
Page 2: Welcome
Upon collection or delivery of your appliance, any damage or defects must be reported within 48 hours to your retailer or Schweigen Customer Service, in order to recognise any claim. The manufacturer reserves the right to introduce product improvements, which do not affect the operation of the appliance. -
Page 3: Table Of Contents
Table of Contents 1. Welcome ____________________________________________________________________ 2 2. Important safety information ___________________________________________________ 4 3. Description __________________________________________________________________ 7 4. Installation __________________________________________________________________ 8 5. Maintenance ________________________________________________________________ 13 6. Specifications _______________________________________________________________ 18 7. Disclaimer __________________________________________________________________ 19 Page 3... -
Page 4: Important Safety Information
2. Important safety information Please read the instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual for future use or for subsequent owners. Check the appliance for damage after unpacking it. Do not connect or install the appliance if it has been damaged in transport. -
Page 5: Before Installation
Check that the indicated instructions and local regulations are met and carried out by a qualified technician, using materials that are complaint with the applicable legislation. Schweigen will not be responsible for any installations executed by non-qualified technicians that fail to heed the applicable legislation on electrical safety. -
Page 6: Product Use
2. Important safety information Product Use The Rangehood has one mode of operation: Air extraction: The air is drawn in by the rangehood, filtered through the grease filters, and then expelled outside. Please check the cleaning and maintenance section for advice on the filter’s cleaning schedule. This product is designed for household use and must not be used for commercial applications. -
Page 7: Description

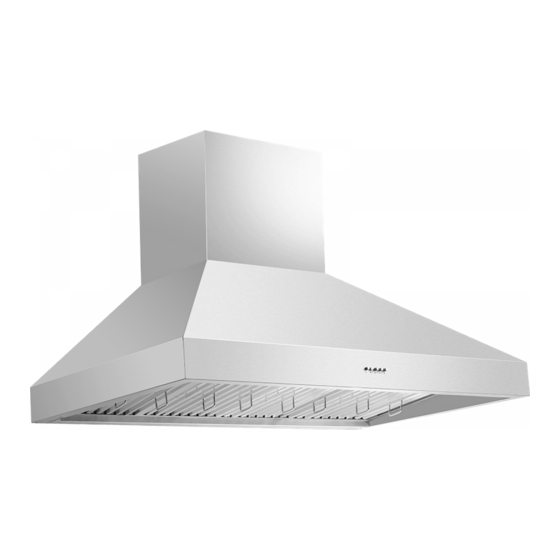

3. Description Main Rangehood Mounting Bracket Power Cord Upper Flue Lower Flue Pipe Outlet (150mm) Body Lamp (GU 10 fitting) Switch Motor Baffle Filter NOTE: Filter and light quantity may vary from model to model. Push Button Control Panel Turn on/off the rangehood Low speed setting Medium speed setting High speed setting... -
Page 8: Installation
750 to 800mm Installation height for Induction Cooktop Notes Type of Cooktop Min. Height* Max. Height * Schweigen’s recommended height will help avoid condensation, Induction 700mm 800mm particular to cooking with an Induction Cooktop. Refer to additional notes. IMPORTANT: Please check all State and Federal Laws in relation to the minimum - maximum heights, regulations concerning the expelling of air and install your rangehood in accordance with local laws and regulations. -
Page 9: Wall Mount Installation
4. Installation Wall Mount Installation Every wall mounted rangehood has two primary mounting points and several secondary mounting points to firmly fix the rangehood in its place. Please ensure that the holes for the two primary mounting points are level before installation. Danger Always switch off and disconnect power before installing the rangehood. - Page 10 4. Installation Step 4 The outer and inner metal flue are encased one within the other. Attach the flue wall mounting bracket to the correct position on the wall for the inner flue section to attach to at your desired height.
- Page 11 4. Installation Example Installation Figure 1 Figure 2 Figure 3 Figure 4 Figure 5 Figure 6 Page 11...
- Page 12 4. Installation Roof Cowls / Roof Seal Kit WARNING All electrical wiring should be kept inside the roof space. Roof Cowls* Flexi Ducting must be pulled taut. DO NOT crush or kink the ducting. Connect flexi ducting to the outlet on rangehood using aluminium foil tape and cable tie.
-
Page 13: Maintenance
4. Installation Back Draft Fins Should your Back Draft Fins get stuck, this is not a warranty issue. When installing Back Draft Fins, please ensure that you insert the Back Back Draft Fins Draft Fins onto the back draft base, which are attached to the top of the motor outlet before installation. - Page 14 5. Maintenance Replacing the Light Bulb for CL8812 DANGER Always switch off and disconnect the power cord before replacing any light bulbs. Failure to do so may cause serious injury. Please be aware that the light bulb will retain heat for a short period of time after being switched off.
- Page 15 5. Maintenance Cooking with Induction Cooktops Cooking with an induction or similar cooktop, may produce condensation on the rangehood. Unlike basic electric or gas cooking, induction cooktops heat food and liquid instantly, which in turn, produces vapours rapidly. Because of the accelerated process, the rangehood filters do not have enough time to warm up, which increases the chance of condensation forming.
- Page 16 5. Maintenance Before you contact the technical service department, make sure that the product is plugged in and power is supplied. • Do not take any action that will damage the product. IMPORTANT Never attempt to repair this appliance by yourself. Always refer to a qualified Service Technician. Rangehood does not work Light does...
-
Page 17: Faulty Installation
It is not the responsibility of Schweigen Home Appliances to rectify any incorrect installations. A service call out fee will be charged for any Schweigen technician that attends a call, whereby it is established that the fault is due to an incorrect installation or non-manufacturing fault. Should the appliance be installed in such a way that the service agent is unable to gain access to the appliance, the person/s who own the premises where the appliance resides —... -
Page 18: Specifications
6. Specifications Technical Specifications Model CL8812 Feeding Voltage 220-240V 50Hz Lamp Power 3 LED x 3.5W 1200 1200 Page 18... -
Page 19: Disclaimer
All information supplied is to be used for general reference purposes only and is on the understanding that Schweigen Home Appliances will not be liable for any loss, liability or damage of whatever kind arising as a result of any reliance upon such information. All pictures used in the guide are for illustrative purposes only. - Page 20 Australia 8/3-4 Anzed Court, Mulgrave 3170 Victoria. Phone 1300 881 693 Email sales@schweigen.com.au Web www.schweigen.com.au New Zealand 5 Tolich Place, Henderson, Auckland 0610. Phone 0800 200 510 Email info.parex@emerson.com Web www.parex.co.nz Distributed by Axis Group International Pty Ltd. ACN 124 141 322...
