RANGEHOOD & INSTALLATION GUIDE

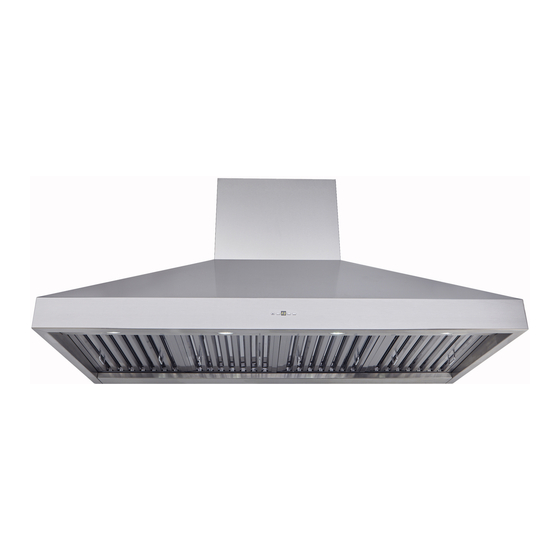

CL8815S
www.schweigen.com.au
Revision V1 12/03/20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CL8815S and is the answer not in the manual?

Questions and answers

Summary of Contents for Schweigen CL8815S

  • Page 1 RANGEHOOD & INSTALLATION GUIDE CL8815S www.schweigen.com.au Revision V1 12/03/20...
  • Page 2 Index Welcome Your State Regulatory Authority Important Safety Information Before Installation Product Use Ducted or Recirculating? Maintenance and Service Cleaning the Baffle Filters Electrical Cord Description Rangehood 4. Operation Push Button Control Panel Speed Control Cleaning & Maintenance Surfaces Filters Cleaning the Interior Cleaning the Exterior Replacing the Light Bulb...
  • Page 3 Please help us to continue this effort to protect the environment by using the appliance efficiently and dispose of the packaging in a responsible manner. We trust that you will enjoy your new Schweigen rangehood. Your State Regulatory Authority Different Australian states have varying legislative requirements for the installation of rangehood ducting.
  • Page 4 2. Important Safety Information WARNING Please read this section thoroughly before attempting to operate the appliance. Inspect your product upon receipt. Any damage or defects MUST be reported within 48 hours, or no claim will be recognised. DO NOT INSTALL THIS APPLIANCE IF YOU FIND IT DAMAGED. If this product is installed damaged, neither the supplier, nor the retailer, will be responsible for the costs associated with the repair, replacement, removal or re-installation of the appliances.
  • Page 5: Before Installation

    19. Never cook foodstuff directly over the flame or have the gas burners on under the rangehood without using cookware. Before Installation 1. We recommend this appliance be installed or repaired by a qualified Schweigen Home Appliances technician. 2. Please see our website www.schweigen.com.au for recommended installers.
  • Page 6: Product Use

    2. Important Safety Information Product Use This product is designed for household use and should not be used for commercial applications. After use, always ensure that all controls are in the “OFF” position. When frying with a gas flame, take particular care not to allow the oil or grease in the pan to catch fire.
  • Page 7: Range Hood

    3. Description Rangehood 1. Mounting Bracket 2. Upper Flue 3. Lower Flue 4. Power Cord 5. 2x 200mm outlets 6. Rangehood Body 7. Lights 8. Baffles 9. Remote Control NOTE: Filter and light quantity may vary from model to model. Page 7...
  • Page 8 4. Operation T O U C H B U T T O N C O N T R O L P A N E L Remote control sensor Fan speed setting Turn light on/off Turn rangehood on/off R E M O T E C O N T R O L As well as the touch buttons, this undermount rangehood comes with a remote control to operate the rangehood.
  • Page 9: Cleaning The Interior

    5. Cleaning & Maintenance Warning Always switch off and disconnect power before cleaning. Cleaning the Interior Clean the interior of the rangehood with a damp cloth and a neutral detergent or denatured alcohol. NOTE: Do not use denatured alcohol on the exterior of the rangehood. Do not clean the electric parts or the motor with liquids or solvents Cleaning the Exterior We recommended using a soft cloth, water and a liquid soap, rinsing it well and then drying it thoroughly.
  • Page 10 5. Cleaning & Maintenance Baffles For this appliance to function effectively, regular maintenance is a must. • The function of the baffle is to collect the grease particles given off during cooking. • Clogged heavy oil deposits restrict airflow and may cause the motor to overheat and become a fire hazard.
  • Page 11: Replacing The Light Bulb

    5. Cleaning & Maintenance Replacing the Light Bulb Danger Always switch off and disconnect the power cord before replacing any light bulbs. Failure to do so may cause serious injury. Please be aware that the light bulb will retain heat for a short period of time after being switched off.
  • Page 12: Bbq Installation

    6. Installation Rangehood Size vs Cooktop Size In addition to the size, the height of the rangehood above the cooktop is important to obtain the best performance. INADEQUATE ADEQUATE OPTIMAL Rangehood smaller than Rangehood same size as Rangehood larger than cooking zone cooking zone cooking zone...
  • Page 13 *IMPORTANT: If the user decides to install the rangehood at a distance of less than minimum height above the cooking surface, Schweigen declines responsibility for damages suffered by the rangehood due to excess heat or damage to objects, people and others caused directly or indirectly by a malfunction, breakage or fire.
  • Page 14: Wall Mount Installation

    6. Installation _n_. _LH Section_ Wall Mount Installation There are two primary mounting points and several secondary mounting points to firmly fix the rangehood in place. Suitable fixing screws must be used to mount the appliance on a secure surface. Please ensure that the holes for the two primary mounting points are level before installation.
  • Page 15 _n_. _RH Section_ 6. Installation DANGER Always switch off and disconnect the power supply before installing the rangehood. Failure to do so may cause serious injury. NOTE Please make sure that filters are removed and put in a safe place while installing rangehood to prevent damage.
  • Page 16 6. Installation Step 3 Place flue covers on the rangehood and extend to the length required. (Be careful not to scratch the top of the rangehood). PLEASE NOTE: Only a standard length of stainless steel flue is provided. Any additional length will need to be sourced and manufactured by a sheet metal fabricator.
  • Page 17 6. Installation Ducting Please DO NOT crush or kink the ducting. 1. Crushed or kinked ducting creates sharp corners that creates turbulence. This reduces the size and efficiency of the ducting, lowers extraction and may cause excessive noise. 2. Sweeping curves and taut ducting reduces resistance and turbulence.
  • Page 18: Isodrive ® Motor Setup

    6. Installation Isodrive Motor Setup ® Note Please refer to the Isodrive motor installation guide for more details ® on flexi ducting and Isodrive motor installation. ® Page 18...
  • Page 19 6. Installation Single Isodrive Motor Installation ® 1. Isodrive Motor ® 2. Roof Seal Kit (Dektite) (Not supplied)* 3. Support Straps (Not supplied)* 4. Attach Flexi Duct to Bell-Mouth Adaptor using ring clamp. Please DO NOT rip the ducting. 200mm 5.
  • Page 20 6. Installation Twin Isodrive Motor Installation ® 1. Isodrive Motors ® 2. Roof Seal Kit (Dektite) (Not supplied)* 3. Support Straps (Not supplied)* 4. Attach Flexi Duct to Bell-Mouth Adaptor using ring clamp. Please DO NOT rip the ducting. 5. Isodrive Motor Power Lead (Male Plug) ®...
  • Page 21 6. Installation Optional Wall Mounted Motor Installation The Isodrive motor can optionally be installed mounted to a wall if a roof mount is not possible. The construction of a bulkhead is also recommended. The position of the motor can be to an external wall as shown above, or to the same external wall as the rangehood is mounted, as shown below.
  • Page 22 7. Troubleshooting Before you contact the technical service department, make sure that the product is plugged in and power is supplied. • Do not take any action that will damage the product. IMPORTANT Never attempt to repair this appliance by yourself. Always refer to a qualified Service Technician.
  • Page 23: Faulty Installation

    0800 200 510 Faulty Installation It is not the responsibility of Schweigen to rectify any incorrect installations. A service call out fee will be charged for any Schweigen technician that attends a call, whereby it is established that the fault is due to an incorrect installation or non-manufacturing fault. Should the appliance be installed in such a way that the service agent is unable to gain access to the appliance, the person/s who own the premises or the property where the appliance resides —...
  • Page 24: Technical Specifications

    8. Specifications Dimensions 1500 Technical Specifications Model CL8815S Feeding Voltage 220–240V 50Hz Lamp Power — LED (W) 3 x 3.5W Page 24...
  • Page 25 All information supplied is to be used for general reference purposes only and is on the understanding that Schweigen Home Appliances will not be liable for any loss, liability or damage of whatever kind arising as a result of any reliance upon such information.
  • Page 26 Notes Page 26...
  • Page 27 Notes Page 27...
  • Page 28 Australia 8/3-4 Anzed Court, Mulgrave 3170 Victoria. Phone 1300 881 693 Email sales@schweigen.com.au Web www.schweigen.com.au New Zealand 5 Tolich Place, Henderson, Auckland 0610. Phone 0800 200 510 Email info.parex@emerson.com Web www.parex.co.nz...
