Operator's Manual

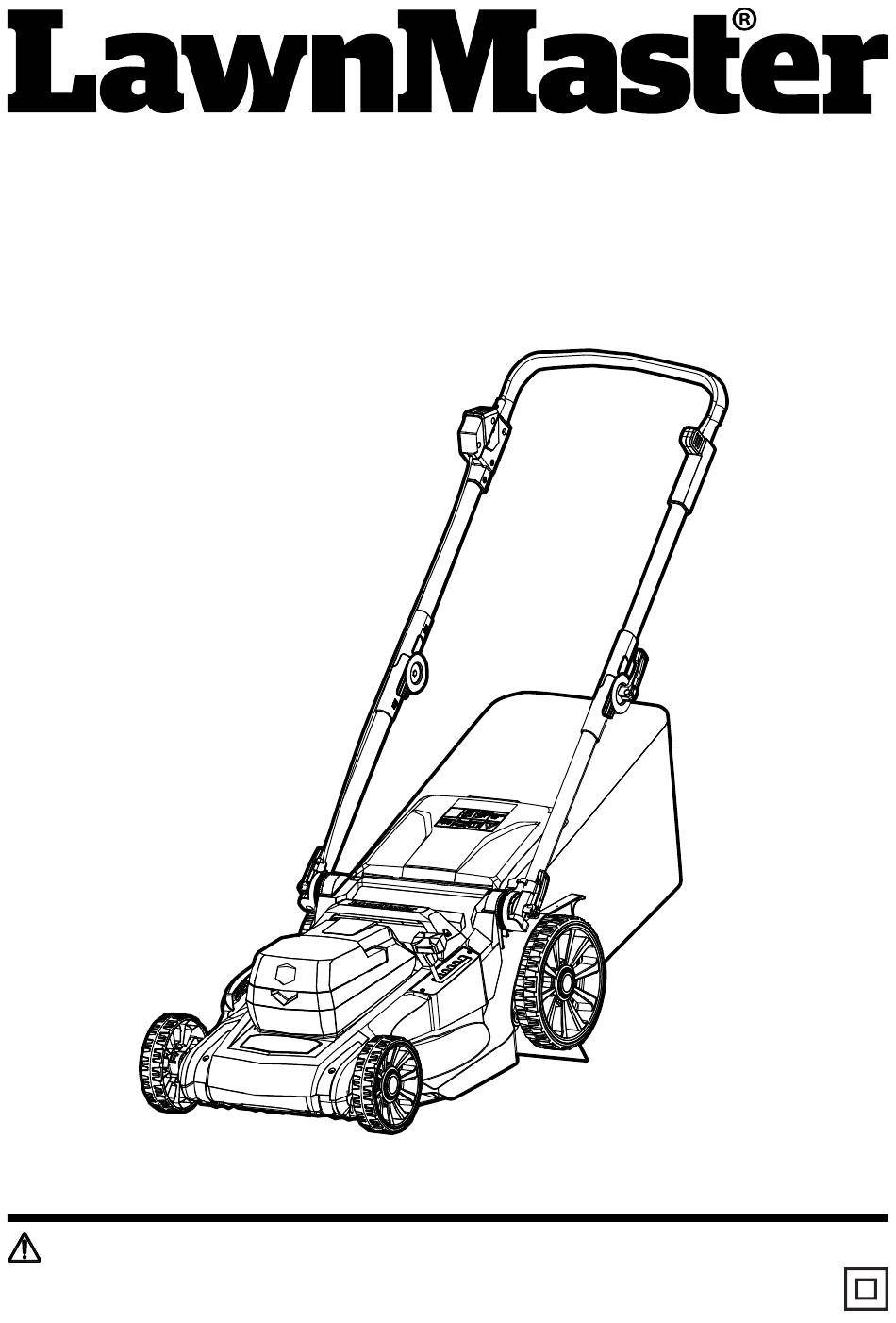

19" 60V MAX* Lithium-Ion Cordless Mower CLMFR6018A 0802
Save this manual for future reference
* Maximum initial battery workload voltage (measured without a workload) is 60 volts.
Nominal voltage is 54 volts.
Battery Model Number is 60LB4026-C.
Charger Model Number is 60LFC01-ETL.
Read all safety rules and instructions carefully before operating this tool.
Distributed By
Suzhou Cleva Electric Appliance Co., Ltd.
NO.8 Ting Rong Street 215122 Suzhou - China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLMFR6018A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LawnMaster CLMFR6018A

Summary of Contents for LawnMaster CLMFR6018A

  • Page 1 Operator's Manual 19" 60V MAX* Lithium-Ion Cordless Mower CLMFR6018A 0802 Save this manual for future reference * Maximum initial battery workload voltage (measured without a workload) is 60 volts. Nominal voltage is 54 volts. Battery Model Number is 60LB4026-C. Charger Model Number is 60LFC01-ETL.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SPECIFICATIONS IMPORTANT SAFETY INSTRUCTIONS SYMBOLS 9-11 KNOW YOUR LAWN MOWER 12-13 ASSEMBLY 14-21 BATTERY PACK AND CHARGER 22-24 OPERATION 25-27 MAINTENANCE 28-32 ENVIRONMENTALLY SAFE BATTERY DISPOSAL TROUBLESHOOTING 34-35 ® LAWNMASTER WARRANTY EXPLODED VIEW PARTS LIST NOTES 39-40...

  • Page 3: Specifications

    SPECIFICATIONS 60V MAX* CORDLESS MOWER Type Cordless, Battery-powered No-load Speed 3200, 3300, 3400 RPM Deck Width 19" (480 mm) Cutting Width 18" (460 mm) Height Adjustments 6 Positions (1.4"-3.4") (35-85 mm) Functions 3-in-1: Mulch, Rear Bag, Side Discharge Wheel Size 6.70"...

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS INTRODUCTION This product has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability have been given top priority in the design of this product making it easy to maintain and operate. WARNING This symbol indicates important safety instructions.
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS all safety instructions could result in serious injury or death. ■ Do not operate the equipment while under the influence of alcohol or drugs. ■ Use lawn mower for the correct purpose. Do not use lawn mower for any job except that for which it is intended.

  • Page 6: Maintenance And Storage

    IMPORTANT SAFETY INSTRUCTIONS you are tired. ■ Avoid mowing wet grass. Poor footing could cause a slip and fall accident. ■ Use extra care while operating the equipment with a collection bag or other attachment(s). They can affect the stability of the machine. ■...

  • Page 7: Battery Pack

    IMPORTANT SAFETY INSTRUCTIONS - Pull the mower back slowly. BATTERY PACK ■ The battery pack is only compatible with 60LFC01-ETL chargers. ■ Recharge only with the charger specified by the manufacturer and listed in this manual. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

  • Page 8: Fcc Compliance

    IMPORTANT SAFETY INSTRUCTIONS ■ Do not use a charger that has been dropped or received a sharp blow. ■ Do not disassemble charger. Take it to a qualified service center for check or replacement. Incorrect reassembly may result in a risk of electric shock or fire. ■...

  • Page 9: Symbols

    SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Direct Current Type or a characteristic of current Amperes Current...
  • Page 10 SYMBOLS SYMBOL NAME DESIGNATION/EXPLANATION Lithium-Ion Battery Designates that this tool is in compliance with lithium- Recycling ion battery recycling program requirements. Do not dispose of battery packs in rivers or immerse Keep Away From Water in water. Do not dispose of battery packs in explode or leak Keep Away From Fire and cause injury.
  • Page 11 SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING Indicates an imminently hazardous situation, which, if not DANGER avoided, will result in death or serious injury. Indicates a potentially hazardous situation, which, if not WARNING avoided, could result in death or serious injury.

  • Page 12: Know Your Lawn Mower

    KNOW YOUR LAWN MOWER 20a 20b...
  • Page 13 KNOW YOUR LAWN MOWER Components 8.Rear Wheel 17.Lower Handle 9.Deck 18.Control Cable 1.Start/Stop Bale Switch 10. Front Wheel 19.Safety Switch Button 2.Foam Grip 11. Safety Key (Inside the Battery 20.iPower Control Panel 3.Upper Handle Pack Compartment) 20a. iPower Mower Mode Indicator 4.Quick Release Lever 12.Side Discharge Door 20b.

  • Page 14: Assembly

    DO NOT FORCE IT! INTENDED USE ® This cordless lawnmower operates with LawnMaster 60V lithium-ion batteries. The product is intended for mowing and mulching grass in domestic yards only. It must not be used for mowing unusually high, dry or wet grass, e.g. pasture grass, or for shredding leaves.

  • Page 15: Assembling The Lower Handle

    ASSEMBLY WARNING If any parts are damaged or missing do not operate this product until the parts are replaced. Failure to heed this warning could result in serious personal injury. Do not attempt to modify this product or create accessories not recommended for use with this product.
  • Page 16 Fig. 3 ASSEMBLING THE COLLECTION BAG ® Your LawnMaster mower comes with a tool-less collection bag. 1. Check the grass collection bag before assembling to make sure there is no damage. 2. Pull the grass collection bag over the steel frame as shown (Fig. 4).
  • Page 17 ASSEMBLY INSTALLING AND REMOVING THE GRASS COLLECTION BAG NOTE: When using the grass collection bag, do not install the mulching plug. The mulching plug MUST be removed prior to installing grass collection bag. Installing the grass collection bag: 1. Lift the rear safety flap and hold it in the position (Fig. 6). 2.
  • Page 18 ASSEMBLY ADJUSTING THE CUTTING HEIGHT WARNING Do not at any time make any adjustment to the lawn mower without first stopping the motor and removing the safety key. Keep your feet away from the mower deck when adjusting its height. When shipped, the rear wheels on the mower are set to a low-cutting position.

  • Page 19: Installing The Side Discharge Chute

    ASSEMBLY 1. Lift the safety flap and detach the grass collection bag. 2. Open the safety flap, hold it in position and insert the mulching plug into the rear discharge chute (Fig. 8). Ensure the locking button snaps into place, as picture shown (Fig. 9). 3.

  • Page 20: Installing / Removing The Battery Pack

    ASSEMBLY INSTALLING / REMOVING THE BATTERY PACK WARNING If any parts are broken or missing, do not attempt to attach the battery pack to the mower or operate the mower until the broken or missing parts are replaced. Failure to do so could result in serious injury. Do not connect the battery and/or the safety key before the product is completely assembled.
  • Page 21 ASSEMBLY 20a 20b iPower Control Panel Fig. 14 IPOWER MOWER MODE INDICATOR (20a) (Fig. 14) 1. By default, the motor power is set to “AUTO” and will automatically adjust to your lawn. 2. Push the press button repeatedly to cycle through the different motor power levels. •...

  • Page 22: Battery Pack And Charger

    BATTERY PACK AND CHARGER BATTERY CHARGING ® 1. Use only with 60V LawnMaster battery chargers. The battery charger supplied is specifically designed for the lithium-ion battery used in this tool. 2. Check the power voltage! Battery chargers operate on 120V.

  • Page 23: Indicator Lights

    BATTERY PACK AND CHARGER The indicator lights on the charger show the charger status: SYMBOL INDICATOR LIGHTS STATUS Red, continuous. Connected to power supply . Green, blinking. Charging. (flashing frequency: 1Hz) Green, blinking. Battery is overheated. (flashing frequency: 2Hz) Green, continuous. Fully charged.

  • Page 24: Charging The Battery Pack

    BATTERY PACK AND CHARGER CHARGING THE BATTERY PACK Fig. 15 WARNING If any part of the charger is missing or damaged, do not operate it! Replace the charger with a new one. Failure to heed this warning could result in possible serious injury. Check the voltage! The voltage must comply with the information on the rating label.

  • Page 25: Operation

    OPERATION WARNING Do not allow familiarity with this type of product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury. WARNING Always wear safety goggles or safety glasses with side shields when operating this product. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury.

  • Page 26: General Operation

    OPERATION GENERAL OPERATION Check the product, its power cord and accessories for damage before each use. Before use, please ensure all power connections are in good working order prior to installing the power key and battery. If damage is present or observed, please stop and have mower serviced before use. Do not use the product if it is damaged or shows wear.

  • Page 27: After Use

    OPERATION MOWING ON A SLOPE (Fig. 19) 1. Slopes are a major factor related to slip and fall accidents that can result in severe injury. Mowing on slopes requires extra caution. If you feel uneasy on a slope, do not mow it. For your safety, do not attempt to mow slopes greater than 15 degrees.

  • Page 28: Maintenance

    MAINTENANCE WARNING When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. WARNING Always wear safety goggles or safety glasses with side shields during power tool operation or when blowing dust. If operation is dusty, also wear a dust mask. GENERAL MAINTENANCE Avoid using solvents when cleaning plastic parts.

  • Page 29: Replacing The Mower Blade

    REPLACING THE MOWER BLADE NOTE: Remove safety key and battery before performing any maintenance! ® NOTE: Only use identical replacement blades. LawnMaster mower blade replacement part #111198136. 1. Stop the motor and allow the blade to come to a complete stop.

  • Page 30: Sharpening The Blade

    MAINTENANCE Wooden Block Blade Fig. 20 Fig.21 SHARPENING THE BLADE For best mowing performance, the mower blade must be kept sharp. A dull blade does not cut grass evenly and overloads the motor. Under normal circumstances, sharpening the blade twice during the mowing season is usually sufficient.

  • Page 31: Storing The Mower

    MAINTENANCE Fig. 22 Fig.23 STORING THE MOWER 1. Remove mower safety key and battery. 2. Turn mower on its side and clean grass clippings that have accumulated on the underside of the mower deck. 3. Wipe the mower clean with a dry cloth. 4.

  • Page 32: Cleaning The Mower

    MAINTENANCE CLEANING THE MOWER WARNING To reduce the risk of electric shock, do not expose the mower to water. WARNING Do not at any time make any maintenance to the lawn mower without first stopping the motor and removing the safety key and battery pack. The underside of mower deck should be cleaned after each use as grass clippings, leaves, dirt and other debris will accumulate causing rust and corrosion.

  • Page 33: Environmentally Safe Battery Disposal

    ENVIRONMENTAL SAFE BATTERY DISPOSAL The following toxic and corrosive materials are in the batteries used in this battery pack: lithium-ion, a toxic material. WARNING All toxic materials must be disposed of in a specific manner to prevent contamination of the environment.

  • Page 34: Troubleshooting

    TROUBLESHOOTING Suspected malfunctions are often due to causes that the user can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING Only perform the steps described within these instructions! All further inspection, maintenance, and repair work must be performed by an authorized service center or a similarly qualified specialist if you cannot solve the problem yourself! Problem Possible Cause...
  • Page 35 TROUBLESHOOTING High grass and low cutting height. Rear of Mower is hard to push. Raise the cutting height. mower housing and blade dragging in heavy grass. The cutting blade is not Tighten the blade bolts. assembled securely. Sharpen and balance the blade Mower vibrates The blade is not balanced.

  • Page 36: Lawnmaster ® Warranty

    ® LAWNMASTER WARRANTY four (4)

  • Page 37: Exploded View

    EXPLODED VIEW...

  • Page 38: Parts List

    PARTS LIST CLMFR6018A 0802 MANUAL PARTS LIST Key Number Part Number Description Quantity 211065101 Deck Handle Motor Cover Assembly Upper Motor Cover 111198149 Battery Cover Safety Key Battery Housing Motor Assembly 111198109 Rear Wheel Assembly (9.25'') 211064108 Wheel Cover Assembly...

  • Page 39: Notes

    NOTES...
  • Page 40 NOTES...
