Instruction Manual
37cm 24V Lithium-Ion Cordless Mower CLMF2437G
CLMF2437G-01 (With Batteries and Charger)
CLMF2437G-BARE (Batteries and Charger Not Included)
Original Instructions
WARNING:
Read all safety instructions carefully before assembling and operating
this machine. Ensure the machine has been assembled correctly and safely. Keep the
instructions safe and pass them on to any subsequent user so that the information is always
available.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLMF2437G and is the answer not in the manual?

Questions and answers

Related Manuals for LawnMaster CLMF2437G

Summary of Contents for LawnMaster CLMF2437G

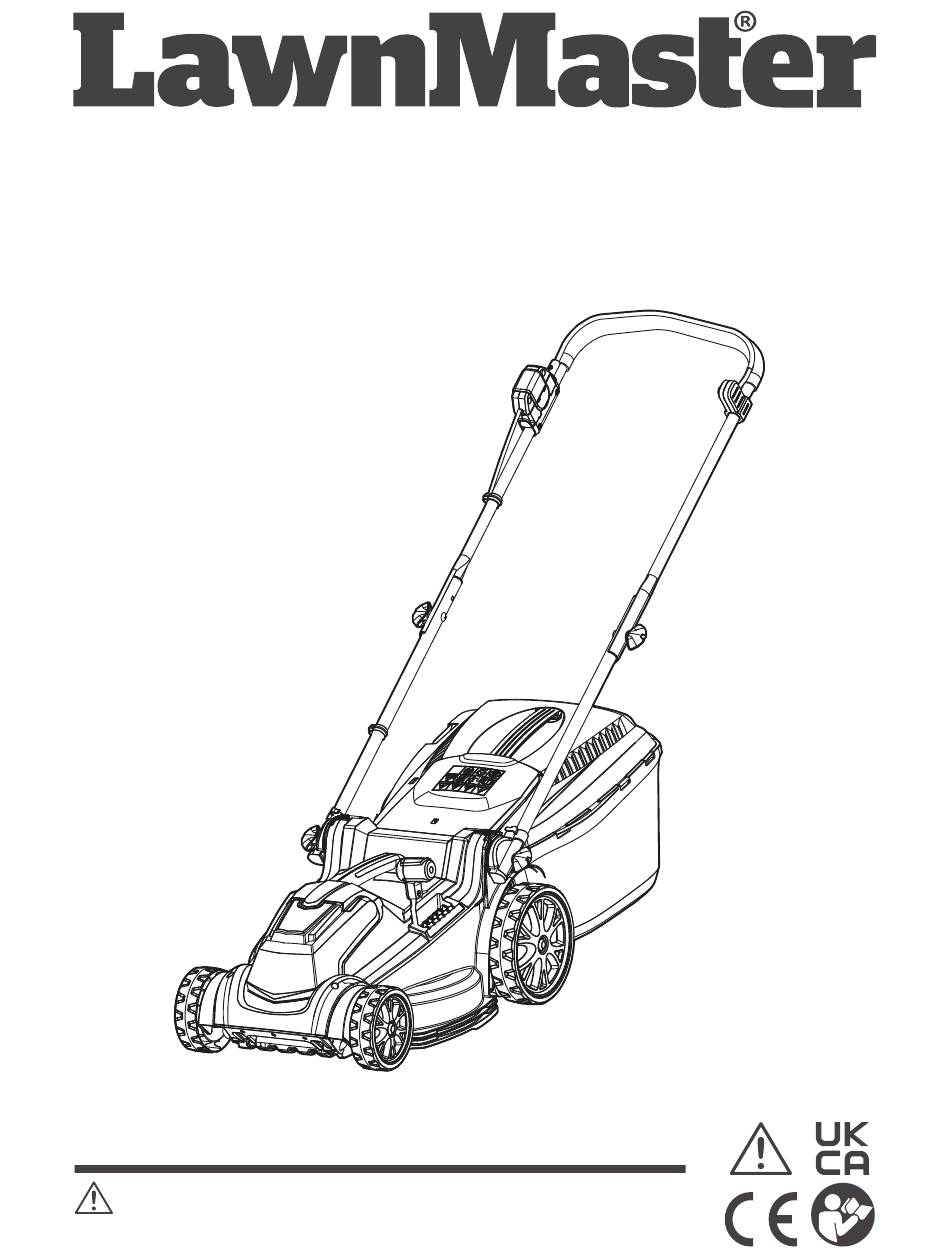

  • Page 1 Instruction Manual 37cm 24V Lithium-Ion Cordless Mower CLMF2437G CLMF2437G-01 (With Batteries and Charger) CLMF2437G-BARE (Batteries and Charger Not Included) Original Instructions WARNING: Read all safety instructions carefully before assembling and operating this machine. Ensure the machine has been assembled correctly and safely. Keep the instructions safe and pass them on to any subsequent user so that the information is always available.
  • Page 3 Not included with CLMF2437G-BARE ① ② Fig.1 Fig.2 Fig.3 Fig.4...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS Section Page Symbols Safety Information 8-20 In the Box Assembly 22-24 Operation 25-29 Maintenance 30-32 Troubleshooting 33-34 Technical data Recycling and Disposal...

  • Page 6: Symbols

    SYMBOLS The following warning symbols appear throughout this manual and indicate the appliance. SYMBOL DESIGNATION/EXPLANATION Caution Read the instructions. WARNING: Beware of thrown objects. Keep bystanders away. WARNING: Disconnect battery before maintenance. Beware of sharp blades. Blades may continue to rotate after the motor is leaving the product unattended for any period.
  • Page 7 SYMBOLS WARNING understand completely the instruction manual. product.

  • Page 8: Safety Information

    SAFETY INFORMATION General Power Tool Safety Warnings WARNING Read all safety warnings, instructions, illustrations and Failure to follow all instructions listed below may result in electric The term "power tool" in the warnings refers to your mains- operated (corded) power tool or battery-operated (cordless) 1) Work area safety Cluttered or dark Power tools create sparks which may ignite the dust...
  • Page 9 SAFETY INFORMATION 2) Electrical safety There is an increased risk of electric shock if your body is Water entering a power tool will increase the risk of electric Damaged e) When operating a power tool outdoors, use an Use of a cord f) If operating a power tool in a damp location is Use of an RCD reduces the risk of 3) Personal safety...
  • Page 10 SAFETY INFORMATION Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used energising power tools that have the switch on invites A wrench or a key left attached to a This enables better control of the power tool in extraction and collection facilities, ensure these are Use of dust collection can allow you to become complacent and ignore tool...
  • Page 11 SAFETY INFORMATION the motor, disconnect the mains lead and wait until the o) When you start the motor, the lawn mower should not case only tilt it up as far as is really necessary and only p) Before you attach or empty the grass collection box, the mower blade at all times! Do not stand near the grass s) If you use the mower on a small incline, mow across Always be...
  • Page 12 SAFETY INFORMATION w) Always wear strong, anti-slip footwear and long Never mow in bare feet 4) Power tool use and care b) Do not use the power tool if the switch does not turn it Any power tool that cannot be controlled with c) Disconnect the plug from the power source and/ Such preventive safety measures reduce the risk of starting the power tool...
  • Page 13 SAFETY INFORMATION in accordance with these instructions, taking into account the working conditions and the work to be h) Keep handles and grasping surfaces dry, clean and Slippery handles and grasping surfaces do not allow for safe handling and control of the i) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and...
  • Page 14 SAFETY INFORMATION n) Only work in good daylight or appropriate and short period of time, and in particular do not play with s) Do not touch the cutting blade until the machine has been disconnected from the mains and the cutting t) Keep the lawn mower in a dry place which is Avoid pulling it x) Always use the lawn mower with the grass collection...
  • Page 15 SAFETY INFORMATION shock, overheating or leakage of corrosive liquid from the Use of any other battery packs may create c) When battery pack is not in use, keep it away from Shorting the e) Do not use a battery pack or tool that is damaged or not use a battery pack or charger that has been dropped...
  • Page 16 SAFETY INFORMATION Batteries can explode in the presence of a source of k) For best results, your battery tool should be charged in a location where the temperature is more than 4°C but l) Under extreme usage or temperature conditions, Risk of short circuit and fumes may When battery becomes fully charged, unplug the charger from the power supply and remove the battery pack from...
  • Page 17 SAFETY INFORMATION 6) Charger safety information a) Ensure the battery pack is charged indoors only, in a b) Do not use non-rechargeable batteries! c) Do not operate the charger with a damaged cord or charger with the identical unit as listed in the Product equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a Never...
  • Page 18 SAFETY INFORMATION m)Follow all charging instructions and do not charge the battery pack or tool outside the temperature range Charging improperly or at This will Service of battery packs should only be performed by the manufacturer or Lawnmower safety warnings a) Do not use the lawnmower in bad weather conditions, This b) Thoroughly inspect the area for wildlife where the...
  • Page 19 SAFETY INFORMATION Worn or damaged parts increase the A worn or damaged grass catcher may A guard that is loose, damaged, or is not functioning correctly may result in Blocked air h) While operating the lawnmower, always wear non-slip This reduces i) While operating the lawnmower, always wear long This reduces the risk of slipping and falling This reduces the risk of loss of control, slipping...
  • Page 20 SAFETY INFORMATION This reduces the risk of tripping during This reduces the risk Unexpected operation Unexpected operation of the lawnmower may result in serious personal Intended Use This lawn mower is designed for domestic use only: domestic and hobby gardens. and may not be used to mow wet or unusually high grass.

  • Page 21: In The Box

    7. Grass Collection Bag 20. iPower Mode Indicator 8. Cutting Height Adjustment Lever 21. iPower Battery Indicator 9. Rear Wheel 23. Battery Release Button 11. Front Wheel 12. Isolator Key 25. Instruction Manual 13. Battery Compartment Cover Not Supplied with CLMF2437G-BARE...

  • Page 22: Assembly

    ASSEMBLY Assembly Preparation includes suitable personal protective equipment. WARNING If any parts are damaged or missing do not operate this product until the parts are replaced. Failure to pay attention to this warning could result in serious personal injury. WARNING Do not attempt to modify this product or create accessories not recommended for use with this leading to possible serious personal injury.
  • Page 23 ASSEMBLY Assembling the Grass Collection Bag (See Figs. 3-4) Your mower comes with a tool free grass collection bag. support frame (Fig. 3). NOTE: There is a hole in the bottom of the grass collection bag to hang it up if required (Fig. 4). (See Fig.
  • Page 24 ASSEMBLY NOTE: The mulching plug MUST be removed if collection bag is used during mowing operation. nutrient for the lawn. To install the mulching plug: the mulching plug up and out of the discharge chute. (See Figs. 10-11) WARNING To install the battery pack: NOTE: starting operation.

  • Page 25: Operation

    OPERATION WARNING WARNING Always wear safety goggles or safety glasses with side shields when operating this product. injury. WARNING Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury. Setting the Cutting Height (See Fig.
  • Page 26 OPERATION To set the cutting height: desired cutting height position (Fig. 12). desired cutting height position (Fig. 12). Battery Pack Operation Battery Charging WARNING CAUTION Ensure the batteries are charged between 4°C and 40°C. This ensures an optimum battery service life.
  • Page 27 OPERATION Charger Operation (See Fig. 13) WARNING one. Failure to pay attention to this warning could result in possible serious injury. power supply. NOTE: The indicator lights on the charger show the charging status: Symbol Indicator Lights Status instructions below. Connected to power supply (Standby) Charging...
  • Page 28 OPERATION section). is normal and does not indicate a technical defect of the battery charger. Starting/Stopping the Mower (See Figs. 14-15) WARNING touch the rotating blade. A rotating blade can cause injury. safety switch button and gently pull the start/stop switch lever towards the upper handle (Fig. 14 iPower Mode Indicator (See Fig.
  • Page 29 OPERATION mulching plug. have full control over the product. Mowing (See Fig. 17) lawnmower blades or motor. Such objects could be accidentally thrown by the mower in any direction and cause serious personal injury to the operator and others. proper discharge of the clippings. you should gradually cut it down to the desired length so as not to damage the grass.

  • Page 30: Maintenance

    MAINTENANCE WARNING WARNING WARNING Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury. General Maintenance solvents when cleaning plastic parts. Most plastics are susceptible to damage from various with a dry cloth occasionally.
  • Page 31 MAINTENANCE location. correctly (Fig. 19). tightened. NOTE: Sharpening the Blade (See Fig. 20) be required. NOT attempt to sharpen the blade while it is attached to the mower. removing equal amounts of material from both ends (Fig. 20). WARNING with a new blade. Failure to replace a bent or damaged blade could cause an accident resulting in possible serious injury.
  • Page 32 MAINTENANCE Storing the Mower (See Fig. 22) The device features the following storage options to save space: the cables do not become trapped (Fig. 22). Battery and Charger Maintenance wet conditions. Always store away from metal objects which could create a connection with the terminals. sunlight.

  • Page 33: Troubleshooting

    TROUBLESHOOTING WARNING Gloves and appropriate protective clothing must be worn when performing these instructions. adjustment. PROBLEM POSSIBLE CAUSE SOLUTION correctly/fully. The battery is not installed Ensure the battery is correctly correctly. installed. The battery is not fully charged. Charge the battery. Mower fails to start.
  • Page 34 TROUBLESHOOTING Cut long grass down in stages The mowing conditions are not by gradually lowering the height optimal. Poor collection performance. of cut. Wait for wet grass to dry. Mulching plug is inside Remove the mulching plug. collection chute. Increase the height of cut and Height of cut is too low.

  • Page 35: Technical Data

    TECHNICAL DATA 24V Cordless Mower CLMF2437G No Load Speed 3200-3300-3500/min Cutting Width 37cm Cutting Height Adjustment 22/32/42/52/62/72mm (6 Positions) Grass Collection Bag Capacity Functions 140/200mm Protection Type IPX1 Sound Pressure Level (L 86.2dB(A) K=3dB Sound Power Level (L ) Guaranteed...

  • Page 36: Recycling And Disposal

    RECYCLING AND DISPOSAL materials and should be disposed of accordingly. This appliance contains Lithium-ion battery. Do not dispose of batteries in household where they will be recycled in an environmentally friendly manner. Li-ion...
  • Page 37 Fig.5 Fig.6 Fig.7 Fig.8 Fig.9 Ⅱ Ⅰ Fig.10 Fig.11 Fig.12 Fig.13 Fig.14 Ⅱ Ⅰ Fig.15 Fig.16...
  • Page 38 Fig.17 Fig.18 Fig.19 Fig.20 Fig.21 Fig.22...
  • Page 40 CLMF2437G No.8 Ting Rong Street www.cleva-europe.com Made in P.R.C...
