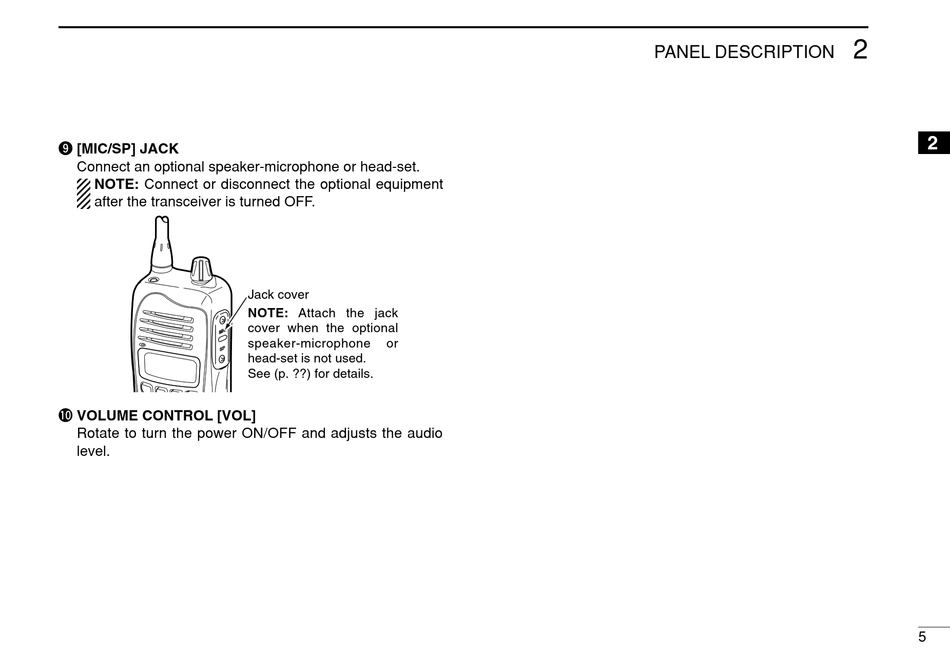

o [MIC/SP] JACK
Connect an optional speaker-microphone or head-set.
NOTE: Connect or disconnect the optional equipment
after the transceiver is turned OFF.
!0 VOLUME CONTROL [VOL]
Rotate to turn the power ON/OFF and adjusts the audio
level.
Jack cover
NOTE: Attach the jack
cover when the optional
speaker-microphone
or
head-set is not used.
See (p. ??) for details.
PANEL DESCRIPTION
2
2
5
