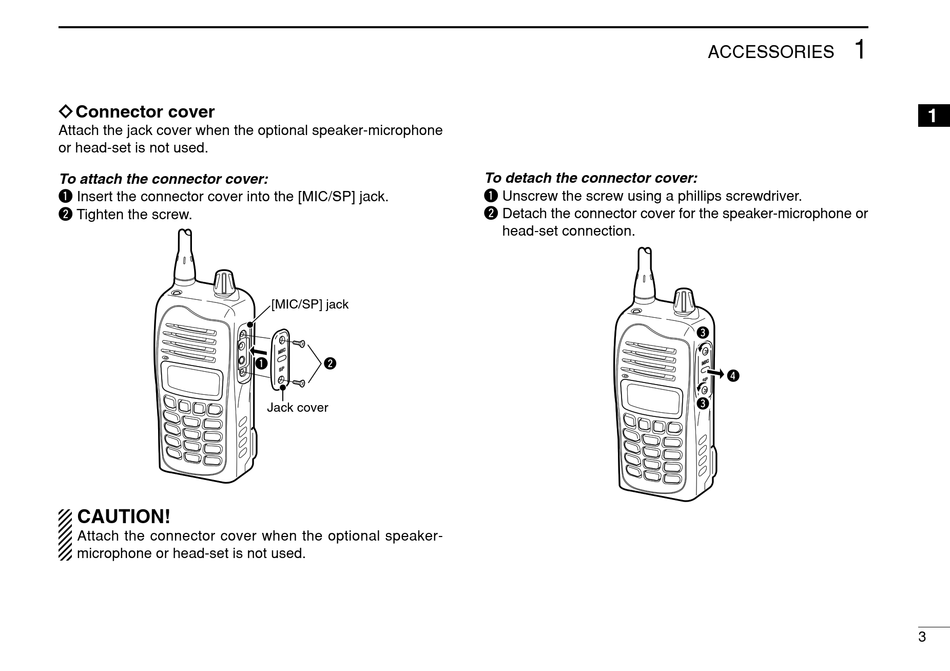

ï Connector cover
Attach the jack cover when the optional speaker-microphone
or head-set is not used.
To attach the connector cover:
q Insert the connector cover into the [MIC/SP] jack.
w Tighten the screw.
CAUTION!
Attach the connector cover when the optional speaker-
microphone or head-set is not used.
[MIC/SP] jack
q
w
Jack cover
To detach the connector cover:
q Unscrew the screw using a phillips screwdriver.
w Detach the connector cover for the speaker-microphone or
head-set connection.
1
ACCESSORIES
e
r
e
1
3
