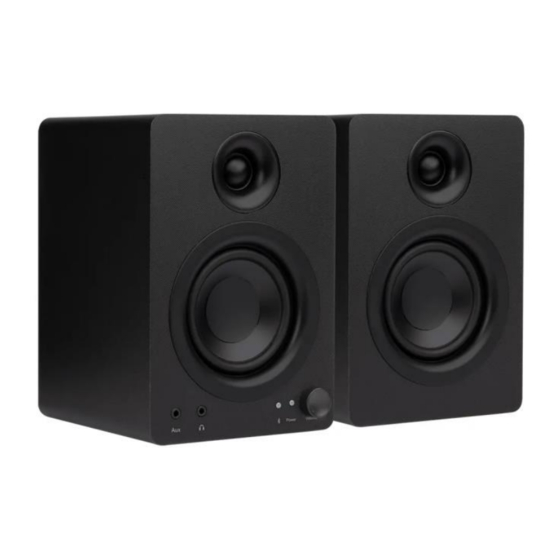

- Page 1 DT-3BT 40-Watt Multimedia Desktop Powered Speakers with Bluetooth® P/N 43240 User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. •... - Page 3 Do not expose this device to excessively high temperatures. Do not • place it in, on, or near a heat source, such as a fireplace, stove, radiator, etc. Do not leave it in direct sunlight. Do not place or install this device in an area where it can be •...
- Page 4 FEATURES 3" polypropylene cone woofers • 3/4" silk dome tweeters • 75Hz ~ 20kHz frequency response • Class AB amplifiers • Each speaker and driver independently amplified • 2x 12 watt amplifiers for the woofers • 2x 8 watt amplifiers for the tweeters •...
-
Page 5: Customer Service
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. -
Page 6: Product Overview
PRODUCT OVERVIEW Primary Speaker Front Panel Tweeter: 3/4" silk dome tweeter. 2. Woofer: 3" polypropylene cone woofer. Aux: 3.5mm stereo AUX input. 4. Headphones: 3.5mm headphones output. 5. Bluetooth: Bluetooth® status indicator. 6. Power: Power status indicator. - Page 7 Volume: Volume level control. Primary Speaker Rear Panel BASS REFLEX PORT: Bass reflex port for enhanced bass response. 2. TOP INPUT: Stereo balanced 1/4" TRS inputs. BOTTOM INPUT: Stereo unbalanced RCA inputs. 4. PAIR: Bluetooth® pairing button.
-
Page 8: Installation
5. POWER: Power switch for turning the speakers on or off. 6. AC INPUT: Unpolarized IEC 60320 C8 input for connecting the included AC Power Cord. OUTPUT: Speaker interconnect output for connecting the secondary speaker. INSTALLATION Ensure that power is turned off and disconnected on all equipment to be connected before making any electrical connections. -
Page 9: Operation
other end into the audio output on your audio source device, such as the headphones output on your smartphone. 6. (Optional) Plug one end of two 1/4" TRS cables (available separately) into the TOP INPUT jacks on the Primary Speaker Rear Panel, then plug the other ends into the output on your audio source device, such as a mixer. -
Page 10: Bluetooth Pairing
BLUETOOTH PAIRING Perform the following steps to pair your mobile device with the speakers. Turn the Volume knob on the Primary Speaker Front Panel fully counterclockwise to the minimum position. 2. Flip the POWER switch on the Primary Speaker Rear Panel to the ON position. -
Page 11: Specifications
SPECIFICATIONS 43240 Frequency Response 75Hz ~ 20kHz Woofer Driver (each) 3" polypropylene cone Tweeter Driver (each) 3/4" silk dome Amplifier Type Class AB amplifier Woofer Amplifier Power (each) 12 watts Tweeter Amplifier Power (each) 8 watts Unbalanced stereo 3.5mm TRS, unbalanced stereo RCA pair, Inputs balanced stereo 1/4"... -
Page 12: Technical Support
TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. - Page 13 • Radio Notice for FCC Caution This FCC Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification to said product not expressly approved by Monoprice, including the use of...
- Page 14 • Restriction of the Use of Certain Hazardous Substances in Electrical • and Electronic Equipment Regulations 2012 Monoprice™ and all Monoprice logos are trademarks of Monoprice Inc. The Bluetooth® word mark and logos are registered trademarks of Bluetooth SIG, Inc.
