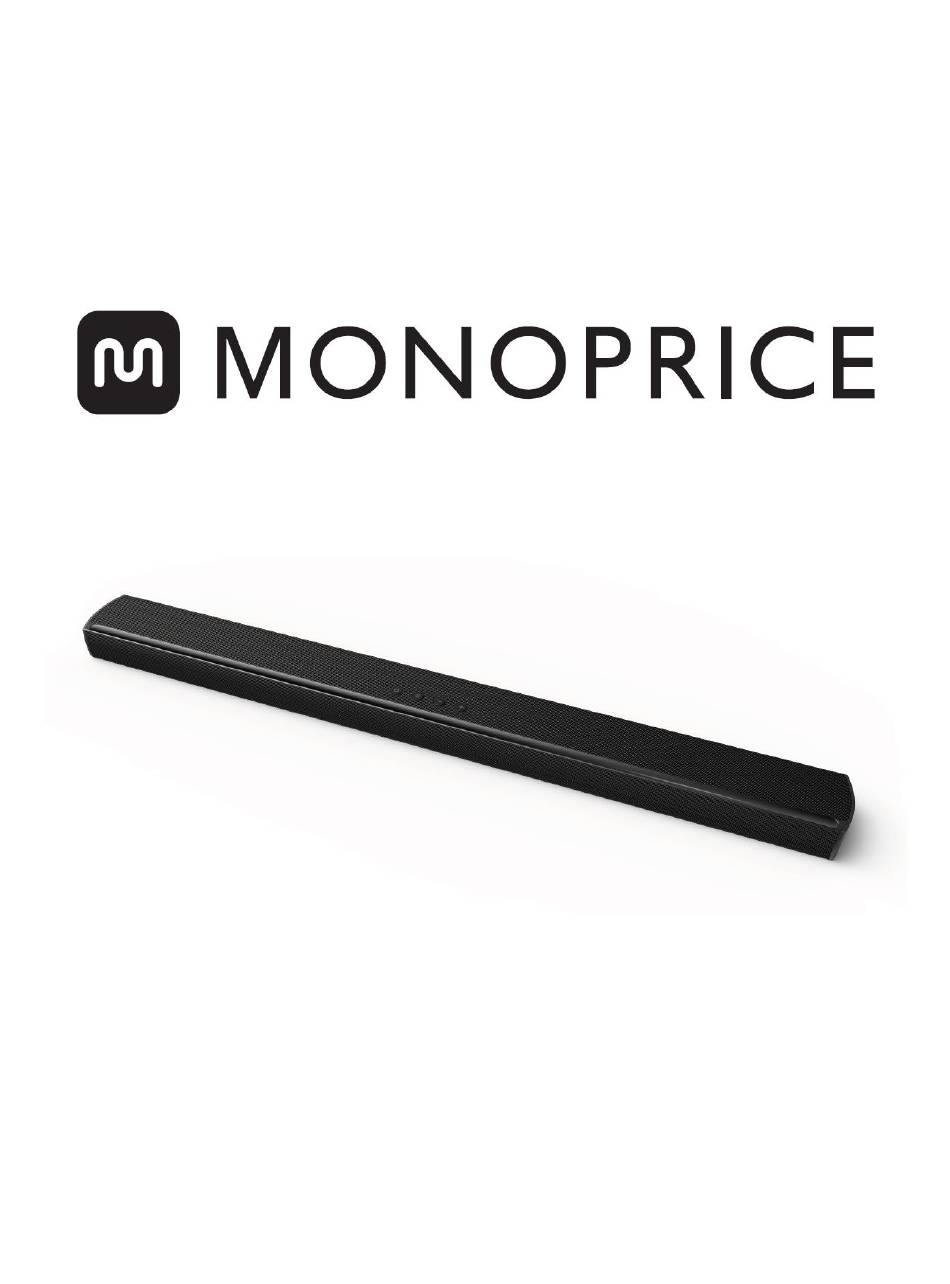

- Page 1 SB-200 Premium Slim Soundbar P/N 34949 User's Manual...
-
Page 2: Table Of Contents
CONTENTS SAFETY WARNINGS AND GUIDELINES ............................4 INTRODUCTION ........................................ 6 FEATURES ..........................................6 CUSTOMER SERVICE ....................................6 PACKAGE CONTENTS ....................................7 PRODUCT OVERVIEW ....................................7 Front View........................................7 Rear View ........................................8 Side View ........................................8 IR Remote Control ....................................9 USING THE REMOTE ..................................... - Page 3 Power ..........................................14 Source ..........................................15 Volume ..........................................16 EQ ............................................16 TROUBLESHOOTING ....................................17 TECHNICAL SUPPORT ....................................18 SPECIFICATIONS ......................................19 REGULATORY COMPLIANCE ................................20 Notice for FCC ......................................20 Radio Notice for FCC ..................................20 Radio Notice for Industry Canada ............................21...
-
Page 4: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. ... - Page 5 Take care to prevent damage to the power cord. Do not allow it to become crimped, pinched, walked on, or become tangled with other cords. Ensure that the power cord does not present a tripping hazard. Never unplug the unit by pulling on the power cord. Always grasp the connector head.
-
Page 6: Introduction
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-... -
Page 7: Package Contents
PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. 1x SB-200 Premium Slim Soundbar 1x IR Remote Control 1x AC Power Cord 1x 3.5mm Audio Cable... -
Page 8: Rear View
Rear View 3. Power: Pressing the button turns the soundbar On or puts it into Standby mode. When in Standby mode, the first LED illuminates solid red. 4. Source: Repeatedly press the button to cycle through the different inputs. The cycle order is AUX, OPTICAL, COAXIAL, HDMI®... -
Page 9: Ir Remote Control
IR Remote Control 1. POWER: Press the button to turn the soundbar On or to put it into Standby mode. 2. SOURCE: Press one of the buttons to select the indicated audio source. 3. VOLUME: Press the buttons to increase (VOL+) or decrease (VOL-) the volume level. -
Page 10: Replacing The Battery
Replacing the Battery The remote control uses a CR2025 battery. Perform the following steps to replace the battery. 1. Push the tab on the side of the battery tray towards the tray. 2. Pull the battery tray out of the remote control. 3. -
Page 11: Digital Optical
distributed from the TV to the soundbar and the CEC feature allows you to use your TV's remote control to control the volume level of the soundbar. To use the HDMI® ARC audio input your HDTV must support both the ARC and CEC features and the ARC feature must be turned on. -
Page 12: Digital Coaxial
Digital Coaxial Perform the following steps to connect the soundbar using the digital coaxial input. 1. Using a digital coaxial audio cable (not included), plug one end into the COAXIAL input on the soundbar, then plug the other end into the digital coaxial output on your audio source device (TV, AV receiver, etc.). -
Page 13: Bluetooth
2. Ensure that the AC power outlet provides AC voltage in the 100 ~ 240 VAC, 50/60 Hz input voltage range of the soundbar. 3. Plug one end of the included AC power cord to the AC~ socket on the soundbar, then plug the other end into the nearby AC power outlet. -
Page 14: Disconnecting
5. Select the MP34949 entry in the list. If you are prompted for a password, enter 0000 (four zeros). The voice prompt will say Paired and the LED Indicator will stop flashing and will glow solid blue. Disconnecting Use one of the following methods to disconnect your device from the soundbar. ... -
Page 15: Source
Press the Power button on the soundbar or the POWER button on the remote control again to put the soundbar back into Standby mode. The colored LED Indicator on the soundbar will extinguish and the red LED will illuminate. ... -
Page 16: Volume
Volume Press the + or - buttons on the soundbar or the VOL+ or VOL- buttons on the remote control to increase or decrease the volume level. Press the MUTE button on the remote control to turn audio muting on. Press the MUTE button again, the + or - buttons on the soundbar, or press the VOL+ or VOL- buttons on the remote control to turn audio muting off. -
Page 17: Troubleshooting
TROUBLESHOOTING Q1: Pressing the Power button on the soundbar or the POWER button on the remote control does not turn the soundbar On. A1: Ensure that the AC power cord is completely plugged into the soundbar and the AC power outlet. Check that the AC outlet is live by plugging something else (e.g. lamp) into it. -
Page 18: Technical Support
TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. -
Page 19: Specifications
SPECIFICATIONS Model 34949 Frequency Response 40Hz ~ 20kHz Nominal Impedance 8 ohms 1x HDMI®, 1x 3.5mm TRS analog stereo, Audio Inputs 1x digital optical, 1x digital coaxial Audio Input Sensitivity 500mV Bluetooth® Pairing Name MP34949 Bluetooth Version Supported Bluetooth Profiles A2DP, AVRCP Bluetooth Transmission Power 5dBm... -
Page 20: Regulatory Compliance
This FCC Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification to said product not expressly approved by Monoprice, including the use of non-approved antennas, could void the user’s authority to operate this device. -
Page 21: Radio Notice For Industry Canada
This IC RSS-210 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification to said product not expressly approved by Monoprice, including the use of non-approved antennas, could void the user’s authority to operate this device.
