9.3 Cycled Stimulation:

CYCLED Stimulation is a mode which delivers the set Pulse Rate
(Hz) Pulse Width (US) and Waveform (ASYM or SYM) in repeating
cycles comprised of "timing options" (RAMP ON, RAMP OFF, ON
TIME, OFF TIME and DELAY) in order to elicit repeated muscle
contractions and rest periods.
In the CYCLED mode both Channel 1 and Channel 2 output the set
cycle of timing options simultaneously, hence, the total Cycle time
for Channel 1 and Channel 2 must be the same. When ON
TIME/OFF TIME values are different between Channel 1 and 2, or
when a DELAY value is set, the device automatically calculates and
adjusts the OFF TIME of Channel 2 to ensure the total Cycle times
of Channel 1 and 2 remain the same. (See Section 8.2 Defining
Timing Options; RAMP TIME, ON TIME, OFF TIME & DELAY for
clarification)
CH 1
CH 2

9.4 Setting the CYCLED Mode

Step 1: Attach leadwires to Channel 1 (CH1) and if needed
Channel 2 (CH2) (Refer to section 6.1 Connect electrodes and to
lead wires) Step 2: Attach electrodes to the leadwires by following
the instructions on the electrode packaging.

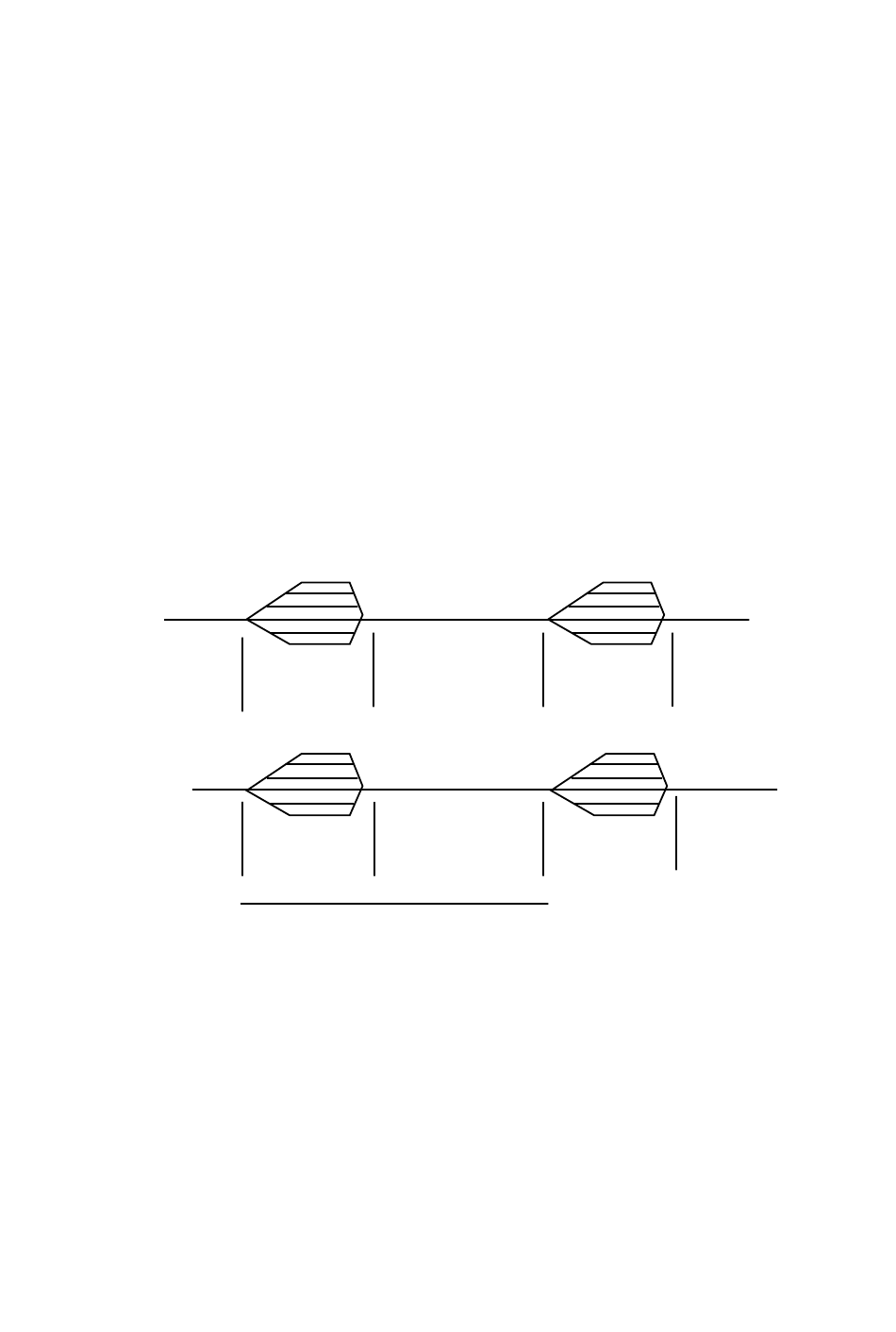

OFF Time
ON Time
OFF Time
ON Time
ONE CYCLE
