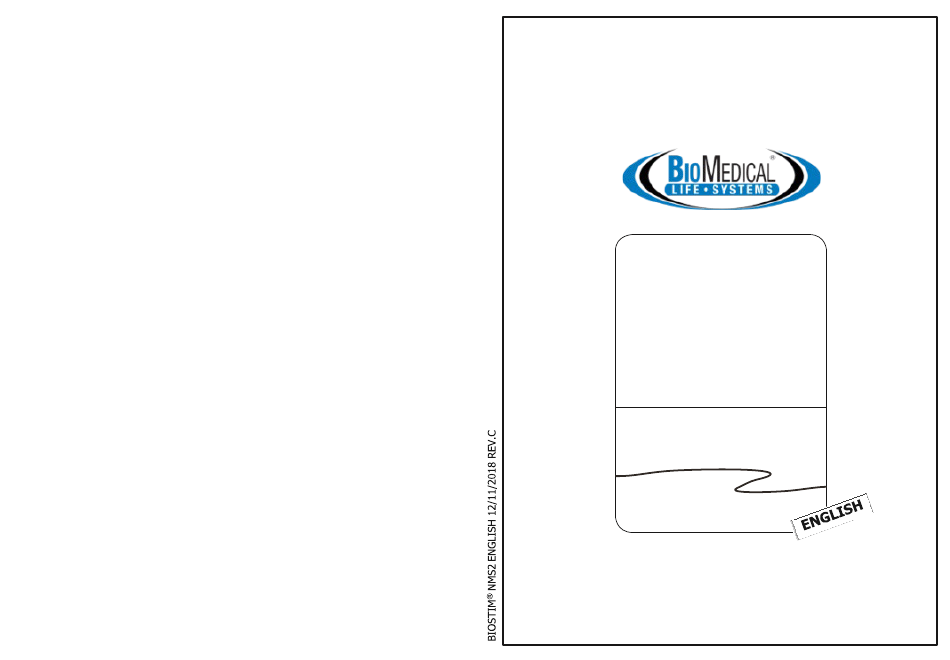

BioMedical Life Systems,Inc.
NOTES
Neuromuscular Stimulator
_______________________
BioStim
NMS2
®
_______________________
Manufactured and Distributed by :
_______________________
_______________________
_______________________
_______________________
_______________________
_______________________
_______________________
_______________________
_______________________
2
Bio Stim
®
NMS
_______________________
_______________________
_______________________
Instructions
_______________________
_______________________
Copyright © 2006 BioMedical Life Systems, Inc.
0
All rights reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BioStim NMS2 and is the answer not in the manual?

Questions and answers

Related Manuals for Biomedical Life Systems BioStim NMS2

Summary of Contents for Biomedical Life Systems BioStim NMS2

  • Page 1 Neuromuscular Stimulator _______________________ BioStim NMS2 ® _______________________ Manufactured and Distributed by : _______________________ _______________________ _______________________ _______________________ _______________________ _______________________ _______________________ _______________________ _______________________ Bio Stim ® _______________________ _______________________ _______________________ Instructions _______________________ _______________________ Copyright © 2006 BioMedical Life Systems, Inc. All rights reserved...
  • Page 2 Contents 1. Introduction to the BioStim® NMS²…………………………………..…4 1.1 Device Overview 1.2 Indications for Use 2. Patient Safety Information............5 2.1 Precautions 2.2 Caution 2.3 Adverse Reactions 2.4 Contraindications 3. Technical Data................7 4. Modes Explained (Factory Settings) …..……………………..……..……9 4.1 Programmable Mode Starting Parameters 4.2 Pre-Set Therapy Mode Parameters 5.

  • Page 3: Table Of Contents

    12. Safety and Technical Checks…………………………………..………….29 13. Maintenance and Care............29 14. Warranty................29 BIOSTIM NMS2 INSTRUCTION MANUAL Please consult your physician or prescribing practitioner for specific instructions regarding the settings of your device. Please read and understand this manual before beginning to use the BioStim ®...

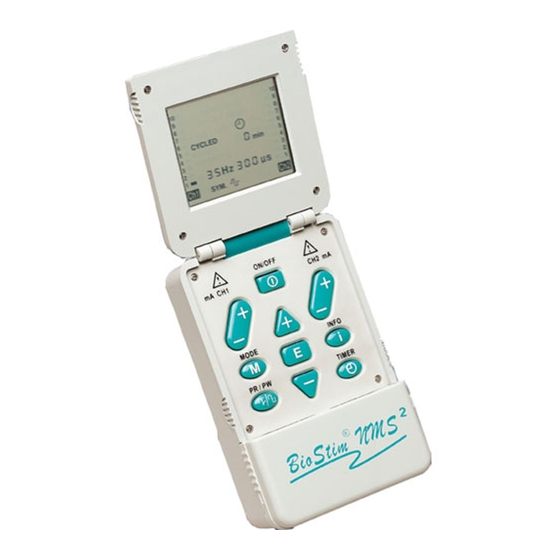

  • Page 5 1. Introduction BioStim® NMS2 1.1 Device Overview The BioStim NMS2 is a portable electrotherapy device which sends a gentle electrical current to underlying nerves and muscles via electrodes applied to the skin. The device is a NeuroMuscular Stimulator (NMS) used to stimulate muscles for an array of conditions.
  • Page 6 2. Introduction BioStim® NMS2 2.1 Precautions should be taken when stimulation is used; • After recent surgical procedure where muscle contraction may disrupt the healing process. • After an acute trauma or fracture where there is a tendency to hemorrhage. •...
  • Page 7 3) NMS devices should not be used while driving, operating machinery or during any other activity in which involuntary muscle contraction may put the user at undue risk of injury. 4)Stimulation should not be applied over the carotid sinus. Severe spasm of the laryngeal and/or pharyngeal muscles may occur when electrodes are placed over the neck or mouth.
  • Page 8 4 electrodes (pads) Accessoires 1 Instruction Booklet 4 AA Batteries 1 Carry Pouch Only use accessories, electrodes, leadwires and batteries approved by BioMedical Life Systems, Inc. Size 3.9"x2.6"x1.3" (99mmx65mmx33mm) Weight 8 oz (226g) 4 AA Batteries, type LR6 Power supply...
  • Page 9 Guidance and Manufacturer’s declaration- electromagnetic emissions This device is intended for use in the electromagnetic environment specified below. The customer or the user should assure that it is used in such an environment. Emissions Test Compliance Electromagnetic environment- guidance Group 1 This device uses RF RF emissions energy only for its...
  • Page 10 4. Modes Explained 4.1 Programmable Mode Starting Parameters: There are 3 Programmable Modes on the BioStim® NMS 1. Constant; 2 Cycled; 3 Reciprocal • Each of the three programmable modes has starting parameters, however the parameters may be adjusted by the user. •...
  • Page 11 4.2 Pre-Set Therapy Mode Parameters: There are 8 Pre-Set Therapies in the BioStim® NMS². Note: Settings in the following THERAPY modes are FIXED and cannot be changed. If custom settings are needed, please see Programmable Modes Explained; (Section 9) Therapy Stimulation Pattern;...
  • Page 12 Therapy Constant Ramp On/Off Asymmetrical Biphasic Wave On Time 10Hz 200μS Off Time Therapy Cycled Ramp On/Off Symmetrical Biphasic Wave On Time 35Hz 400μS Off Time Therapy Cycled Ramp On/Off Symmetrical Biphasic Wave On Time 35Hz 50μS Off Time 5. Batteries 5.1 Batteries In order to maintain the functional operation of the BioStim NMS², the batteries will have to be changed periodically.
  • Page 13 They are consumable supplies and are not covered under the device warranty. • Only use accessories approved by BioMedical Life Systems, Inc. Use of non-approved accessories may affect the performance of the device, cause injury and void the device warranty.
  • Page 14 7. Graphic Symbol Definitions Refer to An IEC 601-1 safety operating standard (type BF) instructions We herewith declare that the above- mentioned product meets the provisions of the Medical Device . 0086 7.1 BioStim® NMS² Button Descriptions Button Symbol Button Function ON/OFF AMPLITUDE CONTROL...
  • Page 15 Basic Button Functions: Button 1 "On/Off" Key: This button is used to turn the device on or off. Button 2 & 3 "Amplitude Control" Keys: These buttons are used to begin or adjust the intensity flow of energy through the lead wires to the electrodes.
  • Page 16 8.1 Toggling through the Modes: 1) Turn the device on or (1) "On/Off" Key 2) Choose a Mode by pressing the "Mode" Key (5) repeatedly until the mode or therapy you wish to use is displayed on the screen. The following diagram demonstrates the order in which pressing the "Mode"...
  • Page 17 RAMP ON: Is the amount of time in seconds the device itensity ramps up from the OFF Time to the maximum intensity of the ON Time in each cycle. RAMP OFF: Is the amount of time in seconds the device intensity ramps down from the ON Time to the OFF Time in each cycle.
  • Page 18 DELAY: The amount of time in seconds between the begininning of Channel 1 cycle and beginning 2 cycle. (DELAY is available in the CYCLED mode only). The DELAY can be adjusted from 1-99 seconds. Note: If a "DELAY" value is set in the CYCLED mode, the number of seconds set for the DELAY will be automatically deducted from the OFF TIME of Channel 2, as both Channel 1 and Channel 2 total cycle times must be the same.
  • Page 19 Step 3: Press the +(4) key until the numeric value for RAMP ON flashes on the screen. Step 4: Increase or decrease the value of the flashing number by pressing the +(4) and/or -(9) keys. Step 5: Press the "Enter" (6) key to accept the set value.
  • Page 20 Step 1: Turn the device OFF and then back ON by pressing the "ON/OFF Key" (1) Step 2: Press the "PR/PW" (8) key repeatedly until the parameter you desire to change is flashing Step 3: Use the +(4) and -(9) keys to increase/de crease or change the value.
  • Page 21 Step 2: Press the "Timer" Key (10) until a small clock appears on the display and "0" min is flashing. Step 3: Immediately press the +(4) and -(9) keys to increase/decrease the number of minutes. If the timer stops flashing before the desired value is set, press the "Timer" key (10) again until the time blinks, and resume...
  • Page 22 or Turn the device OFF and back ON by pressing the "ON/OFF" Key (1) Step 3: To activate the lock hold down both the "ENTER" E (6) key and the+ (4) A key simultaneously for approximately 3 seconds until the Clock symbol flashes on the LCD screen.

  • Page 23: Programmable Modes Explained

    Step 3: Press and hold down both the "Timer" Key (10) the Channel 2 intensity key (3) in the "+" direction for approximately 3 seconds. When done correctly, the LCD will "blank out" except for the clock symbol, with a 2 digit number underneath, and if applicable, bars on the left hand side of the screen will appear.

  • Page 24: Setting The Const Mode

    Note: Use of the Constant Mode or a Pulse Rate greater than 60Hz with a symmetrical biphasic square waveform should be used for the relaxation of muscle spasms only. Use of constant stimulation and/or rates above the normal physiological range (e.g., greater than 60Hz) could lead to rapid onset of muscle fatigue, making the device less effective in producing repeated forceful muscle contractions.

  • Page 25: Cycled Stimulation

    9.3 Cycled Stimulation: CYCLED Stimulation is a mode which delivers the set Pulse Rate (Hz) Pulse Width (US) and Waveform (ASYM or SYM) in repeating cycles comprised of "timing options" (RAMP ON, RAMP OFF, ON TIME, OFF TIME and DELAY) in order to elicit repeated muscle contractions and rest periods.

  • Page 26: Reciprocal Stimulation (Recipr)

    Step 3: Attach electrodes to the body per the instructions given by the prescribing practitioner. Step 4: Turn device on by pressing the "ON/OFF" Key (1) Step 5: Press the "Mode" Key (5) until "CYCLED" appears on the screen. The last settings used are displayed. The factory settings are displayed if never used.

  • Page 27: Setting The Reciprocal (Recipr) Mode

    (RAMP ON, RAMP OFF, ON TIME, OFF TIME and DELAY) in order to elicit repeated muscle contractions and rest periods. In the RECIPR mode Channel 1 and Channel 2 cycles alternate. Therefore, Channel 1 and Channel 2 timing options can be set completely independent of one another.

  • Page 28: Using Therapy Modes 1-8

    "-" direction. Using THERAPY Modes 1-8 There are eight pre-programmed therapies to choose from in the BioStim NMS2 device. These therapies are "fixed" and cannot be altered. To view the settings refer to section 4.2 (Pre-Set Therapy Mode Parameters).

  • Page 29: Malfunctions

    Opening the device case voids the warranty. Please contact the dealer from whom the device was purchased. If they are unable to assist you, please contact: BioMedical Life Systems, Inc. 1954 Kellogg Avenue Carlsbad, California 92008-6581 USA Tel: (1) (800) 726-8367...

  • Page 30: Safety And Technical Checks

    LIMITED WARRANTY (USA only, unless otherwise noted)* BioMedical Life Systems, Inc. promises to the original consumer purchaser to repair or, at the option of BioMedical Life Systems, Inc., to replace any NeuroMuscular Stimulator which malfunction is or proves defective in materials or workmanship under nemal use...
  • Page 31 Life Systems, Inc. will provide all labor and parts necessary to correct such defects or malfunctions free of charge. If the product is no longer available, BioMedical Life Systems, Inc. reserves the right to substitute a comparable product. The consumer-purchaser is responsible for all shipping charges when returning the device to the manufacturer or designated service facility.
