iNels RFSG-1M Quick Start Manual

RFSG-1M
Wireless contact converter
EN
Konverter ulaznog kontakta
RS
1M
Compatibility / Kompatibilnost
The RFSG-1M converter is compatible with all iNELS RF Control switching components.
Assembly / Montaža
mounting into switchboard
montiranje u ormar
Radio frequency signal penetration through various construction materials /
RFRP-20
Indication, manual control / Indikacija, ručna kontrola
LED Un

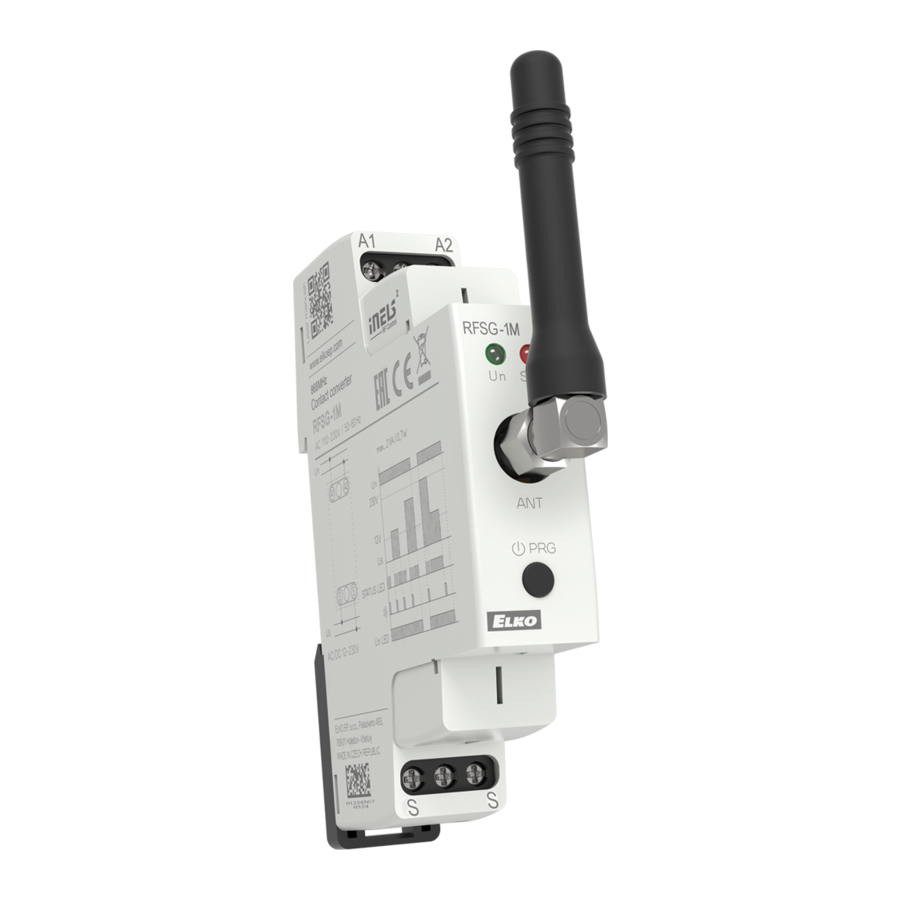

RFSG-1M
LED STATUS
Un STATUS
antenna connector /
konektor za antenu
ANT.
TEST
button /
TEST taster
Programming / Programiranje
Press of programming button on ac-
1
tuator (e.g. RFSA-61B) for 1 second will
activate actuator into programming
mode. LED is flashing in 1s interval.
Pritiskom na taster za programiranje
na preklopnom elementu (npr. RF-
SA-61B) tokom 1 sekunde, element
1 x > 1s
se prebacuje u režim programiran-
PROG
ja. LED trepće u intervalima od 1
sekunde.
80 - 95 %
wooden structures
with plaster boards
drvena konstuk-
cija sa gipsanim
pločama
• LED Un - green - supply voltage indication.
• LED STATUS - red - transmission indication.
• Programming is performed using the TEST button.
2
1 x > 4s
TEST
RFSG-1M pretvarač je kompatibilan sa svim preklopnim elementima iNELS RF Control
sistema.
Connection / Konekcija
Prenos radio frekvencijskih signala kroz razne građevinske materijale
80 - 90 % 60 - 90 %
common glass brick walls
staklo zid od cigle
• LED zeleno - indikacija napona napajanja.
• LED STATUS - crvena - indikacija prenosa.
• Programiranje se vrši pomoću tastera TEST.
Press and hold the TEST button on RF-
SG-1M for more than 4s to automati-
cally assign the RFSG-1M transmitter
to the actuator.
Na RFSG-1M, pritiskom na dugme
TEST> 4s automatski će se dodeliti
kontroler RFSG-1M.
Un
A1 A2
S S
AC / DC 12-230V
20- 60 %
reinforced
concrete
armirani beton metalne pregrade
Press of programming button on ac-
3
tuator RFSA-61B shorter then 1 sec-
ond will finish programming mode,
LED switches off.
Pritiskom na taster za programiranje
na RFSA-61B kraćim od 1 sekunde
prekida se režim programiranja, LED
1 x < 1s
se gasi.
PROG
02-36/2015 Rev.4
0 - 10 %
metal partitions
