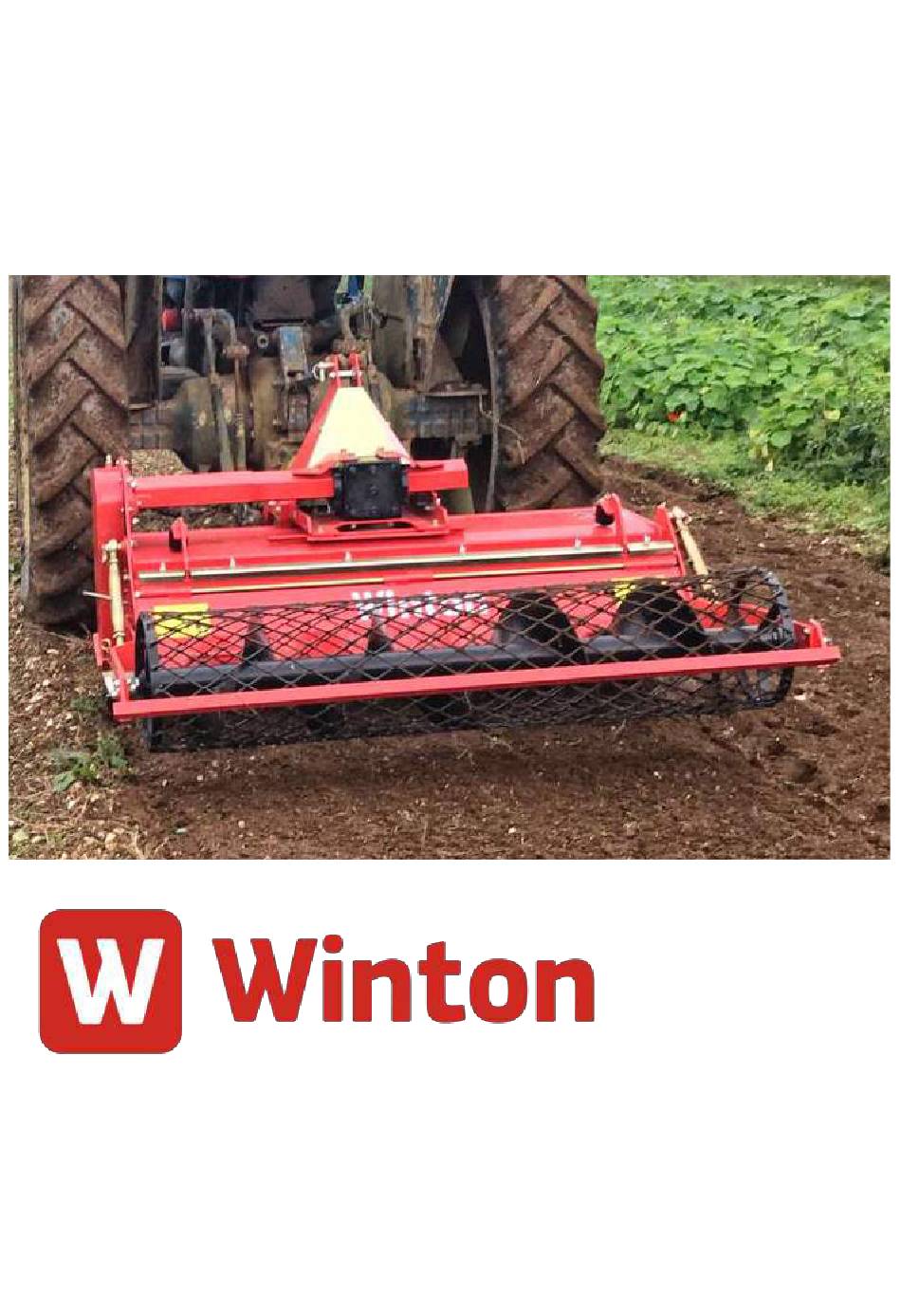

- Page 1 WINTON STONE BURIER WSB SERIES OWNERS MANUAL PLEASE READ THIS MANUAL BEFORE OPERATING MACHINERY...
- Page 2 This manual should be considered a permanent part of this machine and should remain with it even if the machine is subsequently sold. Winton continually seeks advancements in its product design and quality. Therefore, while this manual contains the most current product information available at the time of printing, there may be minor discrepancies between your machine and this manual.
-
Page 3: General Safety Information
Misuse: This machine is designed for use with compact tractors, and should be used only for the indicated purpose. Winton does not take responsibility if the machine is used for any other purpose. Children must not operate the machine under any circumstance. - Page 4 General Safety Information (continued) Machinery Pre-Use Checks On receipt of your new Winton machine and again within the first 4 hours of use, or the ‘shake in’ period as we like to call it, we always recommend checking over the machine.
-
Page 5: Table Of Contents
Parts Diagram 3 Parts List 3 Parts Diagram 4 Parts List 4 Parts Diagram 5 Parts List 5 Parts Diagram 6 Parts List 6 Parts Diagram 7 Parts List 7 Notes PTO Shaft Resizing Winton Product Warranty Trouble Shooting Winton WSB... -
Page 6: Dimensions And Specifications
No. Of Blades Recommended Tractor HP 20-28 hp 25-30 hp 30-45 hp Width 125cm 145cm 165cm Depth 150cm 150cm 150cm Height 90cm 90cm 90cm PTO Shaft Size 70-90cm 70-90cm 70-90cm Linkage Size Category 1 Category 1 Category 1 Winton WSB... -
Page 7: Installation & Set Up
The blades must be at the same distance from the ground on both sides of the implement. Adjust the tractor lower link arm adjusters 13 to prevent any excessive movement to the side. A movement of about 50mm each side (2 inches) is recommended. 11 12 Winton WSB... - Page 8 Gear oil & chain reservoir oil level. [Sections 5 & 6] • Drive chain tension. [Section 7] • Tilling depth adjustment. [Section 8] • Lubrication/grease points. [Section 10] • Tightness of all bolts, nuts and screws. • All protective guards are in place. Winton WSB...
-
Page 9: Operating Advice
Never lift the implement more than 25cm from the ground with the PTO driveline engaged or the driveline could be damaged. The maximum angle for the driveline with the PTO engaged is 20°. A greater angle may cause strong vibrations and/or damage to the machine. Winton WSB... - Page 10 Never operate on wet, slippery grass or soil or where the tyres are struggling to grip. If this is unavoidable, always work at a low speed and take care. Winton WSB...
-
Page 11: Blade Replacement
2 and nut 3 on the flange side. Changing Blades Remove the blades by unscrewing bolts 1 and nuts 3. Insert the blade/s 4. Replace bolts 1 and nuts 3. Ensure bolt head is on the blade side. Winton WSB... -
Page 12: Gear Oil Change & Check
Oil Change/Check Gearbox Remove plugs 1 and 2. The oil level should be up to the edge of level plug 1. Top up with oil (if required) using filler hole 2. Replace both plugs 1 and 2. Winton WSB... -
Page 13: Chain Reservoir Oil Change & Check
Top up with oil (if required) using filler hole 2. Replace both plugs 1 and breather 2. If an oil change is required, start by removing the remove old oil using an oil pump. Then replace this with new oil using the steps above. Winton WSB... -
Page 14: Chain Tensioning
After setting the tension, turn the blade rotor several times by hand to check that it rotates without encountering any excessive resistance. If the rotor seems to jam in a certain point, repeat the chain tensioning procedure from the beginning. Winton WSB... -
Page 15: Adjusting Tilling Depth
Use the bar 1 to twist both of the adjusters 2 (similar to tractor top linkage arms) to extend or shorten the arms. • Extending the arms will create a shallower tilling depth. Shorten the arms to lift the rear roller and achieve the maximum working depth. Winton WSB... -
Page 16: Scraper Bar Adjustment
If you find the roller is not spinning freely where soil is building up on the roller and not being removed (usually when ground is wet or in certain soil types), then clean off the roller and wind the bolts outwards to move the scraper bar away from the roller. Winton WSB... -
Page 17: Servicing & Maintenance
Apply grease to both of the rear roller bearings 2. There are easy to access grease points on the left and right of the roller on the inside of the bracket. *The periods recommended are based on normal operating conditions. Severe or unusual conditions may require more frequent maintenance. Winton WSB... - Page 18 Remove dirt from blades and the roller. Safety Guards: Prior to each use check the condition of the guards. Replace if damaged or worn. *The periods recommended are based on normal operating conditions. Severe or unusual conditions may require more frequent maintenance. Winton WSB...
-
Page 19: Offset/Side Shift
Manually push on the three point linkage to shift the unit to the desired position. • Fully tighten nuts 1 and 2 to secure the unit. Always ensure the PTO shaft is at a maximum angle of 15 degrees from the tractor to the machine. Winton WSB... -
Page 20: Parts Diagram
12. PARTS DIAGRAM 1 Winton WSB... -
Page 21: Parts List
A-frame plate weldment (R) MZ105.016 End sleeve weldment GB889-86 Nut M10 MZ105.037 Hook GB889-86 Nut M10 GB93-87 Spring washer 10 GB97.1-85 Plain washer 10 MZ105.131 Support for hook GB5783-86 Bolt M10x30 GB5782-86 Bolt M12x85 MZ105.130 Sleeve spacer MZ105.101 A-frame cover board Winton WSB... -
Page 22: Parts Diagram
14. PARTS DIAGRAM 2 Winton WSB... -
Page 23: Parts List
Front cover plate GB5783-86 Bolt M14x80 GB5783-86 Bolt M14x80 MZ105.021 Bracket top weldment (L) MZ105.011 Inner cover weldment MZ105.033 Bracket weldment (R) GB6170-86 Nut6 M12 MZ105.013 Rear cover plate (R) MZ105.029 Cover board top weldment MZ105.012 Guard skid weldment Winton WSB... -
Page 24: Parts Diagram
16. PARTS DIAGRAM 3 Winton WSB... -
Page 25: Parts List
Spring lock washer 12 [105/125/145] 40/48/56 GB889-86 Nut M12 [105/125/145] 40/48/56 MZ105.119 Right bend blade [105/125/145] 10/12/14 MZ105.028 Blade rotor MZ105.120 Left bend blade [105/125/145] 10/12/14 GB13871-92 Oil seal FB50x72x8 GB276.94 6209 Bearing 6209 GB893.1-86 Retaining ring 85 (88mm internal) Winton WSB... -
Page 26: Parts Diagram
18. PARTS DIAGRAM 4 Winton WSB... -
Page 27: Parts List
MZ105.019 Shock absorption block GB97.1-85 Plain washer 10 GB93-87 Spring lock washer 10 GB889-86 Nut M10 MZ105.117 Tooth MZ105.112 Short rubber pad MZ105.108 Presse plate (short) MZ105.107 Bolt with gripe MZ105.109 Presse plate (long) MZ105.111 Long rubber pad Winton WSB... -
Page 28: Parts Diagram
20. PARTS DIAGRAM 5 Winton WSB... -
Page 29: Parts List
GB13871-92 Oil seal FB45x72x8 GB276-94 Bearing 6307 GB893.1-86 Retaining ring 80 MZ105.127 Driving chain wheel small GB894.1-86 Retaining ring 32 GB1243.1-83 Sleeve roller chain GB889-86 Nut M8 GB93-87 Spring lock washer 8 MZ105.121 Cork pad GB5783-86 Bolt M8x25 Winton WSB... -
Page 30: Parts Diagram
22. PARTS DIAGRAM 6 Winton WSB... -
Page 31: Parts List
MZ105.023 Roller weldment GB889-86 Lock nut M10 GB97.1-85 Plain washer 10 MZ105.022 Scraper bar frame GB5783-86 Bolt M12x45 GB6170-86 Nut M10 GB889-86 Lock nut M12 GB7810-87 Bearing 90205 MZ105.020 Roller bracket arm (R) MZ105.015 Roller bracket arm (L) Winton WSB... -
Page 32: Parts Diagram
24. PARTS DIAGRAM 7 Winton WSB... -
Page 33: Parts List
Bevel gear 0.267.4601.00 Output shaft GB1096-79 Key B14x9x35 0.267.5001.00 Shaft with gear Adjusting shim 35.3x48 GB297-84 Bearing 30207 GB893.1-84 Retaining ring for hole 72 0.267.7100.00 Sleeve GB/T276-94 Bearing 6207 GB894.1-86 Retaining ring for shaft 35 Oil seal 35x72x10 Winton WSB... -
Page 34: Notes
NOTES Winton WSB... -
Page 35: Pto Shaft Resizing
PTO SHAFT RESIZING Safety: Ensure tractor & machine is stopped & keys out of ignition before carrying out any work. If you are not confident in carrying out the work consult your local supplier or mechanic. Most PTO driven implements are supplied with a standard sized PTO shaft. As all tractors vary this often means cutting it down to size. -
Page 36: Winton Product Warranty
We always strive to create great products, but when something does go wrong we have a strong network of resellers on hand throughout the UK to help out. Warranty Claims Before you get in touch here are 5 pieces of information your Winton reseller will need to progress your claim: •... -
Page 37: Trouble Shooting 1
Run at PTO speed 540 RPM Lower the working speed of tractor Insufficient Working Lower the gear of the tractor if struggling with engine power Depth Make several runs on harder soil Always consult your Winton dealer if you have any questions about your machine. - Page 38 Check rotor is not warped or damaged Gearbox Getting Check oil is at the correct level and of the correct type in the gearbox Excessively Hot and chain reservoir. Always consult your Winton dealer if you have any questions about your machine.
- Page 40 www.wintonmachinery.co.uk...
