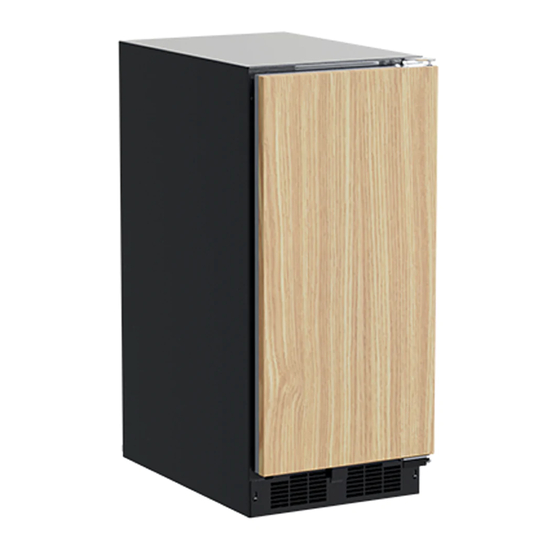

Marvel MLCR215 Owner's Manual
  1. Manuals
  2. Brands
  3. Marvel Manuals
  4. Refrigerator
  5. MLCR215
  6. Owner's manual

Marvel MLCR215 Owner's Manual

Hide thumbs Also See for MLCR215:
Table of Contents

Advertisement

Quick Links

Download this manual
OW NER'S G U IDE
O W N E R S G U I D E
M A R V E L U N D E R C O U N T E R R E F R I G E R AT I O N
M A R V E L U N D E R C O U N T E R R E F R I G E R A T I O N
F O R M O D E L # M L R E 2 2 4
F O R M O D E L # M LC R 2 1 5
T H E O R I G I N A L R E F R I G E R A T I O N E X P E R T S S I N C E 1 8 9 2
T H E O R I G I N A L R E F R I G E R A T I O N E X P E R T S S I N C E 1 8 9 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MLCR215 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Marvel MLCR215

Summary of Contents for Marvel MLCR215

  • Page 1 OW NER’S G U IDE O W N E R S G U I D E M A R V E L U N D E R C O U N T E R R E F R I G E R AT I O N M A R V E L U N D E R C O U N T E R R E F R I G E R A T I O N F O R M O D E L # M L R E 2 2 4 F O R M O D E L # M LC R 2 1 5...
  • Page 2 We would love to see how your Marvel product looks in its new home. Send us photos at marketing@marvelre- frigeration.com, and we might feature your Marvel home...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Tip: Click on any section below to jump directly there Safety Important Safety Instructions Installation Unpacking Your Appliance Electrical Cutout & Product Dimensions Side-by-Side & Stacking Installations Installing the anti-tip device Door Reversal Installing The Water Supply Maintenance Care and Cleaning Stainless Steel Maintenance...

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS Important Safety Instructions Warnings and safety instructions appearing in this guide are not meant to cover all possible conditions and situa- tions that may occur. Common sense, caution and care must be exercised when installing, maintaining or operating this appliance.

  • Page 5: Unpacking Your Appliance

    UNPACKING YOUR APPLIANCE CAUTION WARNING If the appliance was shipped, handled or stored in other EXCESSIVE WEIGHT HAZARD than an upright position for any period of time, allow the ap- Use two or more people to move product. pliance to sit upright for a period of at least 24 hours before Failure to do so can result in personal injury.

  • Page 6: Electrical

    ELECTRICAL Electrical Connection A grounded 115 volt, 15 amp dedicated circuit is required. This product is factory equipped with a power supply cord that has a three-pronged, grounded plug. It must be plugged into a mating grounding type receptacle in accor- dance with the National Electrical Code and applicable Do not remove local codes and ordinances.

  • Page 7: Cutout & Product Dimensions

    Prepare Site 14 15⁄16” (379 mm) Your Marvel product has been designed for either free- standing or built-in installation. When built-in, your unit does not require additional air space for top, sides, or rear. However, the front grille must NOT be obstructed, and clearance is required for an electrical connection in the rear.
  • Page 8 Side-by-Side Installation 3. Place bracket over holes and attach to unit with two screws removed in step 2 using a T-25 Torx driver. Two units may be installed side-by-side. Tighten screws fully. Cutout width for a side-by-side installation is the cutout 4.

  • Page 9: Installing The Anti-Tip Device

    INSTALLING THE ANTI-TIP DEVICE Anti-Tip Bracket 1. Slide unit out so screws on top of unit are easily accessible. 2. Remove the two screws from the opposite side of the hinge assembly using a T-25 Torx driver (see below). Place bracket over holes and attach to unit with two screws removed in step 2 using a T-25 Torx driver.

  • Page 10: Door Reversal

    DOOR REVERSAL Door Adjustments To Reverse the Door Hinge Cover Hinge cover included with the literature bag is optional. To install hinge cover: 1. Press hinge cover squarely over hinge. Hinge Cover Remove arrow clips: arrow clip from hinge mounting holes. Door Alignment and Adjustment 2.
  • Page 11 DOOR REVERSAL 1. Install gasket into channel, beginning at one corner and bottom hinge. Retain shoulder washers; they will be pressing in firmly. reused. 2. Press down on middle 2. Insert arrow clips into holes horizontal portion of gasket until it adheres to the door surface.

  • Page 12: Installing The Water Supply

    INSTALLING THE WATER SUPPLY Prepare Plumbing CAUTION CAUTION Plumbing installation must observe all state and local codes. All water and drain connections MUST BE made by recommendations and instructions may result in damage and/or harm. Water Supply Connection old hose set. CAUTION •...
  • Page 13 INSTALLING THE WATER SUPPLY 4. Locate water valve inlet and connect to valve.
  • Page 14 ICE MAKER OPERATION Ice Maker Operation Ice Cube Thickness Adjustment Interval - As Required. When the ice bucket is full, the ice making mechanism will On ice maker equipped models, adjust the cube size cool and maintain the ice supply. by changing water amount injected into the ice maker assembly as follows: NOTE...

  • Page 15: Care And Cleaning

    CARE AND CLEANING Exterior Cleaning Interior Cleaning Stainless door panels, handles and frames can discolor Disconnect power to the unit. when exposed to chlorine gas, pool chemicals, saltwater or cleaners with bleach. Clean the interior and all removed components using a mild nonabrasive detergent and warm solution applied with a soft Keep your stainless unit looking new by cleaning with a sponge or non-abrasive cloth.
  • Page 16 CARE AND CLEANING To Defrost: Cleaning Condenser 1. Disconnect power to the unit. Interval - every six months 2. Remove ice bucket and discard ice. of dust and lint, and clean the condenser when necessary. Depending on environmental conditions, more or less frequent cleaning may be necessary.

  • Page 17: Stainless Steel Maintenance

    STAINLESS STEEL MAINTENANCE Background NOTE Stainless steel does not stain, corrode, or rust as easily as ordinary steel, but it is not stain or corrosion proof. Stain- less steels can discolor or corrode if not maintained prop- Stainless steel products should never be installed, or stored erly.

  • Page 18: Extended Non-Use

    EXTENDED NON-USE For questions regarding winterization, please call Marvel at Extended Non-Use 616.754.5601. Vacation/Holiday - Prolonged Shutdown The following steps are recommended for periods of CAUTION extended non-use: 1. Remove all consumable content from the unit. Damage caused by freezing temperatures is not covered by the warranty.

  • Page 19: Obtaining Service

    OBTAINING SERVICE If Service is Required: • If the product is within the first year warranty period please contact your dealer or call Marvel Customer Service at 616.754.5601 for directions on how to obtain warranty coverage in your area. •...

  • Page 20: Troubleshooting

    TROUBLESHOOTING Before You Call for Service WARNING troubleshooting guide below. Locate the problem in the Electrocution Hazard guide and refer to the cause and its remedy before calling • Never attempt to repair or perform maintenance on for service. The problem may be something very simple the appliance until the main electrical power has been disconnected.
  • Page 21 TROUBLESHOOTING Ice Quality Troubleshooting the Drain Pump Is there mineral scale build up on the evaporator NOTE plate If the drain pump reservoir (not the ice machine bin) Is there a high mineral content in the water? The water If the ice machine is not working, check the following: Are food items being stored in the ice bin? Remove •...

  • Page 22: Product Liability

    The part that caused the damage must be returned to Marvel in its entirety. The part must be clearly labeled with the serial number of the unit it was removed from, the date, and the servicer who removed the part.

  • Page 23: Warranty Claims

    Claims must be submitted online at • Final billing - Remodel www. marvelservice . co m Warranty parts will be shipped at no charge after Marvel • 60 day submittal d eadline from date of completed confirms warranty status. Please provide the model, serial service number, part number and part d escription.

  • Page 24: Ordering Replacement Parts

    Warranty parts will be shipped at no charge after Marvel confirms warranty status. Please provide the model, serial number, part number and part description. Some parts will require color or voltage information.

  • Page 25: R600A Specifications

    PERSONNEL DO HOT PUNCTURE REFRIGERANT TUBING refrigeration system. RISK Of FIRE OR EXPLOSION. FIAMHA_ B LE REFRIGERANT USED. CONSULT Never substitute Marvel OEM replacement parts REPAIR IIANUAVOWHER'S GUIDE BEFORE ATTEMPTING TO SERVICE THIS PRODUCT. ALL SAFETY PRECAUTIONS HUST BE FOUOWEO.
  • Page 26 R-600A SPECIFICATIONS/LABELING WARNING R-600a equipped products are labeled (both the unit and the compressor). Only skilled and well trained service technicians permitted to service R-600a equipped products. R-600a is colorless and odorless. All tools and equipment must be approved for use with R-600a refrigerant.
  • Page 27 Evacuate/reclaim via the piecing pliers to ensure the When re-brazing, the system must be purged with dry system is empty of R-600a before any system work is nitrogen and at least one access point open to the performed. atmosphere. When re-brazing, proper ventilation is required along with constant monitoring for the presence of R600a refrigerant.
  • Page 28 The low side of the refrigeration system (evaporator, Proper ventilation during service is required. compressor and suction line) must be leak tested with the compressor off (equalized pressure). Never apply a torch to a charged R-600a refrigeration system. RECHARGING No air is ever to be allowed inside the refrigeration system Use OEM replacement service parts and do not alter the (R-600a refrigerant or dry nitrogen only).

  • Page 29: System Diagnosis Guide

    System Diagnosis Guide REGRIGERATION SYSTEM DIAGNOSIS GUIDE System Suction Suction Compressor Condenser Capillary Evaporator Wattage Condition Pressure Line Discharge Tube Normal Normal Slightly Very hot Very hot Warm Cold Normal below room temperature Overcharge Higher than Very cold Slightly warm Hot to warm Cool Cold...

  • Page 30: Defrost

    Defrost This unit defrosts every 4 hours of compressor runtime for 45 minutes. If you have verified that the unit does not have an ambient air leak, utilize the Control Operation - Service section and adjust unit to defrost every 3 hours for 60 minutes.

  • Page 31: Replace Ice Maker

    REPLACE ICE MAKER The new ice maker assembly you have recieved will have a Install Ice Maker plug-in connection. In some instances, you may need to cut 1. If ice maker sits on evaporator (as shown), be sure to plug from cable and hard-wire the connections. apply the included Alumilastic paste.
  • Page 32 For designated Marvel Professional product, Marvel offers a one year extension of the two year warranty coverage from the date of purchase, free of charge. To take advantage of this third year warranty, you must register your product with Marvel within 60 days from the date of purchase at marvelrefrigeration.com and provide proof of purchase.
  • Page 33 Marvel Refrigeration 1260 E. Van Deinse St. Greenville MI 48838 616.754.5601 All specifications and product designs subject to change without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, replacements or compensation for previously purchased products.
