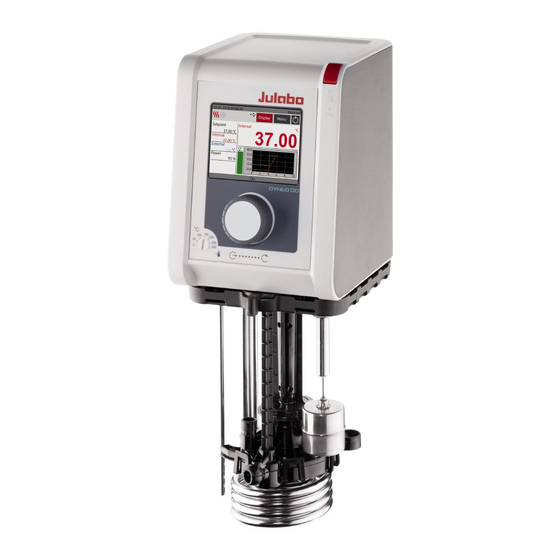

Julabo DYNEO DD Original Operating Manual
  1. Manuals
  2. Brands
  3. Julabo Manuals
  4. Laboratory Equipment
  5. DYNEO DD
  6. Original operating manual

Julabo DYNEO DD Original Operating Manual

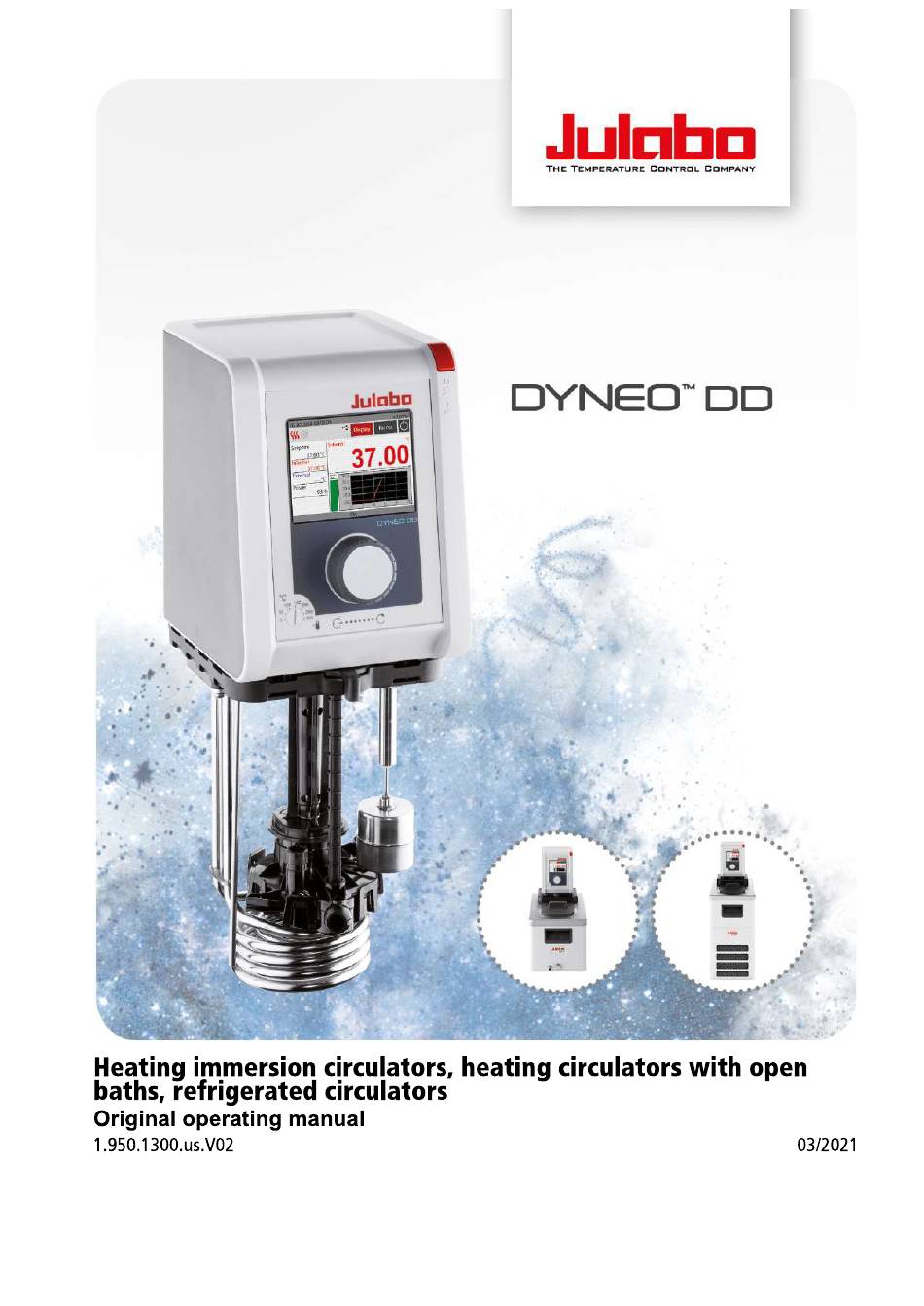

Heating immersion circulators, heating circulators with open baths, refrigerated circulators
