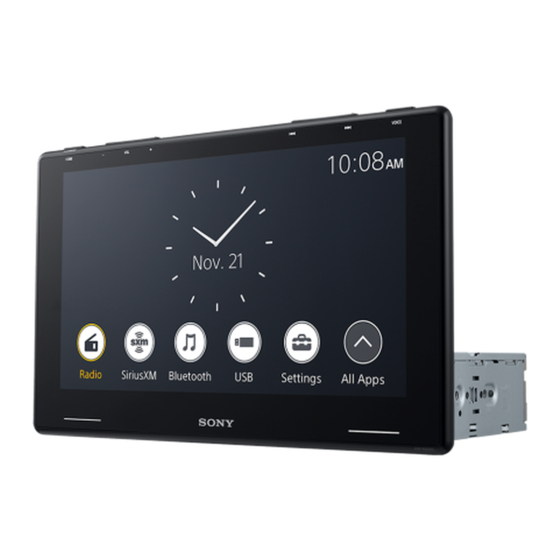

Sony XAV-9500ES Operating Instructions Manual
Hide thumbs
Also See for XAV-9500ES:
- Operating instructions manual (150 pages) ,
- Help manual (119 pages) ,
- Help manual (134 pages)
Related Manuals for Sony XAV-9500ES
Summary of Contents for Sony XAV-9500ES
- Page 1 5-021-903-25(1) AV RECEIVER Operating Instructions To cancel the demonstration (Demo Mode) display, see page 7. To switch the FM/AM tuning step, see page 7. XAV-9500ES(IN) https://rd1.sony.net/help/ev/xav-95/h_zz/ XAV-9500ES...
- Page 2 Services offered by third parties may be changed, located on the bottom of the chassis. suspended, or terminated without prior notice. Sony does not bear any responsibility in these sorts The validity of the CE marking is restricted to only of situations.
- Page 3 Important notice Caution IN NO EVENT SHALL SONY BE LIABLE FOR ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR OTHER DAMAGES INCLUDING, WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF DATA, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, DOWNTIME, AND PURCHASER’S TIME RELATED TO...
- Page 4 Guide to Parts and Controls Main Unit and Remote Commander Main unit The VOL (volume) +/ (next) buttons have a – [Apple CarPlay]/[Android Auto]: move to the tactile dot. previous/next content. Press and hold to: HOME – [Radio]: tune into a station automatically Displays the HOME screen (page 6).
- Page 5 Custom Key 1/2 (play/pause) Registers functions (Mute, Disp. Off, Source / (previous/next) Change, Home, Next, Previous, Vol +, Vol -, Functions differently depending on the selected None). source: To register, select [Settings] [Customize] – [Radio]: select a preset station. [Custom Key].
- Page 6 Status indication (left side) Screen Displays (back) Returns to the previous display. Playback screen: (list) Opens the list. The available lists differ depending on the source. Status indication (right side) Clock Displays the time which was set on the Date/Time setting. (mute) Lights up when the sound is muted.
- Page 7 When using Android Auto with a USB cable, When setting the BLUETOOTH setting of the connect the Android Auto compatible Android™ BLUETOOTH device to [ON], select “XAV-9500ES” on phone to the unit with the USB cable. the setting screen of your BLUETOOTH device and then proceed to the pairing steps.
- Page 8 Additional Information To update the firmware, visit the support site, then follow the online instructions. Precautions URL: https://www.sony-asia.com/support To update the firmware with USB tethering • Power antenna (aerial) extends automatically. • When you transfer ownership or dispose of your...
- Page 9 • Some stationary blue, red, or green dots may your unit that are not covered in this Operating appear on the monitor. These are called “bright Instructions, consult your nearest Sony dealer. spots” and can happen with any LCD. The LCD panel is precision-manufactured with more than 99.99% of its segments functional.
- Page 10 Wi-Fi section Specifications Compatible standards: IEEE802.11 a/n/ac Monitor section Radio frequency: 5 GHz band (5.725 GHz - 5.850 GHz) Display type: Wide LCD color monitor Output power: Dimensions: 10.1 in/257 mm Max. conducted 10 dBm System: TFT active matrix Frequency Tolerance: 20 ppm Number of pixels: 2,764,800 pixels (1280 ×...
- Page 11 The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sony Group Corporation and its subsidiaries is under license. Other trademarks and trade names are those of their respective owners.
- Page 12 Note on the power supply lead (yellow) When connecting this unit in combination with other stereo components, the amperage rating of the car circuit to which Connection/Installation the unit is connected must be higher than the sum of each component’s fuse amperage rating. Cautions Note on installing in cars with a start-stop system The unit may restart when starting the engine from start-...
- Page 13 Ensuring the mounting location of the unit Before installing the unit, consult the installer for details on the installation of the unit and the display. • Make sure that the distance from the front surface (reference surface) of the mounted unit to the surface of your car’s center cluster is within 22 mm in).
- Page 14 Rear panel cover (2) Parts List for Installation Power supply leads (1) Connection cables (Audio/Camera) (1) This parts list does not include all the package contents. Mounting screw Microphone (1) (5 × max. 9 mm ×...
- Page 15 Connection • To prevent short circuits, insulate leads with a cover or tape. • Note that the unit may be damaged if it is connected incorrectly or by short circuits at the leads. EXT IN 1 EXT IN 2 Camera* Camera* Rear view camera*...
- Page 16 To the parking brake switch lead *1 Not supplied *2 Speaker impedance: 4 Ω to 8 Ω × 4 The mounting position of the parking brake *3 RCA pin cord (not supplied) switch lead depends on your car. *4 Power amplifier (not supplied) Be sure to connect the parking brake lead (light *5 Subwoofer (not supplied) green) of the power supply leads ...
- Page 17 Decide the installation location on the Installing the microphone dashboard, then clean the attachment surface. To capture your voice during handsfree calling, you Choose a flat surface where: need to install the microphone . the GPS antenna (aerial) can be positioned horizontally.
- Page 18 Making an improper connection may damage the unit. Tighten the screw firmly on the USB cable URL: https://www.sony-asia.com/support holder to secure the USB Type-C • Consulting the dealer or an experienced extension cable .
- Page 19 You may not be able to install this unit in some Width makes of Japanese cars. In such a case, consult your (within 25 mm (1 in), in 5 steps) Sony dealer. Example Adjusting the depth of the display ...
- Page 20 Slide the connector bracket to decide the Slide the connector bracket up or down to appropriate depth position. decide the appropriate height position. Adjustable depth: within 20 mm ( in) (), in Adjustable height: within 60 mm (2 in) (), 3 steps, in 10 mm ( in) pitch ().
- Page 21 Adjusting the width of the display Adjust the display angle to decide the appropriate angle. position Adjustable angle: -10° to +10°, in 3 steps Remove the 2 pre-installed screws on the top side and loosen the 1 installed screw on the bottom side for left/right adjustment.
- Page 22 At the desired positon, tighten the 2 screws Making sure the mounting positions on the top side firmly to secure the of the display connector bracket. Be careful not to pinch your fingers or scratch the center cluster panel of your car when attaching the display to the unit.
- Page 23 If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer. Tighten the screw firmly. When you tighten a screw, be careful not to apply too much torque as doing so may damage the screw (the torque value should be from 1.5 N•m to 2.0 N•m).
- Page 24 OPEN and “applets” incorporated into the SOFTWARE) is SOURCE COMPONENTS included in the SOFTWARE owned by SONY or one or more of the THIRD- from time to time, and the applicable terms and PARTY SUPPLIERS.
- Page 25 EXPORT AND OTHER REGULATIONS applicable to Open Source Components require SONY to make an offer to provide source code in You agree to comply with all applicable export and connection with the SOFTWARE, such offer is re-export restrictions and regulations of the area or hereby made.
- Page 26 SONY AND EACH OF THE THIRD-PARTY SUPPLIERS violation of and/or to enforce this EULA, including, (for purposes of this Section, SONY and each of the but not limited to, immediate termination of your THIRD-PARTY SUPPLIERS shall be collectively use of the SOFTWARE, if SONY believes in its sole referred to as “SONY”) SHALL NOT BE LIABLE FOR...
- Page 27 This offer is valid to anyone in receipt of this information. Please note that Sony cannot answer or respond to any inquiries regarding the content of the source code.
- Page 28 ©2021 Sony Corporation Printed in Thailand https://www.sony.net/...
