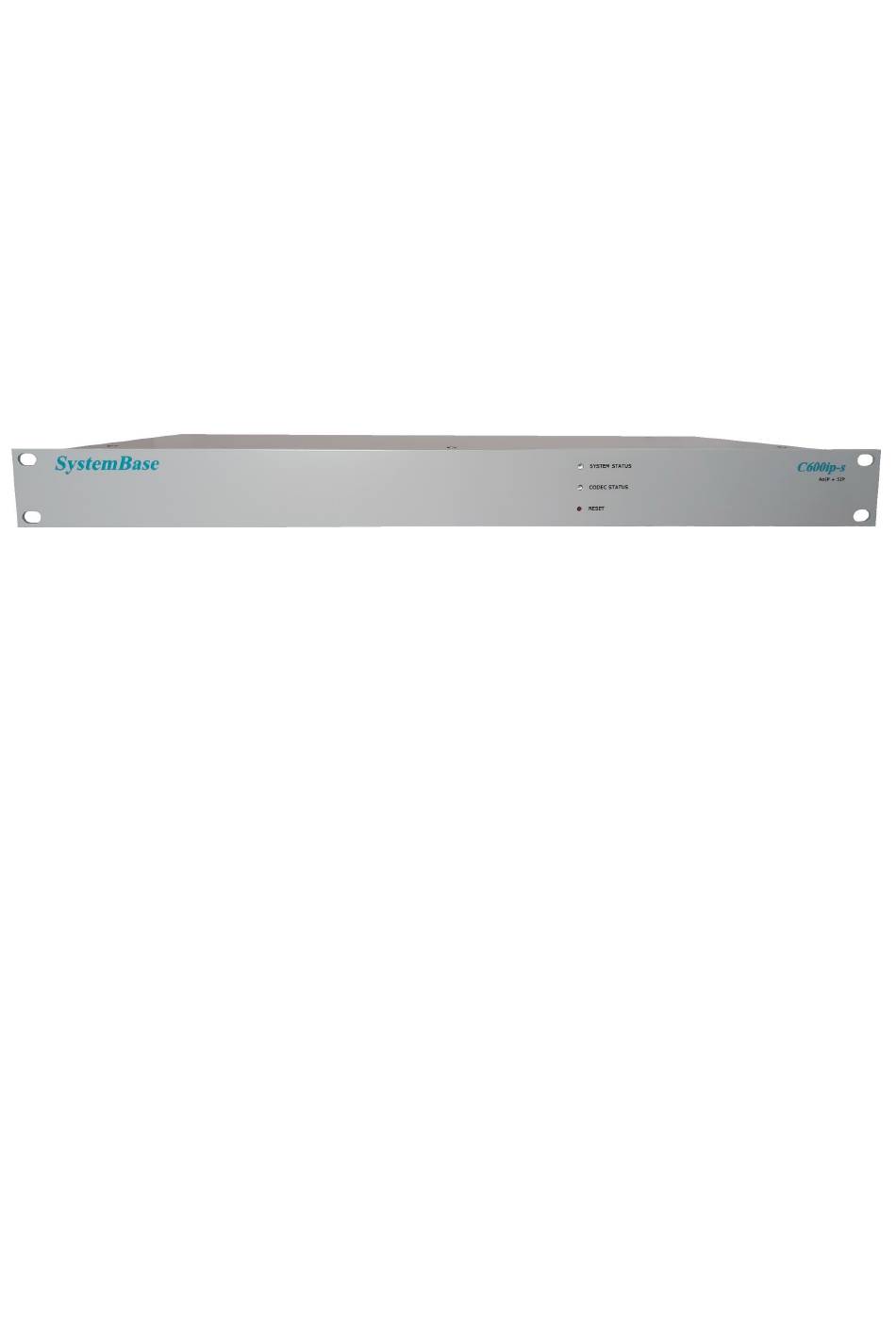

- Page 1 SystemBase AoIP CODECS USER MANUAL C600ip-s Page 1 REL329 upwards...
- Page 2 IP, MASK, GATE, DNS..5 DSCP.........5 PHYSICAL CONNECTIONS..8 NAME........6 Analogue Audio......8 Auto Buffer......6 Digital Audio........8 LAN Port........8 Buffer Length.....6 AoIP Port........8 Packet Size (ms)....6 Systembase AoIP Settings...6 PHYSICAL PROPERTIES.....8 Std Port......6 Dimensions........8 Group ID......6 Power Requirements....8 Ethernet Mode......6 Environmental Conditions.....8 Mode........6 Status........6 WARRANTY INFORMATION..9 SIP Server Registration....6...
- Page 3 INTRODUCTION The C600ip-s audio codec has been designed for the broadcast of high quality audio over digital networks, such as IP, dedicated digital lines, optical fibre networks, digital microwave links and satellite links. To achieve an efficient utilisation of the available network data bandwidth, the C600ip-s uses apt-X100 4:1 fixed audio compression system to provide full duplex, point-to-point audio transmission.
-
Page 4: Installation
INSTALLATION All Systembase C600ip series codecs are designed to fit a standard 19” rack. Each unit measures 44.45mm high (1U). Notes for installing:- 1/ Do not obstruct any air vents that the product may have. 2/ Do not mount the unit directly above or below other equipment within the rack. - Page 5 Test Options SNMP, SNMP Trap IP The C600ip-s is a fully digital codec. If you wish to If you are working with the SNMP then you can perform a local test then enable this option to create enable traps here by specifying the appropriate IP a local loop at the AES and Analogue interfaces.
- Page 6 This defines the UDP base port number that is used this option. However, is you are connecting the for the Systembase AoIP protocol. IF port 5000 is codec directly to another, without a SIP server, you specified then the codec will be using ports 5000 may need to configure this option.
-
Page 7: Maintenance
Flash Loader This feature is used upgrade the units firmware with a file provided by Systembase. This option applies to the Systembase AoIP protocol and will stream checksum packets that can accommodate a packet loss of 1 in every 4 packets or 1 in every 8 packets. -
Page 8: Physical Connections
PHYSICAL CONNECTIONS Analogue Audio The audio interface presents balanced stereo XLR AoIP Port inputs and outputs. The electrical characteristics of these connections is detailed below :- 1 x RJ45 Connector supporting: 100BASE-TX full-duplex I/P Impedance >10K Ohms 100BASE-TX half-duplex I/P Level +12dBu / +18dBu Max. -
Page 9: Warranty Information
WARRANTY INFORMATION Systembase Limited warrants that this product is free from defects in materials or workmanship for 12 months from delivery. Upon proof of purchase, the product will be repaired or replaced (with same or similar model) at our option. This warranty shall not... - Page 10 Information furnished is believed to be accurate and reliable at the time of publication. The manufacturer reserves the right to change details without notice. Systembase is a trademark of Systembase Limited. apt-X is a trademark of APT Licensing Ltd. All trademarks and tradenames acknowledged. This document is not part of a contract or licence except as may be expressly agreed in writing.
