SystemBase C600ip-s Quick Start Manual

Aoip codecs
Hide thumbs Also See for C600ip-s:

Advertisement

Table of Contents

SystemBase
AoIP CODECS
QUICK START GUIDE

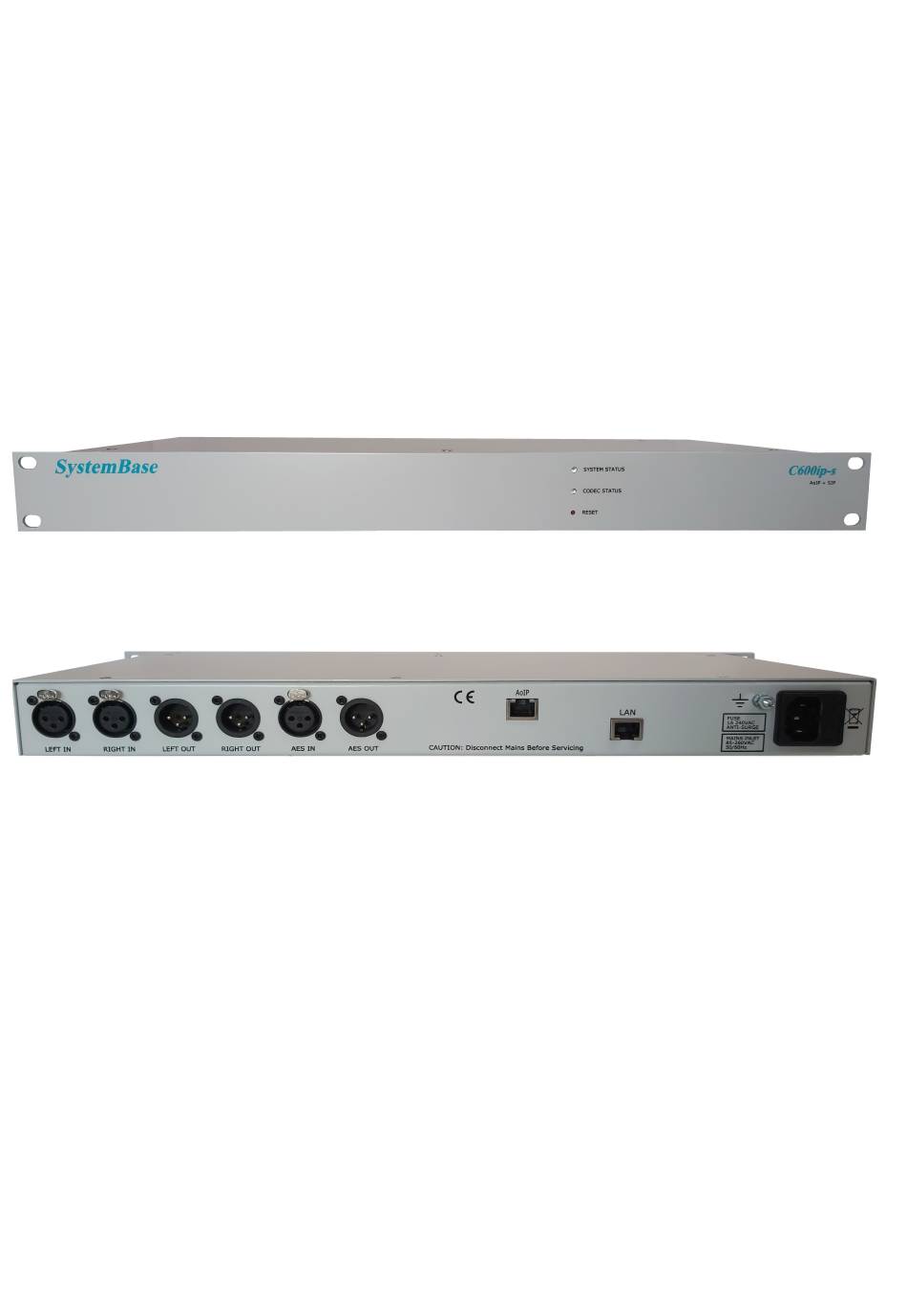

C600ip-s
Page 1
REL329 upwards

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C600ip-s and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SystemBase C600ip-s

Summary of Contents for SystemBase C600ip-s

  • Page 1 SystemBase AoIP CODECS QUICK START GUIDE C600ip-s Page 1 REL329 upwards...
  • Page 2 Table of Contents CONNECTING YOUR CODEC TO A BROWSER..............3 CONFIGURE THE AOIP CODEC.................... 5 MAKE A CALL........................6 AUDIO OVER IP STATS......................8 Page 2...

  • Page 3: Connecting Your Codec To A Browser

    CONNECTING YOUR CODEC TO A BROWSER The C600ip-s is designed to be configured by web browser only. To do this you will need to plug the LAN Ethernet socket into your local network using a standard Ethernet cable. The C600ip-s is defaulted to obtain an IP address using DHCP, so it is essential that your local network has a DHCP server running.
  • Page 4 Now you have the codec IP address you can use your WEB browser to connect to the management interface. This is done by entering the IP address of the codec in the browsers address bar and pressing enter. You will prompted with a sign in screen like this Now enter the default user name “admin”...

  • Page 5: Configure The Aoip Codec

    CONFIGURE THE AOIP CODEC Firstly you will need to connect the AoIP Ethernet connector to you local network. Once connected successfully the front panel LED will stop flashing and turn off. Next you will need to configure the AoIP codec to make a call. This is done by proceeding to the IP Config tab on the browser.

  • Page 6: Make A Call

    MAKE A CALL Now that the AoIP codec has an IP address we can proceed to make a call. This is done from the IP audio control tab. Simply enter the IP address of the far end codec into the remote address field and specify the audio mode that you require.
  • Page 7 The call is now established with a entry in the active connection panel displaying some basic statistics. If you wish this call to be 24/7 and remain connected following power outages and breaks in the IP connection you should use the AUTO On button rather than the MANUAL button. Page 7...

  • Page 8: Audio Over Ip Stats

    AUDIO OVER IP STATS IP statistics are available and can be useful for monitoring the performance of the AoIP connection. Please note that it is not recommended to run audio codecs on a network that is shared with many computers as the RTP streams are very sensitive to packet jitter. It is recommended that some QOS is implemented using the codecs DSCP settings to elevate the priority of the RTP traffic in the routers queuing system.
  • Page 9 Page 9...
  • Page 10 Information furnished is believed to be accurate and reliable at the time of publication. The manufacturer reserves the right to change details without notice. Systembase is a trademark of Systembase Limited. apt-X is a trademark of APT Licensing Ltd. All trademarks and tradenames acknowledged. This document is not part of a contract or licence except as may be expressly agreed in writing.
