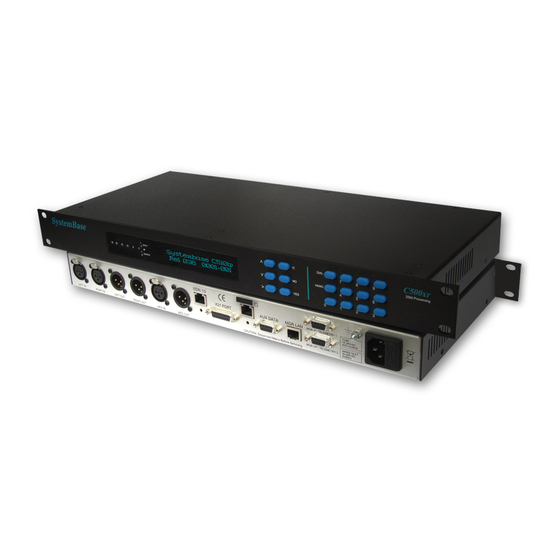

- Page 1 SystemBase IP CODECS USER MANUAL C530ip-s Page 1 REL309 upwards...
-
Page 2: Table Of Contents
Table of Contents INTRODUCTION......3 IP Mode........1 2 Key Features.........3 X21 Mode........1 2 B ac k u p Ma s ter X21->IP / INSTALLATION......4 Slave X21->IP......1 2 Auxiliary Data Port......12 CONTROLS AND INDICATORS..4 Alarm...........12 VFD Display........4 Headroom........13 VU Meters........4 System Options......13 Menu Buttons........4 P a s swo r d .........1 3 DIAL Button........4... -
Page 3: Introduction
INTRODUCTION The C530ip Audio Codec has been designed for the broadcast of high quality audio over digital networks, such as IP, dedicated digital lines, optical fibre networks, digital microwave links and satellite links. To achieve an efficient utilisation of the available network data bandwidth, the C530ip uses apt-X100 4:1 fixed audio compression system to provide full duplex, point-to-point audio transmission. -
Page 4: Installation
INSTALLATION DIAL Button All Systembase C500ip series codecs are designed A depression of the DIAL button will take you to the to fit a standard 19” rack. Each unit measures first of six IP connection menus. 44.45mm high (1U). Notes for installing:-... -
Page 5: Front & Rear Panels
FRONT & REAR PANELS Page 5... -
Page 6: Menu Map
MENU MAP DOWN RIGHT / EDIT BACKSPACE CONFIRM EDIT CANCEL EDIT / LEFT Page 6... -
Page 7: Ip Menu Map
IP MENU MAP DOWN RIGHT / EDIT BACKSPACE CONFIRM EDIT CANCEL EDIT / LEFT Page 7... -
Page 8: Menu System
Unit Description / Title The software release and serial number of the unit IP Options are displayed on the Title screen. MENU: IP Options SYSTEMBASE C530ip REL 001 S/N 0108-001 The next level of the menu system allows the user... -
Page 9: Ip Link 1 Algorithm
The IP Audio Mode can be selected. numerical keypad. The button backspaces to edit Duplex a number once it has been confirmed. On Transmit completion press the YES button to save the Receive changes, and the NO button to abort the changes. No Audio If a Mutlicast address is specified and AutoCon Note: If Multicast is selected then only Transmit or... -
Page 10: Ip Local Add Re S
IP Local Address IP Auto Buffer MENU: IP LOCAL Address MENU: IP AUTOBUF 198.0.0.2 (dhcp) AUTO The IP Local Address can be entered using the Auto Manual numerical keypad. The button backspaces to edit a number once it has been confirmed. On The C500ip default setting is with Auto Buffering completion press the YES button to save the enabled. -
Page 11: Ip Ethernet Mode
IP Ethernet Mode SIP Audio Port MENU: Ethernet Mode MENU: SIP Audio Port Auto 5050 Auto 10Base-T Half Duplex The audio port for steaming can be changed here. 10Base-T Full Duplex 100Base-TX Half Duplex SIP Public IP 100Base-TX Full Duplex MENU: SIP Public IP This menu is used to force the IP module to a 29.10.0.2... -
Page 12: Backup Threshold
Backup Threshold ISDN calls, however the audio will not be routed through to the ISDN connections. MENU: Backup Threshold 50% of X21 SYNC Errors Backup Master X21->IP/ Slave X21->IP The X.21 port is the primary network interface and The Backup Threshold is the level at which the the IP connection 1 is used for backup. -
Page 13: Headroom
MENU: SNMP The Gateway associated with the Ethernet IP address of the codec can be configured. The C530ip can be configured to support SNMP Management. Please contact Systembase Limited Set Defaults to request the MIB file. MENU: Set Defaults Ethernet Options... -
Page 14: Screen Saver
Defaults. MENU: Set Defaults Confirm Yes/No ? Press the YES button to confirm, and the NO button to abort. NOTE: All changes made to the patch configurations will be lost and there is no Undo option. Screen Saver MENU: Screensaver The VFD screensaver can be disabled if required. -
Page 15: Sip
sip:01747861123 SIP Registration SIP stands for Session Initiation Protocol and is used by devices that wish to establish Multimedia SIP registration is supported on the C510ip-s audio Sessions. Equipment manufacturers that support codec. However, it can only be accessed via the SIP will have the ability to connect with each other in WEB GUI. -
Page 16: Easymon Network Monitor
EasyMON is a free network monitor tool that allows an organisation to monitor multiple codecs in a single browser window with minimal overhead. EasyMON is free, and maybe downloaded from the Systembase website, www.systembase.com. Included in the download are instructions that will guide you through the correct configuration. -
Page 17: Web Server
WEB SERVER Firstly configure the appropriate settings for your network in the Ethernet options menu. Once configured correctly connect the port labelled “LAN” to your router. On your computer web browser type in the IP address of the codec (http://192.168.1.2). A Windows Login screen will be displayed. -
Page 18: Remote Management
The unit is now ready to receive commands. Type “help” for a complete list of commands and options. 0108-001 >help C530ip Network Commands, (c) Systembase Limited poll (8 digit serial number of unit to be selected) status (displays the codecs current status, /s option for short) -
Page 19: Physical Connections
IP Port (ISDN 3-4) PHYSICAL CONNECTIONS Analogue Audio 100B-TX full-duplex 100B-TX half-duplex The audio interface presents balanced stereo XLR IP Interface 10B-TX full-duplex inputs and outputs. The electrical characteristics of 10B-TX half-duplex these connections is detailed below :- Unicast / Simulcast I/P Impedance >10K Ohms IP Audio Algorithm... -
Page 20: Manager Input Port
Auxiliary Data Port Manager Input Port The RS232 terminal interface can support auxiliary bidirectional transmission of asynchronous data Type V.24/RS232 - Fixed DCE over the ISDN and X21 network. Speed 9600bps (8,n,1) Signals TXD, RXD, SIG GND Connector 9-way Dsub Female Type V.24/RS232 - Fixed DCE Speed... -
Page 21: Physical Properties
PHYSICAL PROPERTIES WARRANTY INFORMATION Systembase Limited warrants that this product is Dimensions free from defects in materials or workmanship for 12 months from delivery. Upon proof of purchase, the Enclosure 1U, 19 inches - Rackmount product will be repaired or replaced (with same or... - Page 22 Information furnished is believed to be accurate and reliable at the time of publication. The manufacturer reserves the right to change details without notice. Systembase is a trademark of Systembase Limited. apt-X is a trademark of APT Licensing Ltd. All trademarks and tradenames acknowledged. This document is not part of a contract or licence except as may be expressly agreed in writing.
