AGP FS

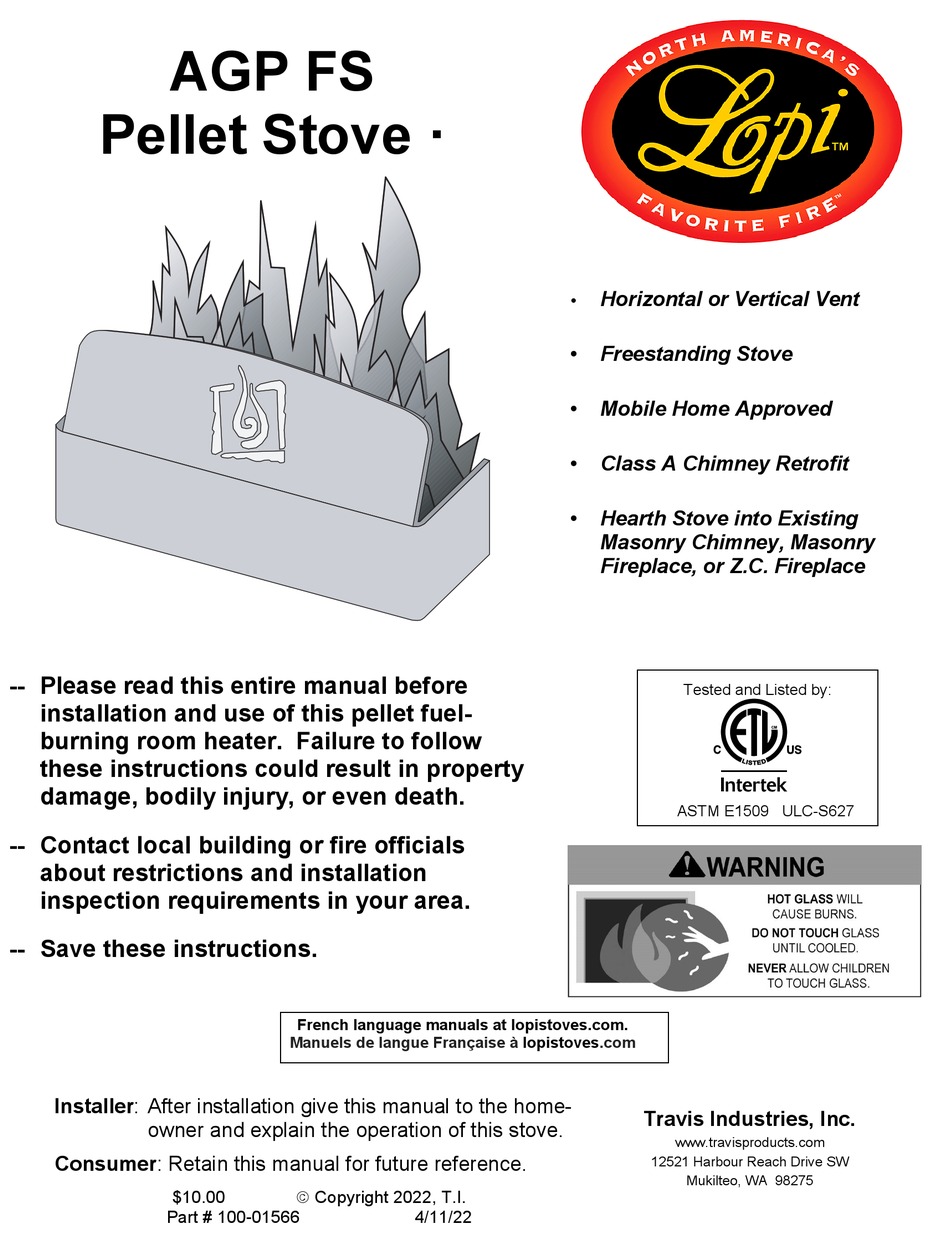

Pellet Stove ꞏ
-- Please read this entire manual before
installation and use of this pellet fuel-
burning room heater. Failure to follow
these instructions could result in property
damage, bodily injury, or even death.
-- Contact local building or fire officials
about restrictions and installation
inspection requirements in your area.
-- Save these instructions.
Installer: After installation give this manual to the home-
owner and explain the operation of this stove.
Consumer: Retain this manual for future reference.
$10.00
Part # 100-01566
French language manuals at lopistoves.com.
Manuels de langue Française à lopistoves.com
 Copyright 2022, T.I.
4/11/22
Horizontal or Vertical Vent
Freestanding Stove
Mobile Home Approved
Class A Chimney Retrofit
Hearth Stove into Existing
Masonry Chimney, Masonry
Fireplace, or Z.C. Fireplace
Tested and Listed by:
ASTM E1509 ULC-S627
Travis Industries, Inc.
www.travisproducts.com
12521 Harbour Reach Drive SW
Mukilteo, WA 98275

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AGP FS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Travis Industries AGP FS

  • Page 1 AGP FS Pellet Stove ꞏ Horizontal or Vertical Vent • • Freestanding Stove • Mobile Home Approved • Class A Chimney Retrofit • Hearth Stove into Existing Masonry Chimney, Masonry Fireplace, or Z.C. Fireplace -- Please read this entire manual before...
  • Page 2: Introduction

    To receive full warranty coverage, you will need to show evidence of the date you purchased your heater. Model: AGP FS Pellet Stove We suggest that you attach your Bill of Sale to this Serial Number: page so that you will have all the information you need in one place should the need for service or information occur.
  • Page 3: Table Of Contents

    Installation Example: Interior Vertical Installation 16   Thermostat Installation (Optional) ......44     Installation Example: Class “A” Chimney Retrofit 17 Outside Air Kit ............44   Installation Example: Masonry Fireplace Hearth Stove ..............18   © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 4 This heater is designed and approved to prevent the possibility of a house for pelletized wood fuel only. fire. The instructions must be strictly adhered to. Do not use makeshift methods or compromise in the installation. © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 5 NOT BE maintain your heater may lead to INSTALLED IN THE BEDROOM accumulation of soot, creosote, and (per H.U.D. requirements). Check ash, and smoke spillage or fire in with local building officials. your home. © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 6 Always follow the instructions in this manual. The exhaust system should be Travis Industries, Inc. grants no warranty, implied or stated, for checked at least twice a year for the installation or maintenance of any build-up of soot or creosote.
  • Page 7: Heating Specifications

    Watts during Start-Up Sequence ................350 (approximately) Watts during Operation ................... 250 (approximately) Fuel This heater is designed and approved for pelletized wood fuel only (all grades). Travis Industries Inc. recommends using only fuel that is certified by the Pellet Fuels Institute (PFI). Emissions This heater meets the 2020 U.S.
  • Page 8: Before You Begin

    Residential or Mobile Home (see the section "Mobile Home Requirements")  Alcove Compatible (see the section "Alcove Installation")  Horizontal or Vertical Vent  Outside Air Compatible  Vent with L-Vent, L-Vent Fireplace Liner, or Type “A” Chimney (with adapter) © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 9: Planning The Installation

    (For Qualified Installers Only) Planning the Installation HINT: Have an authorized Travis Industries dealer install this heater. If you install the heater yourself, have your dealer review your installation plans. HINT: Sketch out a detailed plan of the installation including dimensions. Then verify the dimensions with the requirements listed in this manual.
  • Page 10: Clearances

    "Tee" and add the vent clearance. ** The floor protection must extend 2” (51mm) beyond the pipe – all vent clearances must be met. © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 11: Venting The Pellet Stove

    5' (1.524 M) of pellet vent when on the exterior of a structure. 30 F eet NOTE: Travis Industries recommends a minimum vertical vent of 5’ to ensure adequate draft during a power outage. T he vent height and run...
  • Page 12: Pellet Vent Type

    Minimum 3' (915mm) clearance from any forced air intake of any other appliance Minimum 2' (610mm) clearance below eaves or overhangs Minimum 1' (458mm) clearance horizontally from a combustible wall Must be a minimum of 2' (610mm) above the roof © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 13: Mobile Home Requirements

    Outside Air Kit (sku# 99200139) must be used to duct combustion air directly into the appliance. The kit is available through your dealer.  The stove must be secured to the floor of the manufactured home. Travis Industries manufactures a kit (sku# 98900509) for securing the appliance. The kit is available through your dealer. ...
  • Page 14: Alcove Installation Requirements

    Another symptom of too much air is the heater “blowing the fire out” – a condition in which the pellets burn faster than they are fed (this is most common on low heat settings). © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 15: Installation Examples

    (For Qualified Installers Only) Installation Examples Installation Example: Direct "Through-the-wall" Installation NOTE: Travis Industries recommends a minimum vertical vent of 5’ to ensure adequate draft during a power outage. Install the vent at the clearance specified by the vent manufacturer.
  • Page 16: Installation Example: Interior Vertical Installation

    Installation (For Qualified Installers Only) Installation Example: Interior Vertical Installation Install vent at clearance specified by the vent manufacturer. © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 17: Installation Example: Class "A" Chimney Retrofit

    Installation (For Qualified Installers Only) Installation Example: Class “A” Chimney Retrofit Install vent at clearance specified by the vent manufacturer. © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 18: Installation Example: Masonry Fireplace Hearth Stove

    Lintel Outside air may be drawn from the ash 6” Min. cleanout. NOTE: you may need a short horizontal section here to clear the lintel and allow the hopper lid to open. © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 19: Installation Example: Zero-Clearance (Metal) Fireplace Hearth Stove

    “L” Vent Flex Section Allow room for the hopper lid to open 6” Min. NOTE: you may need a short horizontal section here to clear the lintel and allow the hopper lid to open. © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 20: Installation Example: Freestanding Masonry Chimney

    “L” Vent Flex between sections, Section unless otherwise specified by the manufacturer. “L” Vent Sections Vent Clearance* Clean-Out Access 6” Min. Install vent at clearance specified by the vent manufacturer. © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 21: Safety Notice

    IMPORTANT: Do not let the control panel door bang open, it may scratch if it hits the stovetop surface. START www.travisproducts.com HIGH HIGH HEAT AUTO FAN WARNING TSTAT STOP GLASS AND SURFACES OF UNIT CAN GET HOT ENOUGH TO CAUSE SEVERE BURNS. KEEP CHILDREN AND PETS AWAY. © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 22: Loading Pellets

    Open doors and windows to the room to vent these fumes. You may also notice oil burning off of the interior of the stove. This rust- stopping agent will soon dissipate. Allow 48 hours for the paint to cure. © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 23: Manual Mode

    START www.travisproducts.com HIGH HIGH HEAT AUTO FAN WARNING TSTAT STOP GLASS AND SURFACES OF UNIT CAN GET HOT ENOUGH TO CAUSE SEVERE BURNS. KEEP CHILDREN AND PETS AWAY. © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 24: To Adjust Heat Output

    This allows for more efficient operation. START www.travisproducts.com HIGH HIGH HEAT AUTO FAN WARNING TSTAT STOP GLASS AND SURFACES OF UNIT CAN GET HOT ENOUGH TO CAUSE SEVERE BURNS. KEEP CHILDREN AND PETS AWAY. © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 25: Tstat (Thermostat) Mode

    TSTAT The stove will begin the shut- STOP GLASS AND SURFACES OF UNIT CAN GET HOT ENOUGH TO CAUSE SEVERE BURNS. down process, which takes KEEP CHILDREN AND PETS AWAY. approximately 45 minutes. © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 26: Changing The Tstat Program

    The burn rate decreases to Level 1 (low) and remains at this level until there is a call for heat by the thermostat (the thermostat is closed), then resumes corresponding with the setting on the control panel. © Travis Industries 4/11/22- 1566...
  • Page 27: Start-Up Sequence (Igniter)

    NOTE: Travis Industries recommends a minimum vertical vent of 5’ to ensure adequate draft during a power outage. After a power outage (or when plugging the heater in) the exhaust blower will run for approx.
  • Page 28: Stove Maintenance

    If the ashes are disposed of by burial in soil or otherwise locally dispersed, they should be retained in the closed container until all cinders have been thoroughly cooled. © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 29 Opening the Door MAKE SURE THE HEATER HAS FULLY COOLED (APPROXIMATELY 45 MINUTES) BEFORE OPENING THE DOOR AND CONDUCTING SERVICE. Turn the handle clockwise and pull to open the door, as shown below. © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 30 When in place, make sure the visual deflector is pressed down fully on both sides. If it is not fully seated, airflow to the burn platform may be displaced and the appliance may burn poorly. © Travis Industries 4/11/22- 1566...
  • Page 31 Remove the wedge that locks the burn platform in place. If the wedge is difficult to dislodge, use the cleaning tool to rock the wedge left to right. NOTE: An extra wedge is included with the heater in case the original is misplaced. © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 32 Maintenance Remove the burn platform from the platform holder. Clean the inside of the burnpot holder. © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 33 NOTE: Use both hands on the grill. Using one hand in the middle of the grill may cause it to warp. 2. Hook the cleaning tool onto the heat exchange scraper rod as shown below. 3. Move the scraper rod back and forth a few times to clean the heat exchange tubes. © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 34 To remove, lift it up and slide it out. 3. Remove the side liners. They have keyhole slots that fit over screws on the side of the firebox. Lift them up, tilt them inwards, then remove. © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 35 5. With the liners removed, clean all flyash and debris from the firebox. Clean the liners before replacing them. Monthly Maintenance (or Every 20 Bags of Pellets) - Clean the Glass Open the doors and clean the glass with a non-abrasive glass cleaner and rag. © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 36 NOTE: Do not use the ashpan handle to pull the ashpan out; instead use the lip on the front of the ashpan. 3. Remove the ashpan from the appliance and properly dispose of the ashes (see “Disposal of Ashes” on page 28 for details). © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 37 2. Remove the exhaust duct cover as shown below. Press up on it and lift it out. 3. Remove the exhaust channel cover plate and gasket (11/32” nut driver). © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 38 Maintenance 4. Clean the exhaust channel with the bottle brush or vacuum. 5. Clean the combustion blower with the bottle brush or vacuum. NOTE: Take care to prevent damaging the combustion blower impellers. © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 39 3. Remove the 2 nuts securing the blower using a 7/16” nut driver. Lift out and remove the convection blower from the stove as shown below. 4. Remove all dust and debris from the convection blower. NOTE: Take care to prevent damaging the impellers. © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 40 While open, use a flashlight to look up the vent to check for build-up. WHENEVER ANY PORTION OF THE PELLET VENT IS DISCONNECTED, THE JOINTS MUST BE SEALED WITH RTV 500° F. SILICONE SEALANT, UNLESS OTHERWISE SPECIFIED BY THE VENT MANUFACTURER. © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 41 When replacing the cover plate, make sure to place the gasket between the cover plate and the hopper (use silicone if a gasket is not used). This prevents pellet dust from falling below. Return the heater to the correct configuration before operating. 1/8” Hex Wrench Shim Chisel 1/4" Nutdriver © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 42: Troubleshooting Table

    FLASH ALTERNATELY metering motor or system disc may fully closed, clean the burn platform, then  have malfunctioned. restart the appliance.  Replacement Parts Contract your Travis Industries Dealer for replacement parts. Use only replacement parts from Travis Industries designed specifically for this heater. Door Parts ID # Description Part #...
  • Page 43: Wiring Diagram

    Black Snap Disc Snap Disc 200° NC 200° NC Hopper Lid Switch Flow Switch Metering Appliance Auger Motor Ground Black Exhaust Blower Power Cord Igniter Ground Black Hot (fuse) Common White White 1004 © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 44: Thermostat Installation (Optional)

    3-1/2" Cover Plate & 1-1/4" screws 5-3/4" Cut a minimum 2" diameter hole in the wall (use 2" dia. hole saw). 3/8" Screws 1-3/4" Diameter Flex Duct 1-1/4" Hood with Screen Screws © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 45 Safety Label © Travis Industries 4/11/22- 1566 AGP Stove...
  • Page 46 10. TRAVIS INDUSTRIES, INC. is free of liability for any damages caused by the appliance, as well as inconvenience expenses and materials. Incidental or consequential damages are not covered by this warranty. In some states, the exclusion of incidental or consequential damage may not apply.
  • Page 47 At that time, you may be asked to ship your appliance, freight charges prepaid, to TRAVIS INDUSTRIES, INC. TRAVIS INDUSTRIES, INC., at its option, will repair or replace, free of charge, your appliance if it is found to be defective in material or workmanship within the time frame stated within this 7-year warranty.
  • Page 48 ..............16 Want to know more? Scan this code with a QR reader on your cell phone or use the URL below to watch a video of how to use the AGP stove. https://vimeo.com/50698952 © Travis Industries 4/11/22- 1566 AGP Stove...
