Summary of Contents for Planar PS5580

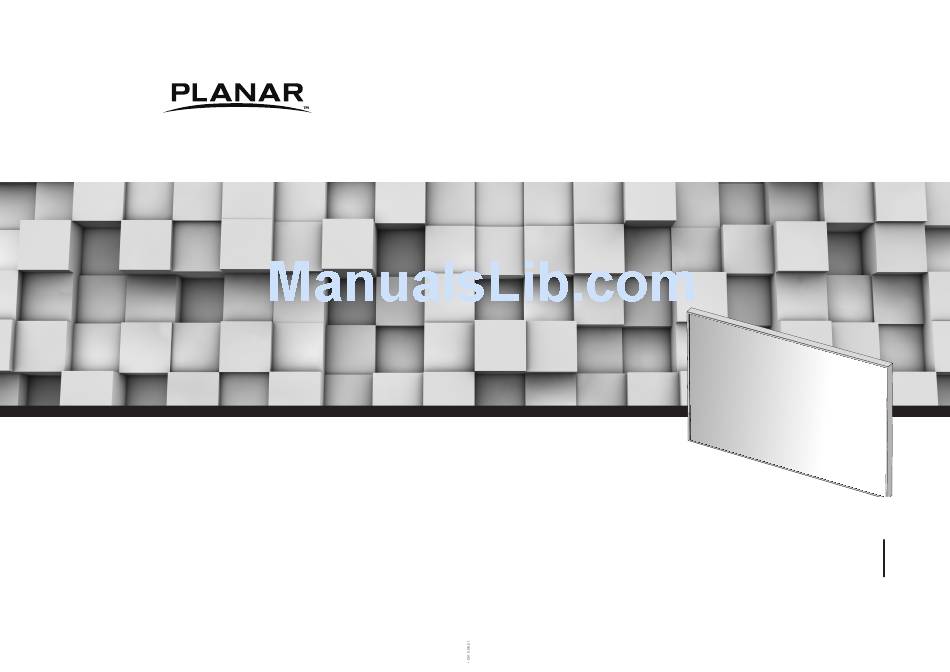

- Page 1 When image experience matters. Planar System,Inc. 1195 NW Compton Drive Beaverton,OR 97006 www.planar.com Technical Support:1-866-752-6271 www.planar.com/support PS5580 User’s Manual...
-
Page 2: Important Safety Instructions
It is a device designed for business purpose with a safety certificate for electromagnetic interference, which several programs. user should be mindful of. Thank you for purchasing our PS5580 monitor. " Important Safety Instructions" This manual describes how to use the product and notes in use. -
Page 3: Table Of Contents
Contents ※European Union Disposal Information ........................4 ※Cautions for consisting PS5580 System ......................5 CAUTION ※Clearance for Ventilation ............................6 RISK OF ELECTRIC SHOCK ※Cleaning and Maintenance ............................7 DO NOT OPEN ※ Please keep following instruction for panel protection without exception. -
Page 4: European Union Disposal Information
Smaltimento delle attrezzature elettriche ed elettroniche usate Verwijderen van oude elektrische en elektronische apparatuur - For ground of PS5580 and application devices, it should be connected as frame ground. Unión Europea y a otros países europeos con programas de (applicabile in tutta la Comunità Europea ed altri Paesi Europei... -
Page 5: Clearance For Ventilation
- Regularly clean off the vent holes in the back of PS5580 sets. - When you install PS5580 make sure there is at least 20cm clearance for effective If the vent holes and the fan air holes are clogged with dust, it prevents the air ventilation and do not seal off PS5580 sets. -
Page 6: Please Keep Following Instruction For Panel Protection Without Exception
※ Please keep following ※ Handle with Caution. instruction for panel protection - Shock/Impact on the set's sides will result in internal without exception. circuit damages. Warning Warning - The edge/bottom of the panel are fragile. - This product can be damaged even with minor impact Use shock-absorbing pads or rugs for laying down the for its nature. -
Page 7: How To Carry Ps5580
※Note : Moving picture or black pattern is strongly recommended for screen saver. 2. Operating methods to minimize burn-in image due to long-term static information display - For optimal performance, we suggest turning off the LED power on the Planar PS5580 for four hours Don't carry PS5580 in Horizontal Status. per day - Periodical display contents change from static image to moving picture. -
Page 8: Attention For Installing
※ Attention for Installing Warning Fixed • Avoid giving a shock or damage at LCM • Keep all LCMs balanced in vertical or • Avoid that LCM is twisted. • Avoid that LCM outside is shocked or corner or other parts during setting horizontal force after setting damaged by sharp thing. -
Page 9: Safety Precautions
1. Safety Precautions • If it operates abnormally, stop using it • Do not pull out or hang down the • Do not place any liquid-containing • Do not put any foreign material into • Do not lean against the product or keep • Do not put it at any place with much immediately. -
Page 10: Names
2. Names ▶ ▶ Front Input Ports RS232C RS232C HDMI HDMI 1-IN 2-IN SRC MODE ▶ Rear RS232C RS232C HDMI HDMI 1-IN 2-IN ➊ ➋ ➌ ➍ ➎ ➏ ➐ ➑ ➒ ➓ 1. LAN 7. HDMI 2-IN Display control via Ethernet (RJ45) 8. -
Page 11: Remote Controller
▶ KEY PAD ▶ Remote Controller POWER ON : POWER Turn on the display POWER OFF : Turn o the display A.SETUP : PICT. MUTE A.SETUP Automatically adjusts White ZOOM SP.SEL A.ADJ Level. (RGB Only) A.ADJ : Number Button : Automatically adjusts Screen Used to enter the LAN Network Size, Hposition, V position,... -
Page 12: How To Connect Cables
• Make sure the power cord is inserted properly into the power inlet to prevent unexpected pullout of the cord. 3.1. Connection of Single PS5580 • PS5580 and PC should be connected; a Com Port in a PC and RS-232C IN port in a PS5580 is connected with RS232C... - Page 13 3.2. Connection of Multiple PS5580 (for DP in) 3.3. Connection of Multiple PS5580(for HDMI in) • Image quality can be affected by cable or signal quality. • It is recommended you purchase an HDMI-certified cable. Otherwise, the screen may appear blank or a connection error may occur.
- Page 14 3.4. Connection of Multiple PS5580(for DVI in) 3.5. Connection of Multiple PS5580(for PC in) • Recommended maximum set connection for Multi setting is shown in table below. • Image quality can be affected by cable or signal quality. If you need to connect more than described in the table, you have to use distributors.
- Page 15 3.6.1. Connection of RS-232C Cable & IR Receiver • In case of Ethernet connection, the control PC should be connected to one of PS5580 sets with Ethernet cable. • Maximum use of RS-232C with Daisy Chain connection is 30 sets or less, if you need additional connection, use For the connection between the PS5580 sets, they should be connected with RS-232C cables.
-
Page 16: How To Use Remote Controller
4. How to use Remote Controller 5. Configuration PICTURE Mode 1. MENU button ‚ OSD MENU will be displayed by pressing MENU button. POWER Ÿ BRIGHTNESS, CONTRAST, TINT, COROR, VIDEO MODE, and PICTURE RESET can be adjusted ‚ Moves from sub menu to the main menu. in the PICTURE MENU. - Page 17 ▶ BRIGHTNESS ▶ CONTRAST Ÿ Adjust the overall image and background brightness. Ÿ Adjust the image brightness in relationship to the background. 1. Select BRIGHTNESS from PICTURE Menu. 1. Select CONTRAST from PICTURE menu. ‚ Select BRIGHTNESS and move ▼▲ buttons to adjust the value. ‚...
-
Page 18: Color Temperature
▶ ▶ TINT COLOR TEMPERATURE Ÿ Adjust Red and Green color of the screen. Ÿ Adjust the color temperature of the screen. 1. Select TINT from PICTURE Menu. 1. Select GAMMA SELECTION from PICTURE Menu. ‚ Select TINT and move ▼▲buttons to adjust the value. ‚... -
Page 19: Gamma Selection
▶ ▶ COLOR BALANCE GAMMA SELECTION Ÿ If Color TEMPERATURE needs further adjustment, the individual R/G/B levels of the white Ÿ Select a display gamma for best picture quality. point can be adjusted. 1. Select GAMMA SELECTION from PICTURE Menu. 1. - Page 20 ▶ ▶ PICTURE RESET COLOR SPACE Ÿ Initialize the values of PICTURE NENU. Ÿ Select a color space for best picture quality. 1. Select PICTURE RESET from PICTURE menu. 1. Select COLOR SPACE from PICTURE Menu. ‚ Press MENU button to display OSD. ‚...
- Page 21 SCREEN Mode (For PC In ) ▶ H POSITION Ÿ Adjust the horizontal position of the display image on the screen. Ÿ H POSITION, V POSITION, CLOCK, CLOCK PHASE and SCREEN RESET can be adjusted in the SCREEN MENU. 1.
-
Page 22: Clock Phase
▶ ▶ CLOCK SCREEN RESET Ÿ Adjust the width of the display image on the screen. Ÿ Initialize the values of SCREEN MENU. 1. Select CLOCK from SCREEN menu. 1. Select SCREEN RESET from SCREEN menu. ‚ Adjust CLOCK values with ▼▲ buttons after selecting CLOCK. ‚... - Page 23 SETUP A Menu ▶ AUTO ADJUST (For PC IN) Ÿ Screen Size, H position, V position, Clock, Clock Phase can be adjusted automatically. Ÿ AUTO SETUP, AUTO ADJUST, POWER SAVE, AUTO POWER, LANGUAGE, SETUP A RESET and KEY LOCK can be adjusted in SETUP A MENU. 1.
-
Page 24: Auto Power
▶ ▶ POWER SAVE AUTO POWER Ÿ The monitor will automatically turn off after 10minutes when there is no signal. Ÿ The monitor will be turned on automatically when power is connected. 1. Select POWER SAVE from SETUP A menu . 1. - Page 25 ▶ ▶ LANGUAGE SETUP A RESET Ÿ Select the language used for the OSD. Ÿ Initialize the values of SETUP A MENU. 1. Select LANGUAGE from SETUP A menu. 1. Select SETUP A RESET from SETUP A menu . ‚ Press MENU button to display OSD. ‚...
- Page 26 ▶ SETUP B KEY LOCK Ÿ Restrict key strokes to prevent any of expected set activities. Ÿ SERIAL CONTROL, LAN SETTING, OSD, OFF TIMER, SETUP B RESET and FACTORY RESET can To return to normal operation, press the “ENT” button on the KEY PAD for 3 sec. be adjusted in SETUP B MENU.
- Page 27 ▶ ▶ SERIAL CONTROL LAN SETTING Ÿ Select the LAN On or LAN Off. Ÿ Configure the IP address of the set to control via Ethernet. 1. Select SERIAL CONTROL from SETUP B menu. 1. Select LAN SETTING from SETUP B menu. ‚...
- Page 28 ▶ » TURN OFF Ÿ It configures OSD menu. Ÿ Turns off the OSD after a period of inactivity. The preset choices are 5-120 seconds. 1. Select OSD from SETUP B menu. 1. Select TURN OFF. ‚ Press MENU button to display OSD. ‚...
- Page 29 » » POSITION ROTATION Ÿ Select the location where the OSD appears on the screen. Ÿ Select the OSD display direction between landscape and portrait. 1. Select OSD H POSITIION 1. Select ROTATION from OSD menu. ‚ Press ▼ or ▲ buttons to adjust OSD H POSITION value. ‚...
- Page 30 » » INFO DISPLAY TRANSPARENCY Ÿ Select to display or not display the infomation OSD. The information OSD will be displayed Ÿ Setup the transparency level of the OSD. when the input signal or source are changed. The information OSD will also give a warning 1.
- Page 31 ▶ ▶ OFF TIMER SETUP B RESET Ÿ Setup the monitor to power off after a certain of time. Ÿ Initialize the previously adjusted values of SCREEN B MENU. Time period can be selected from 1 to 24 hours. 1. Select SETUP B RESET from SETUP B menu. 1.
- Page 32 ▶ OPTION FACTORY RESET Ÿ Initialize the previously adjusted values of the set to the factory level. Every configuration Ÿ INPUT RESOLUTION, SCAN MODE, CHANGE SECURITY PASSWORD, TILING MENU LOCK, will be initialized. GROUP ID, IR CONTROL, TILING, LOOP OUT EQ, POWER ON DELAY and POWER ON INPUT 1.
-
Page 33: Scan Mode
▶ ▶ INPUT RESOLUTION CHANGE SECURITY PASSWORD Ÿ Chang the the security password. The factory preset password is 9999. Ÿ Display the current input resolution. This password is applied to the TILING MENU LOCK menu. 1. Select CHANGE SECURITY PASSWORD from OPTION menu. PICTURE INPUT RESOLUTION 1920 x 1080@50Hz... - Page 34 ▶ ▶ TILING MENU LOCK GROUP ID Ÿ Lock the tiling menu to protect the tiling display setting. Ÿ Setup the Tiling Group. 1. Select TILING MENU LOCK from OPTION menu. 1. Select GROUP ID from OPTION menu. ‚ Press ▼ or ▲ buttons to move to TILING MENU LOCK menu and press OK button. ‚...
- Page 35 ▶ ▶ IR CONTROL TILING Ÿ Prevents the monitor from being controlled by the remote controller. Ÿ Allows one image to be expanded and displayed over multiple screens. . To return to normal operation, press the “ENT” button on the KEY PAD for 3 sec. 1.
- Page 36 ▶ ▶ POWER ON DELAY POWER ON INPUT DETECT Ÿ Adjust the delay time between being in “standby” mode and entering “power on” mode.. Ÿ Select the default input source for power on. 1. Select POWER ON DELAY from OPTION menu. 1.
-
Page 37: Before Calling For Service
LCD applies the same inspection standard) 1080i50 28.125 74.250 2640 1920 1125 1080 HDTV - To minimize the light leakage, the PS5580 sets should be installed 1080i60 33.750 74.250 2200 1920 1120 1080 HDTV with high accuracy in horizontal and vertical position. -
Page 38: Specification
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. Any changes or modifications to the display not expressly approved by Planar could void the user's authority to operate this ※Product design and specification can be changed for quality improvement without prior notice. -
Page 39: Dimension
10. Dimension Memo 1224.2(±1.5) 696.0(±1.5) 61.3 RS232C RS232C HDMI HDMI 1-IN 2-IN PWR SRC MODE 124.5 61.3 61.3 - 74 - - 75 -...
