Permobil LapStacker XD Power Installation Manual page 7

1.

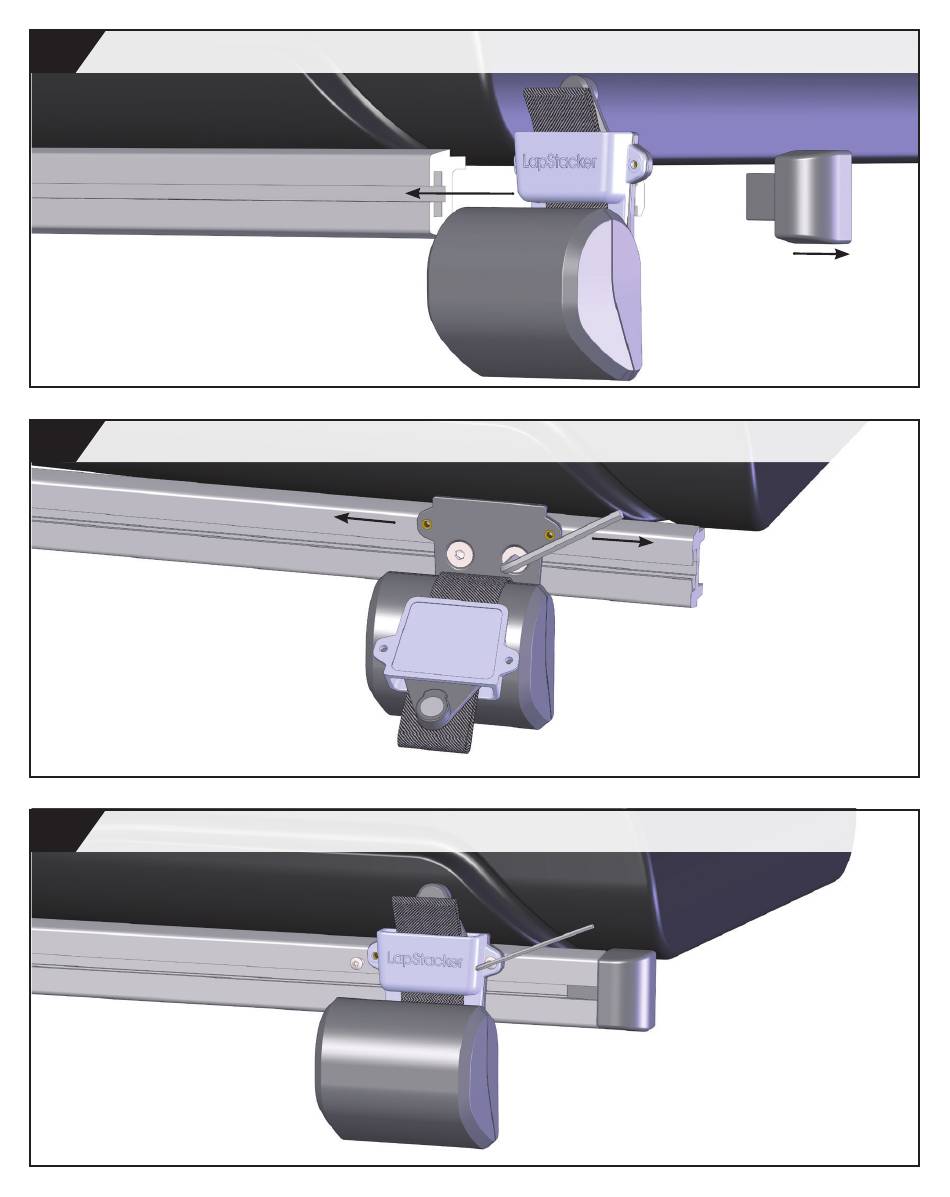

Remove end cap. Slide Bracket Assembly onto the seat extrusion.
Items Required:
● LapStacker Assembly
2.
Adjust to ideal position and tighten screws.
Items Required:
● LapStacker Assembly
● 4.0mm Allen Key
4.
Attach Keeper to Bracket with 2 x M3 fasteners. Re-fit end cap.
Items Required:
● LapStacker Assembly
● 2.0mm Allen Key
WARNING!
Avoid over tightening the
fasteners as this will strip the
threads.
WARNING!
Avoid over tightening the
fasteners as this will strip the
threads.
REPEAT PROCESS FOR OPPOSITE SIDE.
