Summary of Contents for DOM Tronic Pro

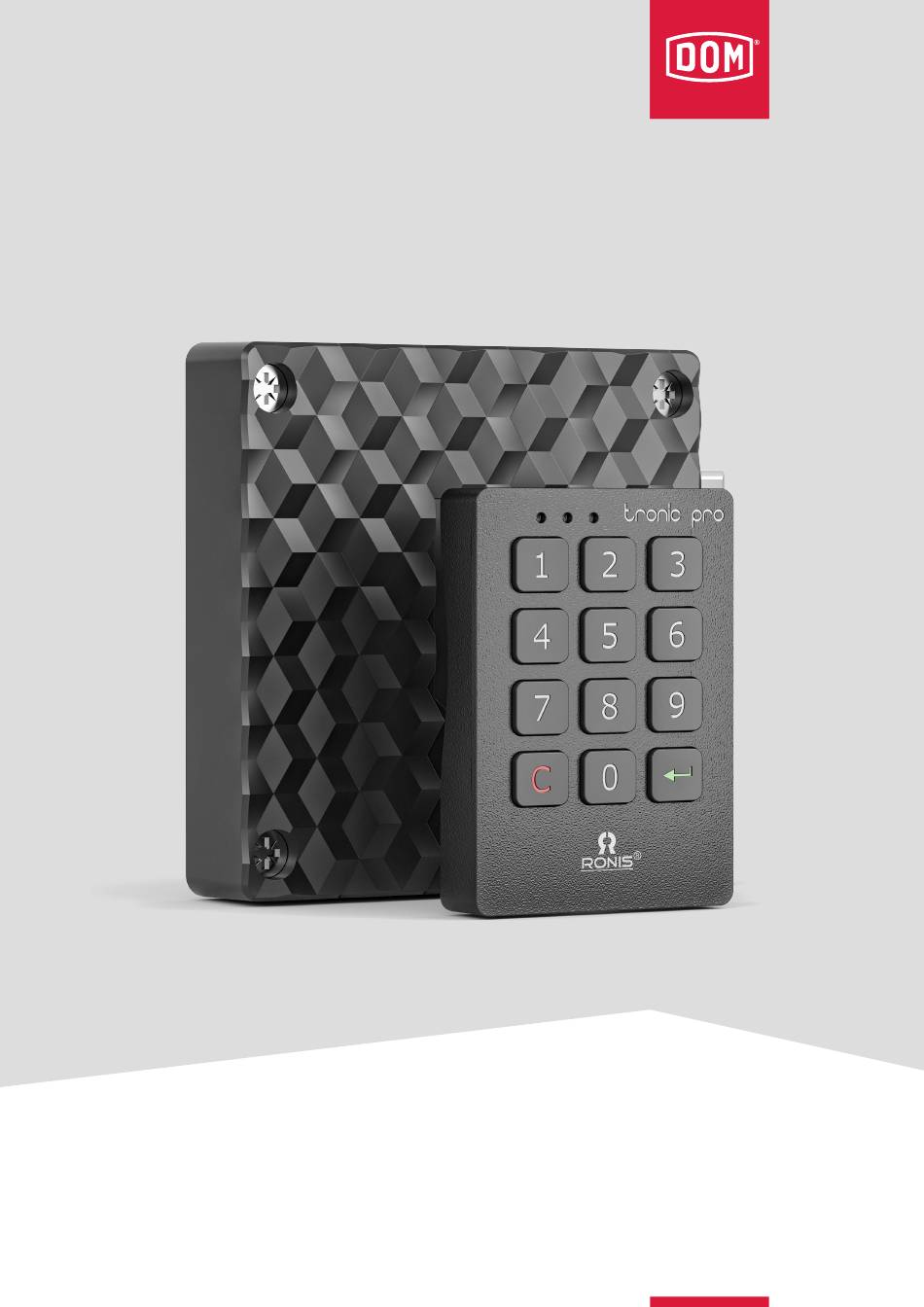

  • Page 1 Tronic Pro Assembly...

  • Page 2: Drilling Template

    Drilling template ASSEMBLY TRONIC PRO : Drilling tem Right hand door ø8,1 ø4,5 For housing the screw head...
  • Page 3 TRONIC PRO : Drilling template Left hand door ø8,1 ø4,5 For housing the screw head...
  • Page 4 Accessories ASSEMBLY ø5x29.5 ø3.5x9.5 Strike plate M3x18...
  • Page 5 Right door assembly ASSEMBLY 18 mm Section A-A panel thickness 18 + x mm ø3.5 ø22...
  • Page 6 Right door assembly ASSEMBLY Right door Warning: Connect blue part to the side of the legde Right door...
  • Page 7 Left door assembly ASSEMBLY 18 mm Section A-A panel thickness ø3.5 ø22...
  • Page 8 Left door assembly ASSEMBLY Warning: Connect blue part Left door to the side of the legde Left door...

  • Page 9: Important Notes

    Important notes ASSEMBLY Verify that the cable is properly Don’t push any key during the wire connected (straight and untill assembly process. the bottom). Relase the batteries thanks to T20 Torx Security screw located on the opposite of the battery case Verify that the batteries are in the right polarity (as indicated in the battery box).
  • Page 10 Important notes ASSEMBLY Verify that the screws are not fastened too tight (<20kgf/cm2). Verify that the latch works smoothly in and out, without any frinction with the door frame.

  • Page 11: Led Lights

    LED lights ASSEMBLY After introducing the correct code and pressing ENTER, the three LEDs blink at the same time (green-yellow-red) and the lock does not work. Dead batteries: replace batteries. After pressing any button the yellow LED blinks. Dead or almost dead batteries: replace batteries.
  • Page 12 Batteries ASSEMBLY 1. Make sure the battery pack contains full powered batteries (don’t screw the battery pack too tight to avoid breaking the mechanism) 2. If the lock is closed, introduce the user code (or the master one) to open it. 3.
