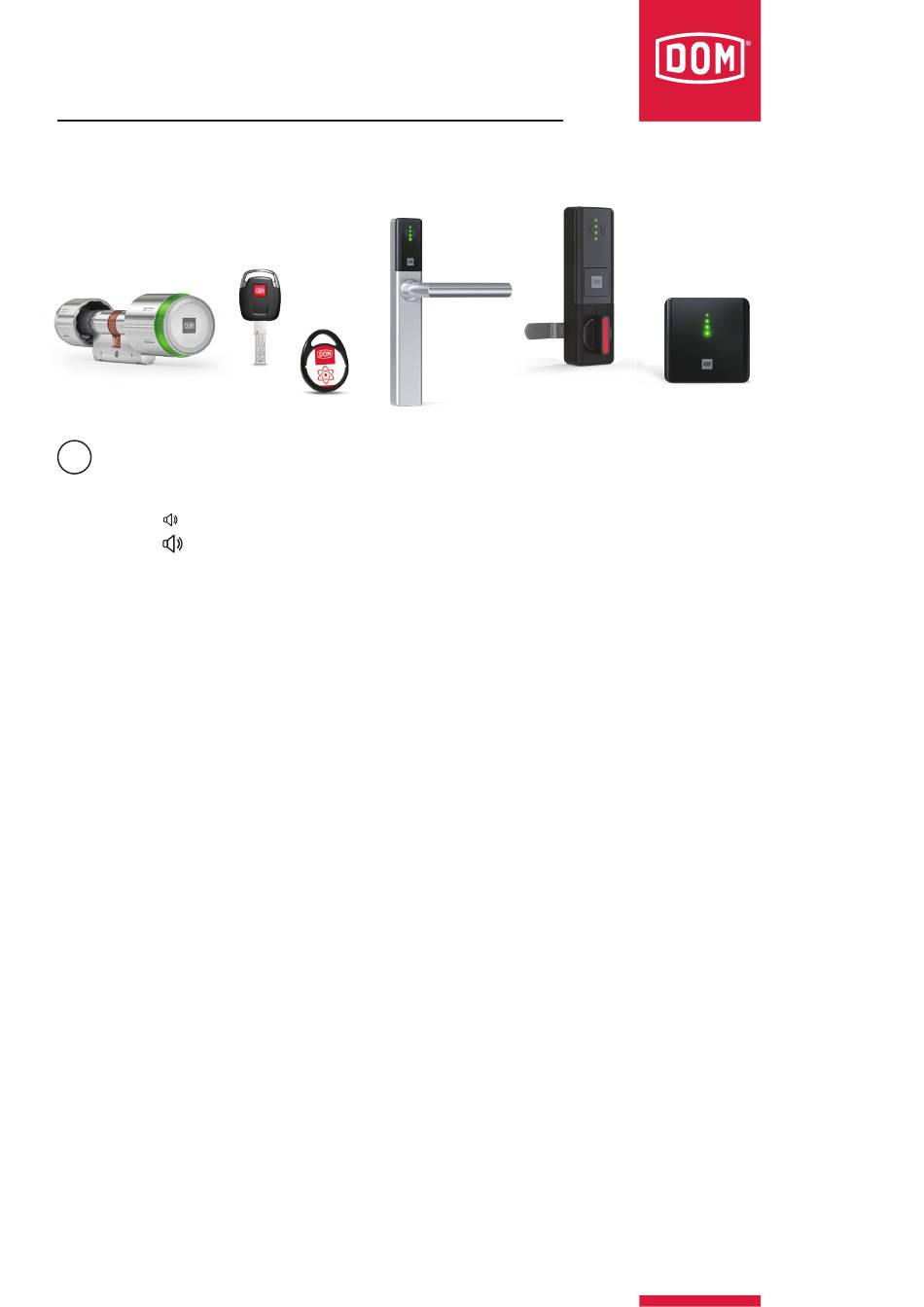

ELS/ENiQ® signalling
i
All devices generate both a visual and an acoustic signal.
The small speaker
stands for a short beep tone.
The large speaker
stands for a long beep tone.
Exception: PRO only generates a visual signal.
Normal operation .........................................................................................................................................2
System ............................................................................................................................................................2
Special functions ..........................................................................................................................................6
Other ...............................................................................................................................................................8
Signalling for the LoQ ................................................................................................................................10
Signalling for the wall reader only ..........................................................................................................11
Signalling for the RF NetManager only ...................................................................................................11
1
dom-security.com
Advertisement
Related Manuals for DOM ELS signalling
Summary of Contents for DOM ELS signalling
-
Page 1: Table Of Contents
Exception: PRO only generates a visual signal. Normal operation ............................2 System ................................2 Special functions ............................6 Other ................................8 Signalling for the LoQ ..........................10 Signalling for the wall reader only ......................11 Signalling for the RF NetManager only ....................11 dom-security.com... -
Page 2: Normal Operation
System: self-test after restart OK After successfully performing an automatic restart, the terminal device displays the colour combination (yellow-green-green) yellow-green-green. System: self-test after restart not OK After an unsuccessful automatic restart, the terminal device displays the colour combination yellow-red- (yellow-red-red) red. dom-security.com... - Page 3 The battery must be replaced immediately. System: battery test at restart After a successful battery change, the terminal device checks the condition of the new battery and displays (15x yellow flashing) the colour yellow. The terminal device then displays the signal shown opposite. dom-security.com...
- Page 4 Hold the master card or programming card in front of the device, then hold the transponders that are to be authorised in front of the device one at a time and (yellow-red-green-yellow-blue-yellow-green) wait for each one to flash green once. Finally, the device will flash green three times. dom-security.com...
- Page 5 Second signal sequence: (green - x-times yellow (per second) - turquoise) to set the coupling duration). Finally, the device lights up once turquoise. A maximum of 30 seconds is possible. (With Guard, this process is accompanied by an acoustic signal). dom-security.com...
-
Page 6: Special Functions
(white-green-red-white-green) terminal device remains in permanently open mode and cannot be set to another operating mode. The colour combination shown left appears. dom-security.com... - Page 7 (white-red-white-green) terminal device remains in permanently closed mode and cannot be set to another operating mode. The colour combination shown left appears. dom-security.com...
-
Page 8: Other
(yellow-green-yellow) open state or can be set back to the uncoupled neutral state by holding it in front of them again. dom-security.com... - Page 9 The battery change card is needed to signal the device that a battery change has been made. If the device did not display a battery warning level before, (yellow-green-yellow-green-yellow-green-yellow) the battery had not yet reached the corresponding critical voltage level. dom-security.com...
-
Page 10: Signalling For The Loq
Open end position reached With this colour combination, the LoQ signals that the Open end position has been reached. (white-green) Closed end position reached With this colour combination, the LoQ signals that the Closed end position has been reached. (white-red) dom-security.com... -
Page 11: Signalling For The Wall Reader Only
The ACM is in permanently open mode. (green, upper LED only) Signalling for the RF NetManager only Stand-by signalling, RF NetManager normal function stand-by; no devices assigned (upper LED only, permanent) Stand-by mode of the RF NetManager. (blue, upper LED only) dom-security.com... - Page 12 (top blue and two below red) Signalling for active connection test of the RF NetManager For the duration of a connection test, the RF NetManager lights up blue (running light). (blue running light) dom-security.com...
- Page 13 (red running light) Signalling for active connection test of the RF NetManager with poor connection. The connection to the terminal device is poor. It is recommended to connect to another RF NetManager or to position the devices differently. (violet running light) dom-security.com...
- Page 14 Signalling for active connection test of the RF NetManager with average connectivity The connection between RF NetManager and terminal device is OK. (blue running light) Signalling for active connection test of the RF NetManager with good connection The connection between RF NetManager and terminal device is good. (green running light) dom-security.com...
