SD02252F/00/EN/06.22-00
71570556
2022-05-10
Products
Special Documentation
Bluetooth module
BT10
Accessories
Application
• Remote operation of HART devices via Bluetooth® wireless technology

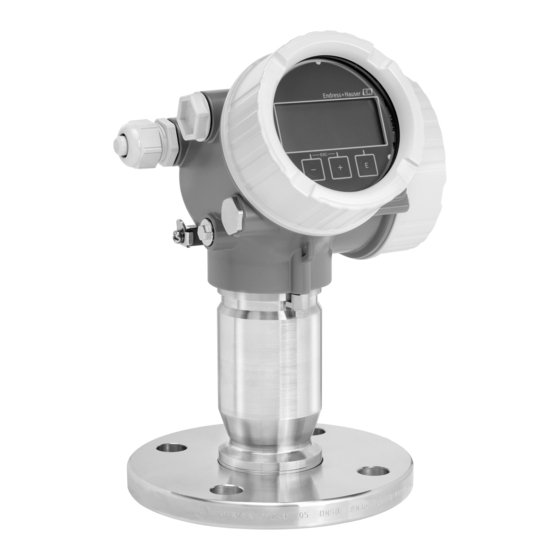

• Suitable for Levelflex and Micropilot
(For details, see the "Designated use" section)
Your benefits
• Quick and easy setup with the SmartBlue app
• No additional tools or adapters needed
• Signal curve via SmartBlue (app)
• Encrypted single point-to-point data transmission (tested by Fraunhofer Institute)
and password-protected communication via Bluetooth® wireless technology
• Range under reference conditions: >10 m (33 ft)
Solutions
Services
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Endress+Hauser BT10
Summary of Contents for Endress+Hauser BT10
- Page 1 Solutions Services SD02252F/00/EN/06.22-00 71570556 2022-05-10 Special Documentation Bluetooth module BT10 Accessories Application • Remote operation of HART devices via Bluetooth® wireless technology • Suitable for Levelflex and Micropilot (For details, see the "Designated use" section) Your benefits • Quick and easy setup with the SmartBlue app •...
-
Page 2: Intended Use
Bluetooth module BT10 Intended use Suitable for the following device versions: Levelflex FMP50, FMP51, FMP52, FMP53, FMP54, FMP55, FMP56, FMP57 • Communication: HART • Firmware version: 01.03.zz or higher • Device version: 4 • When the Bluetooth module is used, the minimum supply voltage of the device increases by up to Micropilot FMR50, FMR51, FMR52, FMR53, FMR54, FMR56, FMR57 •... - Page 3 Bluetooth module BT10 A0047847 Endress+Hauser...
- Page 4 Bluetooth module BT10 A0047848 Endress+Hauser...
- Page 5 Bluetooth module BT10 A0047849 Endress+Hauser...
-
Page 6: Registered Trademarks
Registered trademarks Bluetooth® The Bluetooth® wordmark and logos are registered trademarks of Bluetooth SIG, Inc. and any use of these trademarks by Endress+Hauser is licensed. Other trademarks and trade names are those of their respective owners. Apple® Apple, the Apple logo, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. - Page 7 Les changements ou modifications apportées à cet appareil non expressément approuvée par Endress+Hauser SE+Co. KG peut annuler l' a utorisation FCC d' u tiliser cet appareil. Déclaration d' e xposition aux radiations Cet équipement est conforme aux limites d' e xposition aux rayonnements IC établies pour un...
- Page 8 Bluetooth module BT10 Brazil 01226-19-07318 Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando em caráter primário. A0039064 Mexico El funcionamiento de este equipo está...
- Page 9 Bluetooth module BT10 Japan Japanese Radio Law and Japanese Telecommunications Business Law Compliance. This device is granted pursuant to the Japanese Radio Law (電波法) and the Japanese Telecommunications Business Law (電気通信事業法). This device should not be modified (otherwise the granted designation number will become invalid).
-
Page 10: Operation Via Bluetooth® Wireless Technology
Bluetooth module BT10 Operation via Bluetooth® wireless technology A0034939 1 Possibilities for remote operation via Bluetooth® wireless technology Transmitter power supply unit Smartphone or tablet with SmartBlue (app) Transmitter with Bluetooth® wireless technology Preparing to install the Bluetooth module A0036446 Make a note of the ID of the Bluetooth module. - Page 11 Bluetooth module BT10 Mounting the Bluetooth module 1 → 2 → A0021431 A0036086 ‣ ‣ Release the display by rotating Attach the display to the edge of the housing. the housing. 3 → A0036452 ‣ Attach the new Bluetooth module.
- Page 12 Bluetooth module BT10 Closing the electronics compartment 3 mm 2.5 Nm A0021451 Screw down the cover of the electronics compartment. Swivel the securing clamp clockwise by 90 °. Tighten the screw of the securing clamp for the cover using an Allen key (3 mm) and a torque of 2.5 Nm.
- Page 13 Bluetooth module BT10 Commissioning SmartBlue App Scan the QR code or enter "SmartBlue" in the search field of the App Store. A0039186 3 Download link Start SmartBlue. Select device from livelist displayed. Enter the login data: User name: admin Password: serial number of the device Tap the icons for more information.
- Page 14 Bluetooth module BT10 A0029487 5 Envelope curve display (sample) in SmartBlue for iOS Record video Create screenshot Display mapping menu Start/stop video recording Move time on time axis Endress+Hauser...
- Page 16 *71570556* 71570556 www.addresses.endress.com...
