Bluetooth for FMR5x, FMR6x and FMP5x
How can I upgrade my installed radar base?
Is my radar compatible?

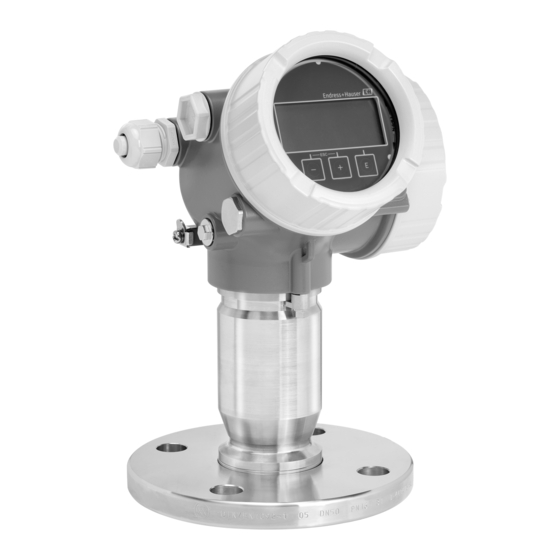

FMP5x, FMR5x or FMR6x with HART 7 latest revision
HART 7 FW 01.03.zz or higher
Device revision 04
HART 7 FW 01.02.zz or higher
Device revision 03
All checks done?
Order
71377355 Bluetooth Module (BT10)
of the SmartBlue App
INTERNAL
Slide 1
HART 7 FW 01.00.zz or higher
Device revision 01
and install it in the radar and connect with the latest version
06/05/2018
MTP/pw
Is my local radio approval available?
Ask your local Endress+Hauser sales
center or representative.
Is the Ex approval for the radar updated
with Bluetooth?
Check the latest radar safety instruction (XA)
for the Bluetooth option
Has my radar a housing with glass window?
Advertisement
Table of Contents
Related Manuals for Endress+Hauser BT10
Summary of Contents for Endress+Hauser BT10
- Page 1 Is my local radio approval available? Is my radar compatible? FMP5x, FMR5x or FMR6x with HART 7 latest revision Ask your local Endress+Hauser sales center or representative. HART 7 FW 01.03.zz or higher Is the Ex approval for the radar updated...
- Page 2 Bluetooth for FMR5x, FMR6x and FMP5x Installing the Bluetooth module* 1. Open housing and remove the display 3. Place the display in the upright position. With the Bluetooth module the rotation of 2. Slide in the Bluetooth module in the CDI slot the display is not possible.
