Travis Industries B29 Instructions

Compatibility

DVS Insert - SN 3401-98953 to 3401-119111
DVS ZC Fireplace - SN 3402-108668 to 3402-115149

When to Use This Kit

This kit modifies the above model(s) to accept the newer "cast iron" burner.

Important Warnings

Turn off gas to the appliance and make sure it has fully cooled prior to conducting service.

Packing List

Allegiance
Pilot
Bracket
(2) #8 x 3/8" Screws

DVS Insert, DVS Fireplace, and Spirit Installation

1. Remove the logs, embers, and burner following the instructions included with the heater.
2. The new cast burner requires a slightly different pilot bracket (it is a different height). Remove
the existing pilot bracket and replace it with the pilot bracket included with this kit (make sure to
select the correct bracket).
NOTE: Re-seal this joint with
high-temperature silicone
after installation.
3. Install the burner following the directions included with the heater (the new burner installs in the
same fashion as the old burner).
Page 1 of 2
Retrofit, Burner - B29 Instructions
For the DVS Insert, DVS Fireplace, Allegiance, and Spirit -- SKU 93007337
DVS Insert, Fireplace, and Sprit
(2) #8 x 3/8" Type B Screws

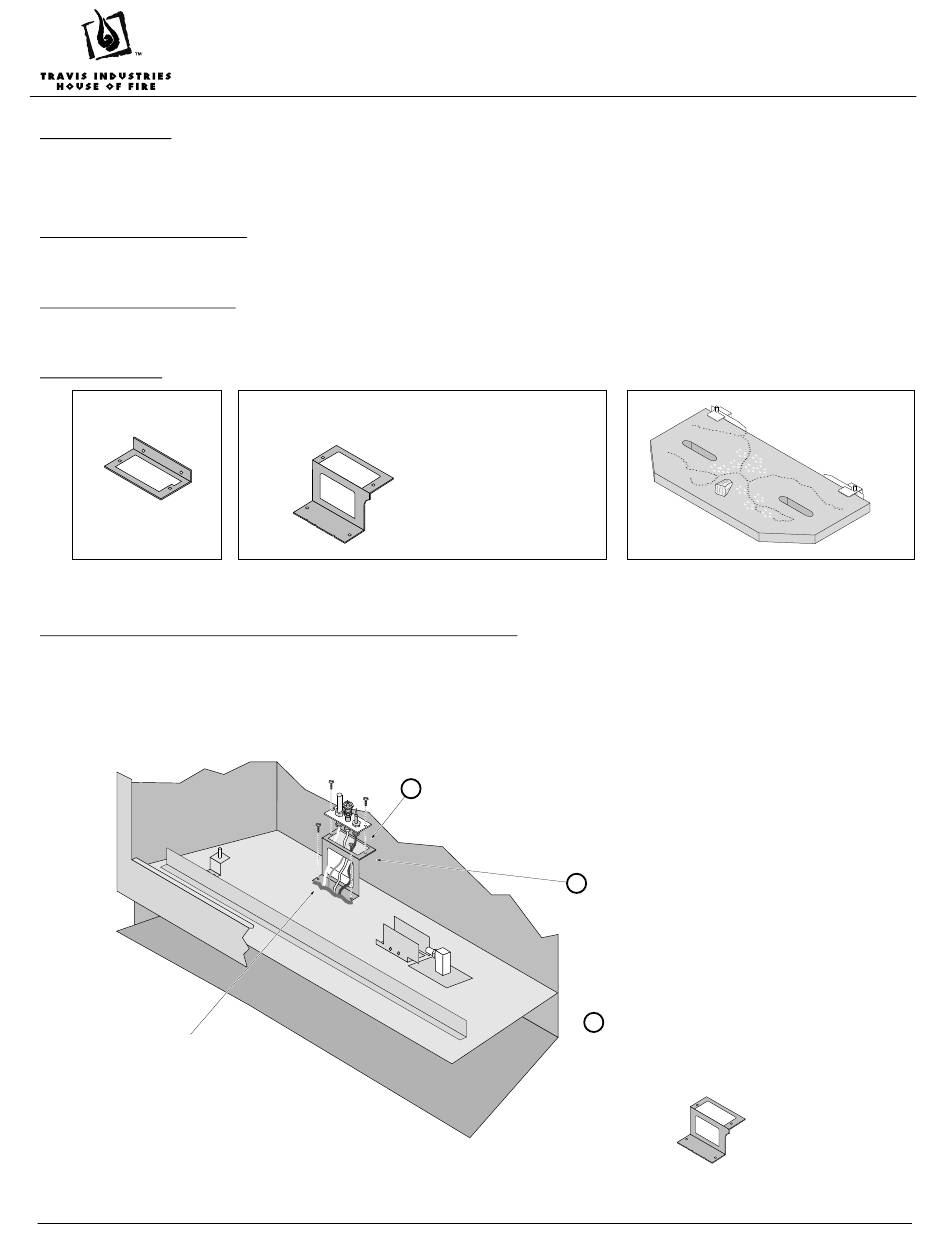

Remove the four screws holding the pilot
a
assembly to the pilot bracket and the pilot
bracket to the floor of the firebox.
Allegiance - SN 3102-175000 to 3102-176977
Spirit - SN 3104-57975 to 3104-58797
Pilot
Bracket
Disconnect the pilot assembly connections
b
and discard the old pilot bracket.
Install the new pilot bracket and attach
c
the pilot connections. Attach the pilot
assembly and bracket using the
screws removed in step "a".
2/10/05
B29 Burner
