- Page 1 ROWELD P 63 S6 DE Bedienungsanleitung IT Istruzioni d’uso EN Instructions for use PT Instruções de serviço FR Instruction d’utilisation CZ Návod k používání ES Instrucciones de uso www.rothenberger.com...
- Page 2 A Overview ROWELD P63 S-6 thermostatic ROWELD P63 S-6 electronic Basic 230V no.: 053897X Basic 230V no.: 053896X Basic 110/115V no.: 1000001270...
-
Page 3: Table Of Contents
Contents Page Safety Notes ........................12 Intended use ........................12 General Power Tool Safety Warnings ................12 Special safety instructions ....................13 Technical Data ........................14 Function of the Unit ......................14 Overview (A) ........................14 Operating instructions ...................... 14 3.2.1 Preparing the tube ...................... -
Page 4: Safety Notes

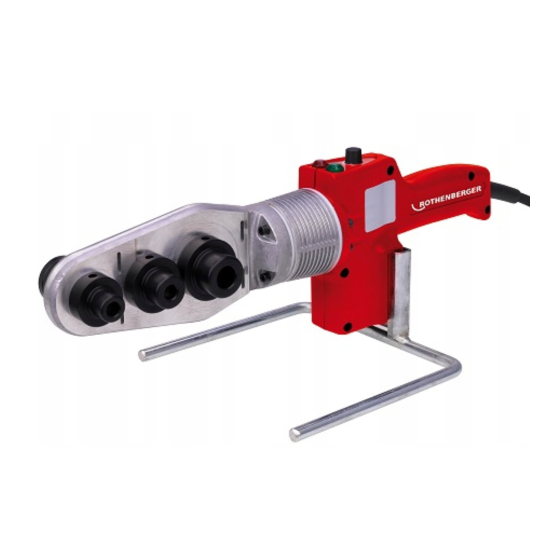

Safety Notes Intended use The SOCKET WELDER P63-S6 has been designed to weld tubes and accessories made of PE, PP, PB and PVDF, both in the workshop and on worksites. Ensure that the persons that use this equipment have the necessary attitudes and aptitudes. Do not use the socket welding device in any way except that described in this instruction manu- General Power Tool Safety Warnings WARNING! -
Page 5: Special Safety Instructions
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. -
Page 6: Technical Data
Technical Data Voltage ............230 V AC/ 115 V AC Power/ Current ..........Nominal power = 800 W Frequency: ..........50/60 Hz Working range ..........Ø 20-63 mm Temperature range ........max. 330 ºC Dimensions: ..........475 x 359 x 110 mm Weights: P63-S6 Thermostatic ........ -
Page 7: Preparing The Socket Welding Device
The surfaces to be welded must be cleaned immediately before welding. Protect the surfaces from weather conditions. 3.2.2 Preparing the socket welding device Mount the socket welding device. Mounting using the G-clamp The socket welding device is supplied with a G-clamp that can be used to attach it firmly to a workbench. -
Page 8: The Welding Process
SOCKET WELDER P63-S6 Thermostatic Model The thermostat-controlled model has 6 position for the regulator knob: 0 Off 6 Working position SOCKET WELDER P63-S6 Electronic Model The SOCKET WELDER P63-S6 Electronic Model has a temperature scale marked from 200 ° C to 300 ° C: 260 °... -
Page 9: Shut-Down
Assembly: Remove the tube and the accessory from the adapters. Without rotating them, introduce the tube into the accessory until the weld-length mark is reached. This operation should be carried out as quickly and carefully as possible, within the time (MAX AS- SEMBLY TIME) shown in Table 2. -
Page 10: Care And Maintenance
053897X ROWELD P63-S6 Thermostatic: Customer service The ROTHENBERGER service locations are available to help you (see listing in catalog or on- line) and replacement parts and service are also available through these same service locations. Order your accessories and spare parts from your specialist retailer or using RoService+ online: Phone: + 49 (0) 61 95 / 800 –... -
Page 11: Disposal
Disposal Components of the unit are recyclable material and should be put to recycling. For this purpose registered and certified recycling companies are available. For an environmental friendly dispos- al of the non-recyclable parts (e.g. electronic waste) please contact your local waste disposal authority.
