SHQ Series

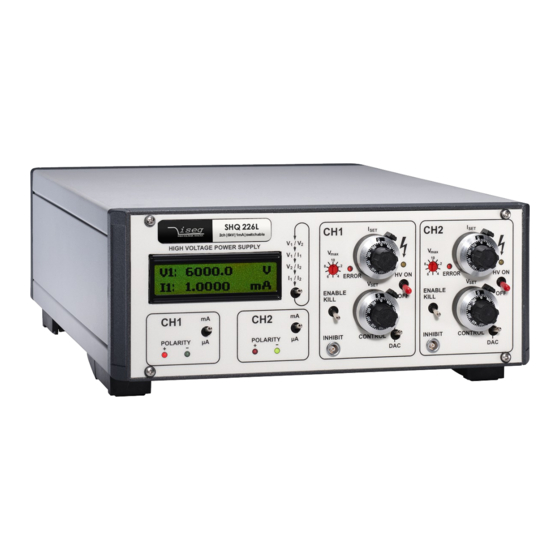

DIGITAL CONTROLLABLE HIGH PRECISION AC DESKTOP HV SUPPLY
2 - 6 kV / 1 and 2 channel versions
•
2 line display for voltage and current
•
RS232 or CAN interface
•
switchable polarity
•
high precision / very low ripple and noise
•
high resolution: 1nA (opt. 100pA)/100mV (opt. 10mV)
•
programmable voltage ramp
•
www.iseg-hv.com
Via Acquanera, 29
22100 Como
tel. 031.526.566 (r.a.) fax 031.507.984
info@calpower.it
www.calpower.it
Advertisement
Table of Contents
Related Manuals for iseg SHQ Series
Summary of Contents for iseg SHQ Series
- Page 1 Via Acquanera, 29 22100 Como tel. 031.526.566 (r.a.) fax 031.507.984 info@calpower.it www.calpower.it SHQ Series DIGITAL CONTROLLABLE HIGH PRECISION AC DESKTOP HV SUPPLY 2 - 6 kV / 1 and 2 channel versions • 2 line display for voltage and current •...
-
Page 2: Table Of Contents
3.3 Current measurement ranges................................11 3.4 Current measurement ranges and current trip..........................11 3.5 Safety functions....................................... 11 3.6 Operation check...................................... 13 4 Appendix..........................................14 5 Connectors and cables..................................... 15 6 Accessories......................................... 15 7 Manufacturer´s contact....................................16 SHQ series |Last changed on: 04.07.2017| www.iseg-hv.com 2/16... -
Page 3: Document History
Copyright © 2017 iseg Spezialelektronik GmbH / Germany. All Rights Reserved. This document is under copyright of iseg Spezialelektronik GmbH, Germany. It is forbidden to copy, extract parts, duplicate for any kind of publication without a written permission of iseg Spezialelektronik GmbH. This information has been prepared for assisting operation and maintenance personnel to enable efficient use. -
Page 4: Safety Notes
Only accessories which meet the manufacturer’s specifications shall be used. If the equipment is used in a manner not specified by this manual, the protection provided by the equipment may be impaired. We decline all responsibility for damages and injuries caused by an improper use of the module. SHQ series |Last changed on: 04.07.2017| www.iseg-hv.com 4/16... -
Page 5: General Information
500 V/s (at HV-ON/OFF) variable: 2 ... 255V/s (at remote control) Protection hardware voltage limit (V rotary switch in 10%-steps) hardware current limit (I rotary switch in 10%-steps, Option IWP: setting with 10-turn potentiometer I SHQ series |Last changed on: 04.07.2017| www.iseg-hv.com 5/16... -
Page 6: Functional Principle
(manual control). Signals for the control of the resonance converter and the stabilizer circuit are derived from the result of the comparison. The two-stage layout of the control circuit results in an output voltage, stabilized with very high precision to the set point. SHQ series |Last changed on: 04.07.2017| www.iseg-hv.com 6/16... -
Page 7: Digital Control Unit
The SHV connectors are mounted isolated to chassis (PE) in order to have a floating HV-0V. If the floating voltage is increased above 47V a suppressor diode connects HV-0V to PE (chassis) to avoid dangerous voltages between HV-0V and PE/chassis. Picture 1: Scheme of potentials SHQ series |Last changed on: 04.07.2017| www.iseg-hv.com 7/16... -
Page 8: Operation
The upper figure shows the panel for the SHQ module in the standard version with 10 percent switches for voltage and current limit. The front panel for modules with option IWP ″Hardware current limit setting with 10-turn potentiometer″ is shown in the lower figure. SHQ series |Last changed on: 04.07.2017| www.iseg-hv.com 8/16... -
Page 9: Power Up And Operational Conditions
It must be ensured that the air ventilation slots on the top, rear and bottom side of the HV unit are not covered. A distance of at least 15 mm to other objects must be provided. CAUTION SHQ series |Last changed on: 04.07.2017| www.iseg-hv.com 9/16... -
Page 10: Manual Control ("Control" In Upper Position)
2 line LCD display. Voltages and / or currents are displayed with the resolution of voltage- and current measurement of the corresponding SHQ series device. The polarity of the output voltage is also indicated. 3.2.2 Remote control (“CONTROL” in lower position) If the CONTROL switch is in lower position (DAC), high voltage will be activated only after receiving corresponding RS232 commands. -
Page 11: Transition Manual Control / Remote Control
Off INFORMATION Option IWP: With this Option, the 10 percent switch of Imax is replaced with a 10-turn potentiometer. Smaller steps for current limitation are possible. INFORMATION SHQ series |Last changed on: 04.07.2017| www.iseg-hv.com 11/16... - Page 12 Interface Control: If “Autostart” is activated (see Command List), the voltage ramp is already started after Status read out (command “S1” or “S2”), the Command to start the voltage change (Command “G1”) is not necessary! INFORMATION SHQ series |Last changed on: 04.07.2017| www.iseg-hv.com 12/16...
-
Page 13: Operation Check
“HV-ON” the yellow LED turns on and a voltage of 10%±1% V is shown in the LCD. The read LED (“ERROR”) must stay off and the displayed value for the current of the channel should be below 0.2% I SHQ series |Last changed on: 04.07.2017| www.iseg-hv.com 13/16... -
Page 14: Appendix
4 Appendix Figure 4: Block diagram SHQ CAN /RS232 interface SHQ series |Last changed on: 04.07.2017| www.iseg-hv.com 14/16... -
Page 15: Connectors And Cables
5 Connectors and cables HV CONNECTOR ASSIGNMENTS Name Figure Table 2: Connector and pin assignments CONNECTORS PART NUMBERS (manufacturer code / iseg accessory parts item code) POWER SUPPLY SIDE CABLE SIDE SHV (ROSENBERGER) Socket 57S501-200N3 Connector 57K101-006N3 / Z590162 S08 (RADIALL) Socket R317.580.00... -
Page 16: Manufacturer´s Contact
