ECOXBT
Model no.: GDI-EGBT500/501/507

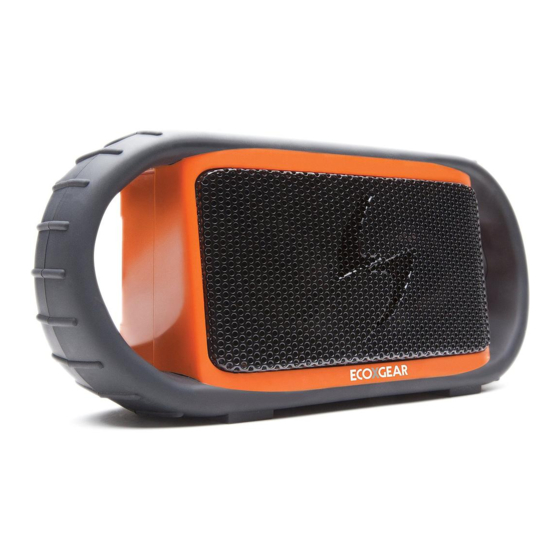

The ECOXBT by ECOXGEAR is a unique portable audio system combining Bluetooth, Lithium Ion Battery &
Waterproof Technologies. The result is a shock resistant, floating, waterproof, full range rechargeable wireless
speaker system. Do everything from stream & play your music from your Bluetooth enabled Smartphone or
audio device, to answering your calls over the built-in speaker phone!
FEATURES & OPERATION
Diagram 1. Top Panel, Buttons & Indicators
POWER ON / OFF
Press & release POWER button
1 time, wait approx. 3 seconds
for 1 short beep tone indicating
unit is powered ON
PAIR /CONNECT with BLUETOOTH
STEP 1 . Find & enable the Bluetooth Section on your Smartphone /Audio Device
and select the option to "Search for a Device" to search for Bluetooth signal
STEP 2. Press & release Bluetooth PAIRING button on the ECOXBT top panel & wait
approx. 3 seconds for unit to search for your Smartphone /Audio Device's
Bluetooth signal
NOTE: The blue LED on the top panel will blink quickly & 2 short beep tones will indicate
the Bluetooth function has been selected & awaits pairing
STEP 3. Find 'ECOXGEAR' as a selection on your Smartphone /Audio Device
Select 'ECOXGEAR' in order to pair with the ECOXBT unit
NOTE: 2 short, briefly separated beep tones will sound to indicate successful pairing
& the quick flashing blue LED on the top panel will turn solid blue
STEP 4. Find your music section on your device, press PLAY & LISTEN to your music!
BATTERY
INDICATOR
Connect USB to power source.
LED indicates charging status.
RED: charge in process
GREEN: full charge complete
(required to PLAY your audio)
USER GUIDE
SPEAKER VOLUME
Press [ – ] to decrease volume,
Press [ + ] to increase volume
NOTE: 1 short beep tone will sound when
max vol. setting is reached on the ECOXBT
NOTE: ensure the volume setting on your
Smartphone is set at max level for
maximum speaker volume
(MUST be paired with
Bluetooth)
Press the button to
answer incoming calls
from your Smartphone.
Listen to the caller over
ECOXBT speakers & talk
over the built-in
Microphone (mic)
ANSWER
CALLS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EcoxGear ECOXBT GDI-EGBT500
Summary of Contents for EcoxGear ECOXBT GDI-EGBT500
- Page 1 ECOXBT Model no.: GDI-EGBT500/501/507 The ECOXBT by ECOXGEAR is a unique portable audio system combining Bluetooth, Lithium Ion Battery & Waterproof Technologies. The result is a shock resistant, floating, waterproof, full range rechargeable wireless speaker system. Do everything from stream & play your music from your Bluetooth enabled Smartphone or audio device, to answering your calls over the built-in speaker phone! FEATURES &...
- Page 2 USER GUIDE MICROPHONE (MIC) & SPEAKERPHONE SYSTEM The MIC is located on the bottom front left section of the front panel & is designed for use with the Bluetooth speakerphone system. For best results, speak within 18” of the MIC during a call. CAP, AUX-IN, CHARGING &...
- Page 3 USER GUIDE IN THE BOX ECOXBT unit USB Cable USB-to-AC Power Adapter (for use with the USB Cable) Lanyard (for use with the back panel Cap) User Guide FCC Compliance Statement & Warning: This device has been tested & found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 4 Visit us on Facebook ECOXBT by ECOXGEAR, a division of Grace Digital Inc. Designed in California, Assembled in China. All rights reserved. The Trademark BlackBerry® is owned by Research In Motion Limited and is registered in the United States and may be pending or registered in other countries.
