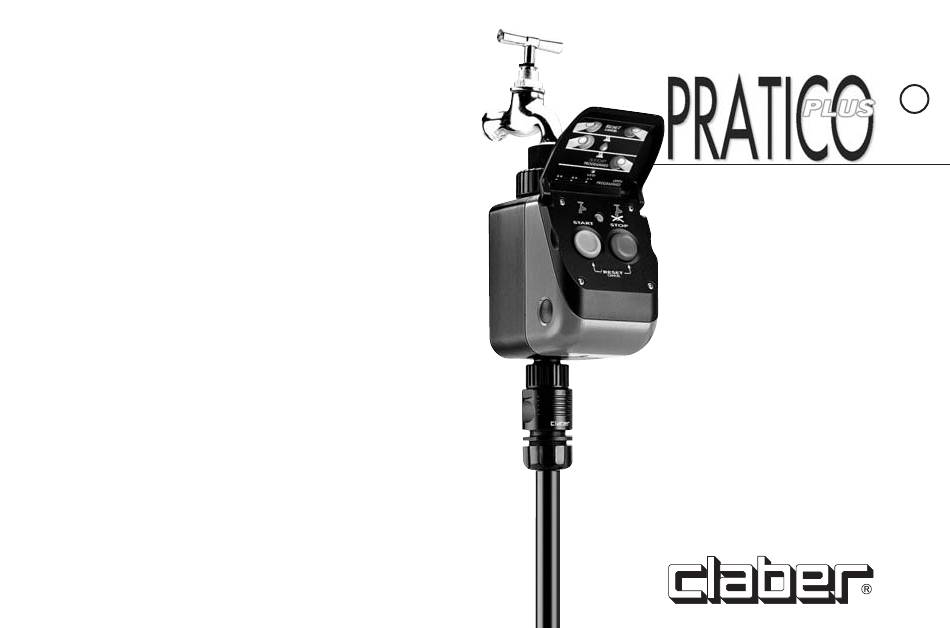

- Page 1 a q u a u n o INSTRUCTIONS M A N U A L 8414...
- Page 2 VIA PONTEBBANA 22 – 33080 – FIUME VENETO - PORDENONE ITALY WE HEREBY DECLARE UNDER OUR FULL RESPONSIBILITY THAT THIS PRODUCT 8414 – AQUAUNO PRATICO PLUS CONFORMS TO EUROPEAN DIRECTIVE 2004/108/CE WITH REFERENCE TO THE TECHNICAL STANDARDS DEFINED UNDER EN61000-6-1:2007 (IMMUNITY) AND FEMALE CONNECTOR 3/4”...
- Page 3 WATER PRESSURE TABLE CONNECTION TO THE TAP BAR 0,5 UNSCREW THE EXTERNAL RING NUT C, AND THIGHTEN THE 3/4” FEMALE CONNECTOR A ON THE TAP B. l/min FIX THE TIMER UNIT TO THE TAP BY TIGHTENING THE RING NUT C. VOLTAGE - POWER TABLE I X 9 VOLT BATTERY.

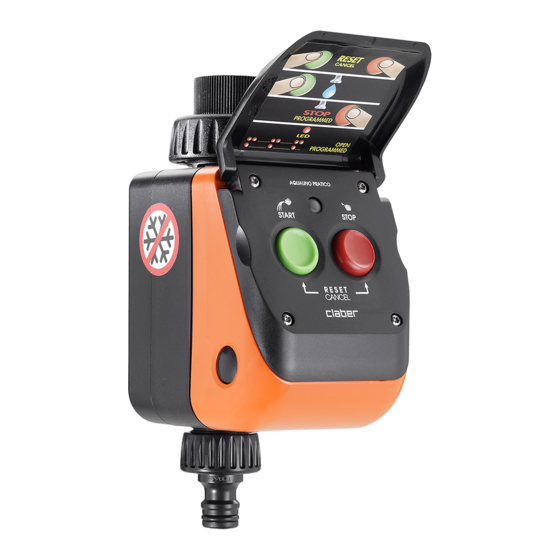

- Page 4 PROGRAMMING INSTRUCTION CONTROLS PRATICO PROGRAMMING COULDN’T BE EASIER. ALL FUNCTIONS ARE IN FACT CONTROLLED BY THE: • GREEN BUTTON (LEFT) • RED BUTTON (RIGHT) • RED INDICATOR LED THE GREEN BUTTON STARTS THE WATERING CYCLE, THE RED BUTTON STOPS IT. THE RED LAMP INDICATES THE STATUS OF THE WATER VALVE: •...
- Page 5 E) THE WATERING CYCLE WILL BE REPEATED FOR THE SAME • PRESS THE RED AND GREEN BUTTONS TO SET THE OFF TIME, AT THE SAME TIME EVERY DAY THEREAFTER (THE MODE. PROGRAM DATA ARE KEPT EVEN IF THE RED BUTTON IS •...
- Page 6 EXAMPLE THE AQUAUNO PRATICO CAN BE CONNECTED TO A FOR A 10-MINUTE WATERING CYCLE EVERY DAY AT 6 P.M.: RAIN SENSOR (CLABER CODE 90915). THE RAIN SENSOR AUTOMATIC PROGRAMMING CUTS OFF THE AQUAUNO PRATICO WATERING PROGRAM IN CASE OF RAIN, RESTORING IT AUTOMATICALLY •...
- Page 7 WASTE DISPOSAL SERVICE OR THE POINT-OF- HAS BEEN CARRIED OUT BY AUTHORIZED PERSONNEL AND IF IT HAS NOT BEEN MODIFIED IN ANY WAY. CLABER SHALL NOT BE LIABLE FOR SALE WHERE YOU DAMAGE DUE TO THE CUSTOMER’S MISUSE OR TO ERRORS OCCURED DURING INSTALLATION.
