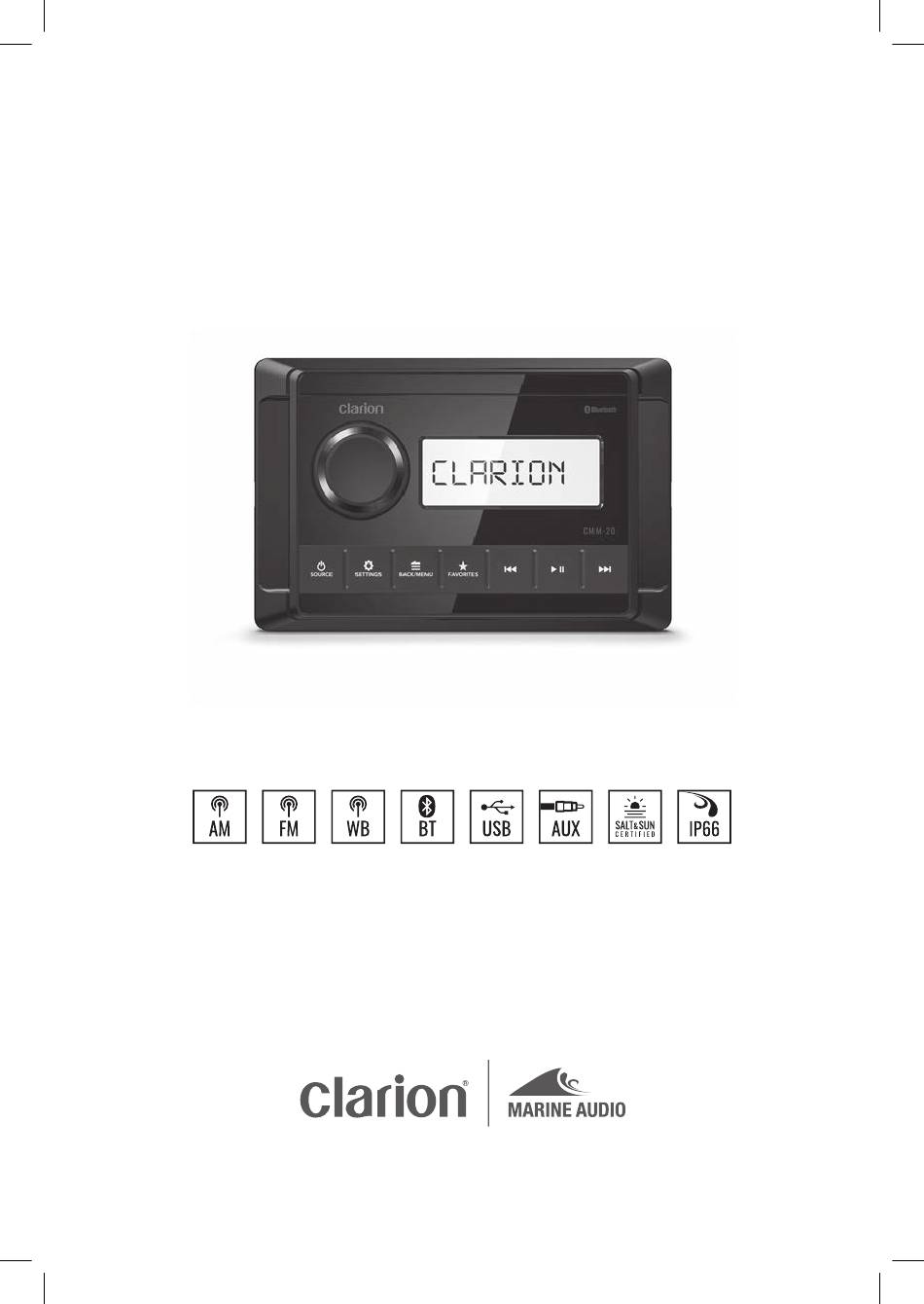

- Page 1 OWNER’S MANUAL CMM-20 Marine Source Unit with LCD Display CMM20_MAN_ALL.indd 1 4/30/21 12:55 PM...
-
Page 2: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT SAFETY CONSIDERATIONS This device complies with Part 15 of • Only use this product in vehicles with the FCC Rules. Operation is subject 12 volt, negative-ground electrical to the following two conditions: systems. This product is not certified (1) this device may not cause harmful or approved for use in aircraft. -
Page 3: General Mounting
#8 x 1 in (25 mm) (x4) 3.68W in x 3.09H in GENERAL MOUNTING (94W mm x 79H mm) 7/64 in (2.78 mm) #8 x 1 in (25 mm) CMM20_MAN_ALL.indd 3 4/30/21 12:55 PM... -
Page 4: General Connections
GENERAL CONNECTIONS AM FM AUX-IN ZONE 2 / SUB REMOTE CMR-10 CMR-20 Z1 SPKR OUT Z1 L+ (WH) Z1 L− (WH/BK) Z2 SPKR OUT Z1 R+ (GY) Z1 R− (GY/BK) Z2 L+ (GN) Z2 L− (GN/BK) Z2 R+ (VI) Z2 R− (VI/BK) +12V DC (RD) + POWER +12V... - Page 5 GENERAL CONTROL FUNCTIONS Control Function Volume/ • Rotate to adjust volume Select • Rotate/press for navigation and making selections Source/ • Short press to turn ON; Long press to turn OFF Power • Short press to advance through available sources •...
- Page 6 SYSTEM MENU SETTINGS • Long press to access settings • Rotate to navigate • Press to make selections Setting Function Z2/SUB Configures preamp outputs: Z2 (rear) or Subwoofer BEEP Audible button press confirmation: On or Off AREA Configures tuner region: USA, Europe, Australia or Other DIAG Displays software version for diagnostics AUDIO MENU SETTINGS...
- Page 7 BLUETOOTH MENU SETTINGS • Short press to access settings • Rotate to navigate • Press to make selections Setting Function PAIR NEW Initiates Pairing Mode (current connected devices will be disconnected) DEVICE CONNECT Display all paired devices for connection PAIRED DEVICE SET PRIMARY Assign priority to a paired device for automatic connection DEVICE...
-
Page 8: Specifications
SPECIFICATIONS Electrical Operating Voltage 14.4V DC (10V – 16V) Operating Temp Range -22 F to +167 F (-30 C to +75 C) Current Draw / Fuse Value 15 A (max) / 33 mA (standby) / 15 A Remote Turn-On Output 500 mA Display 2.37 in. - Page 9 OPTIONAL REMOTE CONTROLLERS Add control capabilities from auxiliary locations with optional wired remotes (sold separately). Connect up to three controllers to a single source unit, at up to 75 ft (23m) away (cumulative cable length). Each wired remote connects directly using controller cables and 2-way splitters (sold separately).
