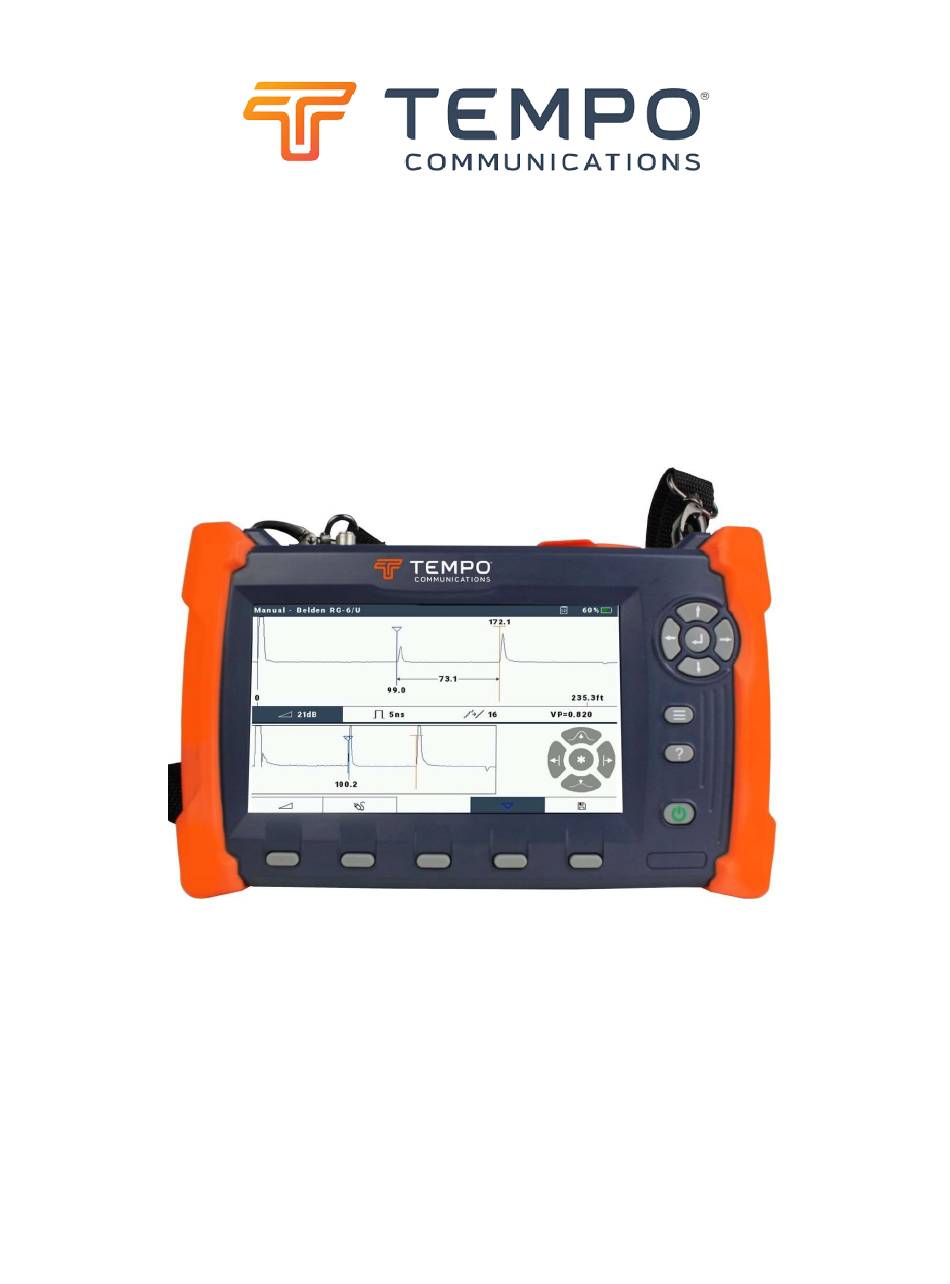

- Page 1 Tempo CableScout CS90B User Manual...
- Page 2 Live Trace Help Shows the TDR trace. Vertical scaling is adjusted automatically. Move the cursor along the trace and read the distance from the instrument to cursor. : Cycles through Gain, Vp, Pw, and Filter which allows you to easily change these values. : Displays the Cable Type view.
- Page 3 : Shows a view to import/export the cable library from/to a USB stick. : Adds a new cable to the cable library. : Allows you to edit a cable in the cable library. : Deletes a cable from the cable library. : Exits the Cable Type view.
- Page 4 cursor along the trace and read the distance from the instrument to cursor. Gain, Vp, Pulse Width and Filter values shown were used to capture the trace. / : Moves the cursor left/right to zero in on a fault. / : Zooms in or out on the live trace. : closes this view.
- Page 5 : closes this view.
