1. Introduction

1.1 Unpacking and Checking Contents

EXTERNAL MODBUS ADAPTOR
5 volts DC power supply
RS232 UPS-ADAPTOR cable (CC05)
Utility CD
Installation and user manual

1.2 Overview

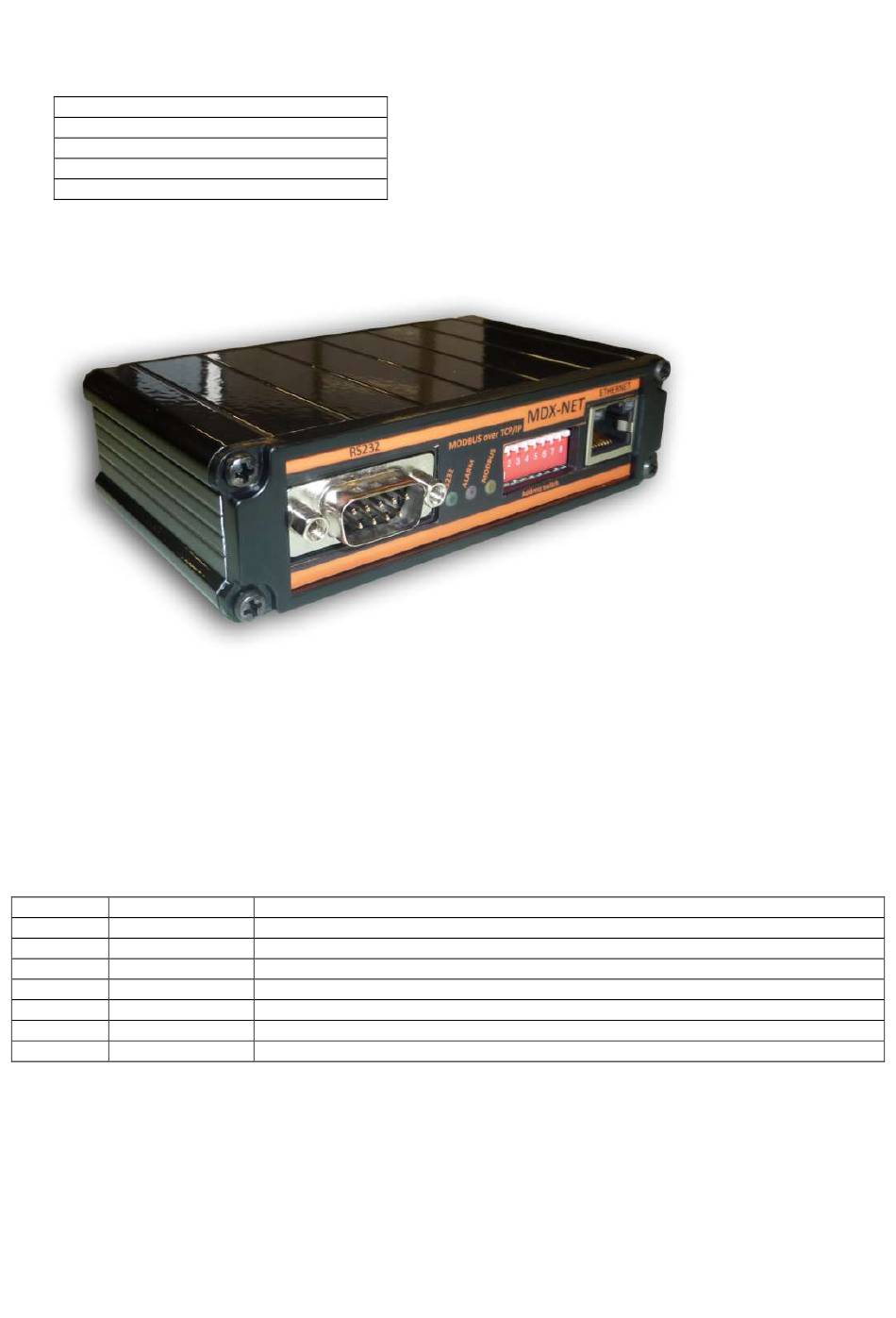

1.3 Functions

The MODBUS TCPIP communication adaptor provides UPS (Uninterruptible Power supply) data (states and
measures) to be sent a computer system.
The system provides a communication channel between ethernet(PC side) and RS232(UPS side) interface.

1.4 Technical Specifications

Function Parameter
RS232 Baud rate
RS232 Parity
RS232 Stop bit
RS232 UPS Connection
Ethernet Interface
Ethernet Connector
Ethernet Protocols
- 1 -
Value
2400 bauds
No parity
1 stop bit
RX,TX,Gnd (3 wire)
10Base-T or 100Base-TX (Auto-Sensing)
RJ45
TCP/IP, UDP/IP,ARP, ICMP,SNMP,TFTP,Telnet,DHCP, BOOTP, HTTP,AutoIP
