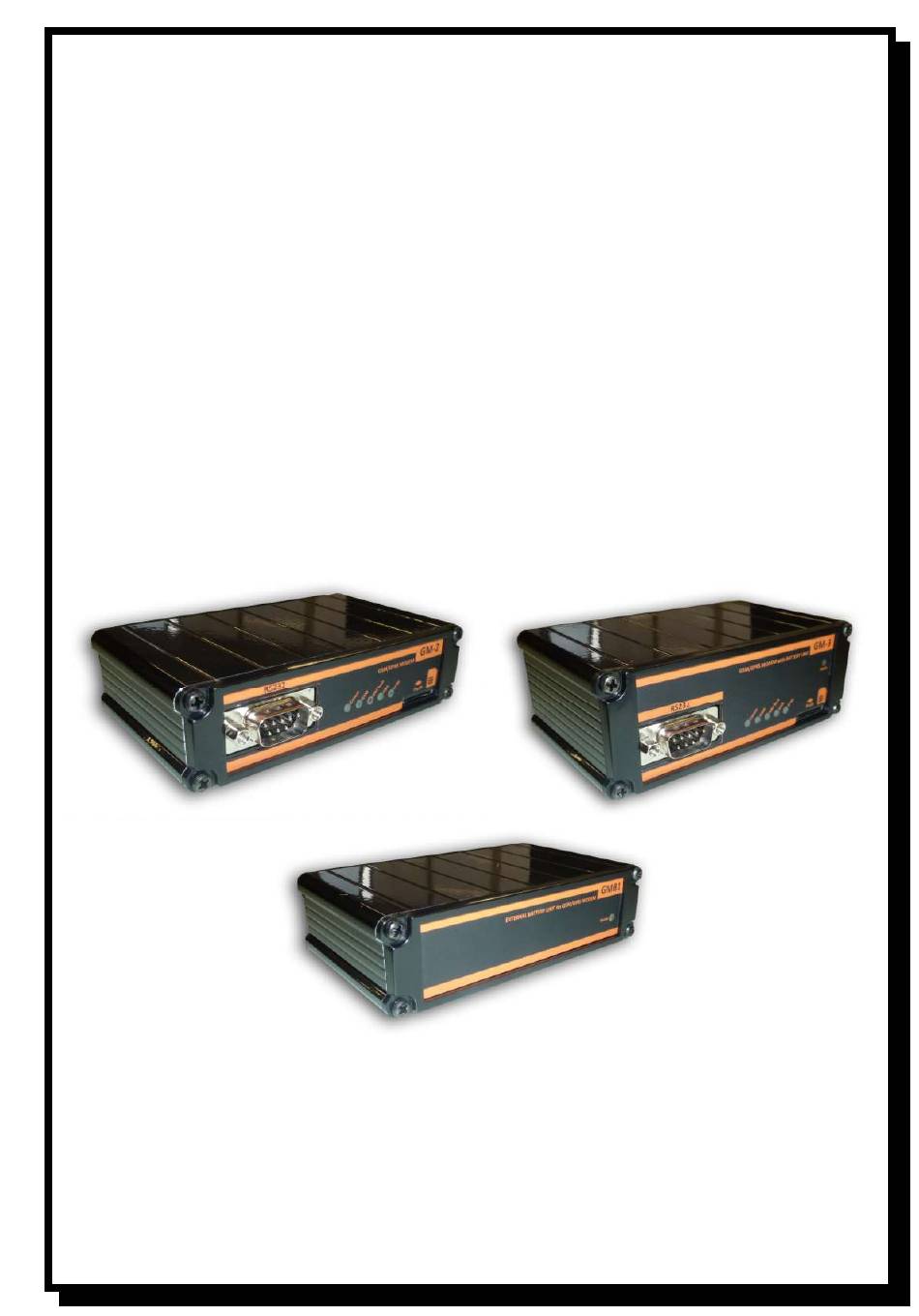

- Page 1 SERIES EXTERNAL GSM / GPRS MODEM & BATTERY MODULE (Model : GM-2) (Model : GM-3) (Model : GMB1) USER MANUAL...
-
Page 2: Table Of Contents
We thank you for choosing our product for protection of your electrical device. GSM modem accesories are designed with care. In order to user the device properly you should read all the pages of this user’s manual. Environment Our products are designed and manufactured according to environmental regulations. ... -
Page 3: Introduction
1. INTRODUCTION 1.1 Unpackaging External GSM/GPRS Modem (GM-2 or GM-3) 9 Volt DC Power Adapter RS232 cable for Modem - PC connection (CC01- gray cable) – for configuration RS232 cable for UPS-Modem connection (CC05-green cable) – for regular opreration CD containing user’s manual 1.2 General Overview GM-2 Front panel GM-2... -
Page 4: Functions
1.3 Functions GSM/GPRS modem, gets information on alarms and warnings of the UPS via RS232 communication and informs user about these alarms and warnings with SMS. Device, adds ability to connect and communicate with UPS over a GSM network. Note: ... -
Page 5: Installation
2. INSTALLATION In order to use GSM modem functionality, user phone numbers should be saved modem. “GSM Configurator” software is used for this operation. For configuration with software, user should user CC01 RS232 cable(gray cable) for modem – PC communication. During configuration, SIM card should not be inserted into modem. GSM modem which is connected to UPS with CC04 RS232 cable(green cable), communicates with UPS and starts regular operation after configuration process. -
Page 6: Modem Setup With Gsm Configurator Software
4. You can set Server IP and PORT numbers for GPRS reporting when any alarm is occured on UPS. 5. You can choose any alarm which starts the alarm process by setting alarm maskes. SETUP You should click the Tescom’s setup icon double time for installing program. - Page 7 Microsoft Framework 4.0 installation is required to run the program. English language is selected in the window above and the "OK" button is clicked. If the Microsoft Framework 4.0 is not installed on your PC, the following window appears on your screen. When the button of "Yes"...
- Page 8 Microsoft .NET Framework 4 on your PC. You can reach the next step if you repeat the above steps for installing. If Microsoft Framework 4.0 installed on your PC, the following window appears in front of you. Following window appears when clicking the next button.
- Page 9 Following window appears when clicking the next button. Following window appears when clicking the next button. Following window appears when clicking the next button.
- Page 10 If "Install" button is clicked, the program would be installed on your PC. "Done" button is clicked, the program will be established if the PC.
-
Page 11: Pc Adjust Tab
Between the device and your computer, connect your RS232 cable in the box. If you do not have any COMM-PORT input on your computer, you should provide USB - RS232 converter to connect your device to your computer. When you plug the USB – RS232 converter,it may take a different COMM-PORT name on your PC. You should save this COMM port settings in the Comm Settings of the GSM CONFIGURATOR program. - Page 12 on the COM PORT list. After selecting the required COM port, you should click "Open" button. Thus, you have made the connection between your computer and the modem hardware. You...
- Page 13 should click red “CONNECT” button in the above window. If there would be no problem the connection between your PC and your device is provided, the following window appear. This connection remains active as long as data communication.. If there is no communication between PC program and GSM modem during 20 seconds, the connection will be lost.
-
Page 14: Sms Adjust Tab
Sms Adjust Tab If you click the Sms Setting Tab, the following window will appear. In this tab; 1. In “Telephone Numbers” section, you can set 8 phone numbers and you can choose SMS language. The places of phone numbers left blank will not be saved. 2. -
Page 15: General Adjust Tab
You can set the IP and PORT numbers of the server for GPRS reporting. When entering the IP and PORT numbers, the gap should be written to 0. For example : 89-250-192-38 should be written 089-250-192-038. After sending report , for taking report confirmation from the server, there are two options that are "Request"... -
Page 16: Command Tab
In the ALARM REPORT TYPE section the alarm reporting type is selected to determine how modem conveys the alarms to the users. “Only SMS” option sends an SMS to the phone number that was set when the alarm occurred. “Only GPRS” option sends an alarm report to the servers, which they have IP and PORT values when the alarm occurs. -
Page 17: Gmb1 External Battery Unit Connection (For Gm-2)
5.GMB1 external battery unit connection (for GM-2 modem) There is no internal battery unit in GM-2 modems. Therefore, GM-2 modem is powered from UPS and if UPS output is closed GM-2 modem will not operate. For operation under such a situation, an external GMB1 battery unit is designed to work with GM-2 modems. -
Page 18: Display Leds
6.Display LEDs LEDs placed on the front panel of the Modem displays communication status. Led durumu Açıklama Long blinking interval: UPS RS232 connection error Comm (Red) Short blinking interval: UPS RS232 connection established Blinking : Searches for GSM signal GSM (Green) Continuous light : GSM signal OK No light: SIM card inserted SIM fault (Red)
