Tescom i-com Series Installation And User Manual

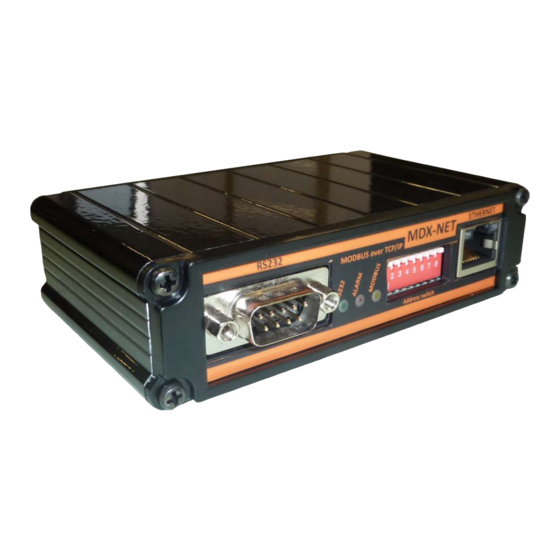

External rs232 to tcp/ip communication adapter
Hide thumbs Also See for i-com Series:
Table of Contents

Advertisement

Quick Links

Download this manual

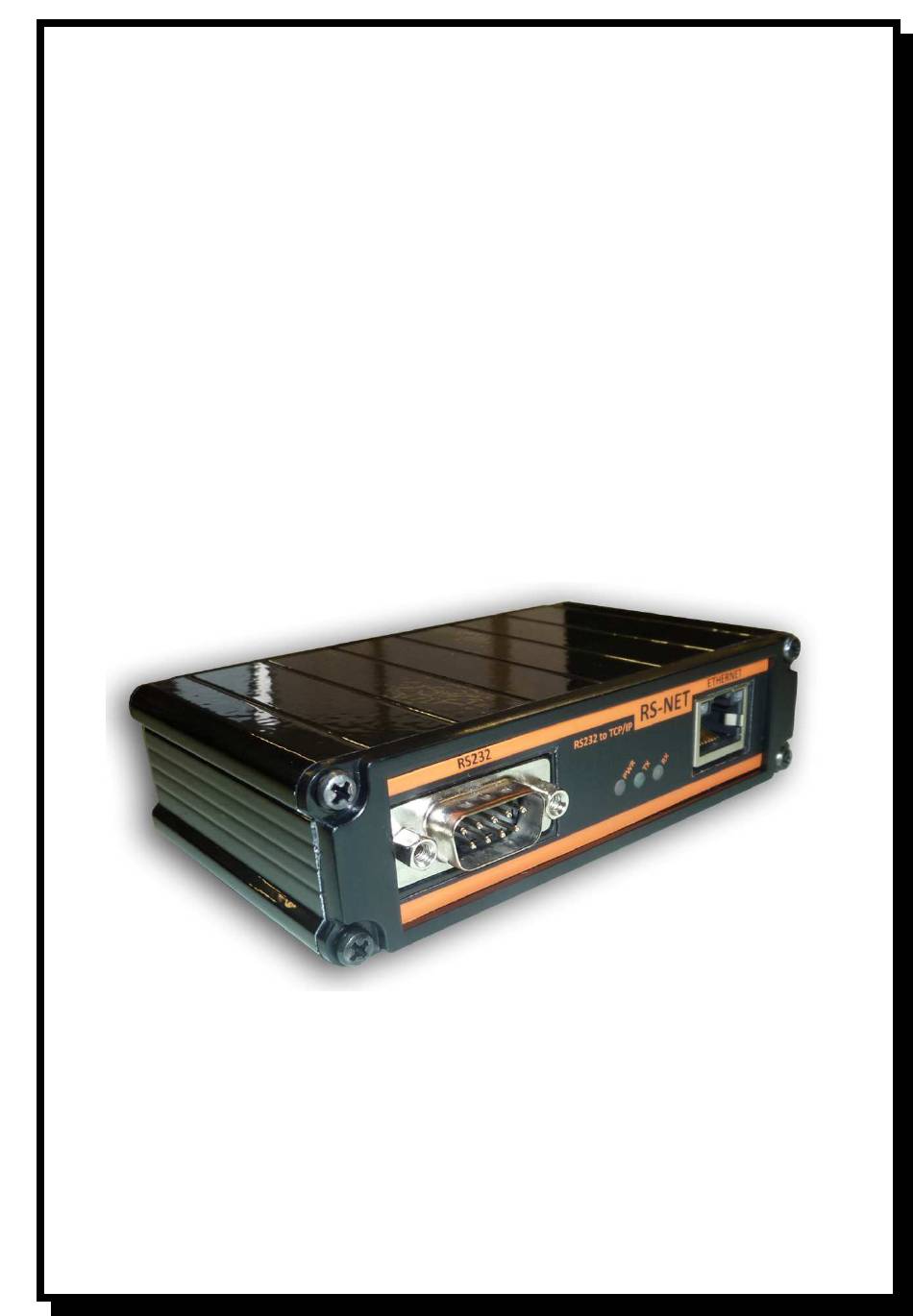

i-com SERIES EXTERNAL
RS232 to TCP/IP
COMMUNICATION ADAPTER
(RS-NET)
INSTALLATION AND USER MANUAL
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i-com Series and is the answer not in the manual?

Questions and answers

Related Manuals for Tescom i-com Series

Summary of Contents for Tescom i-com Series

  • Page 1 SERIES EXTERNAL RS232 to TCP/IP COMMUNICATION ADAPTER (RS-NET) INSTALLATION AND USER MANUAL - 1 -...

  • Page 3: Table Of Contents

    Thank you for selecting our product to protect your electrical equipment. The Modbus adaptor has been designed with the utmost care. We recommend that you take the time to read this manual to take full advantage of the many features of your new equipment. Environment Our staff pays great attention to the environmental impact of its products during the design and manufacture stages, through to the end of its life cycle.
  • Page 4 - 1 -...

  • Page 5: Introduction

    1. Introduction 1.1 Unpacking and Checking Contents EXTERNAL RS-NET ADAPTOR 5 volts DC power supply RS232 UPS-ADAPTOR cable (CC05) Installation and user manual 1.2 Overview 1.3 Functions The RS232 to TCPIP communication adaptor provides UPS (Uninterruptible Power supply) data (states and measures) to be sent a computer system.

  • Page 6: Installation

    2. Installation 2.1 RS232 Connection to UPS Connect CC05 RS232 cable from serial port connector of the MODBUS adapter to the serial port of the UPS. CC05 RS232 Data Cable Max. Length = 25 meters. parts 9 pins D type connector (male) 9 pins D type connector(female) 3 wired shielded cable Max 25 meters...

  • Page 7: Installation

    2.3 Installation Check RS232 UPS connection ,check ethernet connection if connections are OKAY Connect the power cord of the RS-NET adapter to mains power (The power of the adapter must be supplied from UPS output otherwise during line failure the power of the RS-NET adapter shutdown) 2.4 RS-NET Configuration using Device Installer Run device installer software.
  • Page 8 At “Assign IP” window select *Static IP* option from configuration window and click on *NEXT* button. NOTE : The new IP address is different from 10.0.0.xxx or subnet mask is different from 255.0.0.0 value the adaptor connection may be lost in this case please re adjust your PC network settings to these network values. - 4 -...
  • Page 9 After adjust RS-NET IP addresses the new assigned IP address will be showned at device installer program window. For detailed configuration we must connect to adaptor as WEB page to do this from device installer program click on WEB configuration. Than click on *GO* button and device main WEB PAGE comes to screen. Ignore username and password values for the first time.
  • Page 10 For RS-NET serial port configuration at the left side menu click on *Serial settings* serial configuration page comes to screen. Parameter value Baud rate 2400 Enable packing checked Click on *OK* button for update settings at the end of page For RS-NET Ethernet configuration from the left side menu click on *Connection* related configuration page comes to screen.

  • Page 11: Operation

    3. Operation Turn on the UPS. During power up the RS-NET adaptor will check the UPS communication version if it supports the version it will run. The RS-NET adaptor supports TX100, TX300 and TX301 UPS communication protocols. • TX100 : 1 phase input / 1 phase output ups’s •...

  • Page 12: Monitoring By Smart Phone

    • Monitoring over LAN : Assign an IP address to RS-NET device. Follow the below steps after download the “Tescom” application from Apple store (for iphone),Windows store ( for windows mobile phone ) or Google play store (for Android ).

  • Page 13: Indicator Lamb

    5. Indicator Lamp The indicator lamps on the RS-NET adaptor shows the status of communication. Indicator lamp functions Lamp status Description PWR led (red) Always on Adaptor power on TX and RX led Regular Blink Adaptor is communicating with UPS TX and RX led Irregular blinking Adaptor do not support some UPS commands TX or RX led Always off...
  • Page 14 - 10 -...
