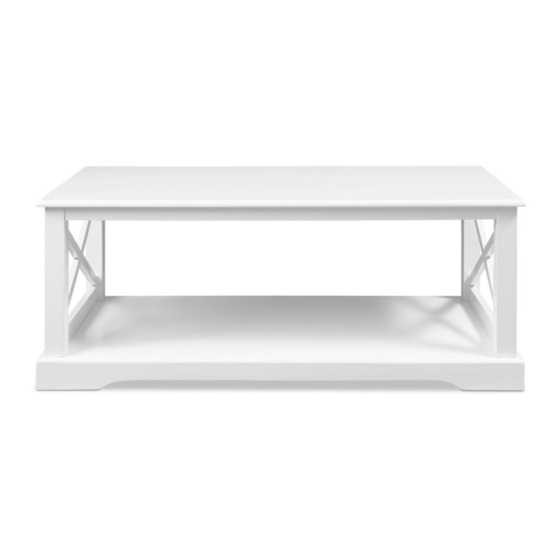

Hamptons Coffee Table

Assembly Instructions

Thank you for your purchase.

Please follow the instructions below for correct assembly.

bolt

locking

x 22

nut x 22

Hardware Supplied

Phillips & Flathead screwdrivers required

For quicker assembly, we recommend the

use of a power drill on a low-speed setting.

*W e recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.

Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.

mocka.co.nz | mocka.com.au

long

dowel

screw x 12

x 18

Table of Contents

Do you have a question about the Hamptons Coffee Table and is the answer not in the manual?

Page 1 Hamptons Coffee Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. long bolt locking dowel screw x 12 x 22 nut x 22 x 18 Hardware Supplied Phillips & Flathead screwdrivers required For quicker assembly, we recommend the use of a power drill on a low-speed setting.
Page 2 Hamptons Coffee Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Drawers (x2) Insert 4 x bolts (A) into panels [3] .Tighten with a screwdriver. Insert 14 x bolt (A) into panels [1] and [2] .Tighten with a screwdriver.
Page 3 Hamptons Coffee Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Insert 4 x dowels (C) into panel [1]. Attach panels [3] to panels [1] and Attach panels [4] to panel [1] and secure with 4 x locking nuts (B).
Page 4 Hamptons Coffee Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Insert 4 x dowels (C) into panels [3]. Attach panels [3] to panel Attach 4 x bolts (A) into panels [6]. Attach 4 x dowels (C) to panels [5] and [6].
Page 5 Hamptons Coffee Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Insert 6 x dowels (C) into panels [2], [5] and [6]. Attach panels [2], [5] and [6] and secure with 10 x locking nuts (B). Tighten with a screwdriver.
