Installation / Care / Use Manual
Description

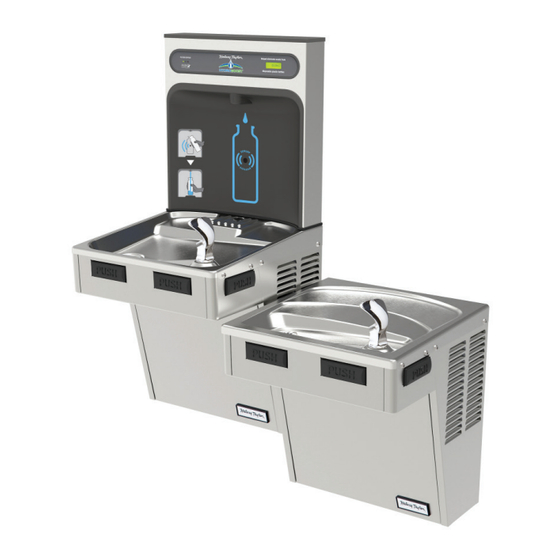

Combination Refrigerated Drinking Fountain (Cooler) and Bottle Filling Station delivers chilled, clean potable drinking water. Top Bottle
Filling section offer touchless activation to dispense water for bottles. While the bottom Water Cooler section, which houses the refrigeration and
filtration systems, delivers a steady stream of water for direct drinking at the press of front and sidebars.
Ratings
• Electrical: 220-240 Vac, 50/60 Hz, (See Nameplate for Amperage),
1 phase
• Ambient Air Temperature: 50-89.6 °F (10-32 °C)
• Water Pressure: 20-105 psig (0.14-0.72 MPa)
• Maximum Water Temperature: 90 °F (32 °C)
• Sound Pressure level (A-weighted): < 70 dBA
Definitions
DANGER
– Indicates death or serious injury will result if proper precautions are not taken.
WARNING
– Indicates death, serious injury or property damage can result if proper precautions are not taken.
CAUTION
– Indicates some injury or property damage may result if proper precautions are not taken.
Authorized Service Personnel – Factory trained personnel or personnel having working knowledge of electrical, plumbing and
machine (appliance) maintenance procedures. Service personnel must have specialized training for flammable refrigerants.
Safety
DANGER
• Please read these instructions completely before starting the installation or performing any service. Failure to follow the instructions
and safety precautions in this manual can result in serious injury or death.
• After installation, keep these instructions in a safe location for future reference.
• Electric supply must be identical in voltage, cycle, and phase to that specified on nameplate.
• Electrical supply may require Ground Fault Circuit Interrupter (GFCI) protection. Consult specific application and local codes.
• A means for disconnecting electrical supply to the unit must be incorporated in the fixed wiring in accordance with wiring rules. This is to
allow electrical disconnection of the unit from electrical supply after installation.
WARNING
• Keep clear of obstructing all ventilation openings in the appliance enclosure or in the structure for building-in.
• Place in a well ventilated area to prevent accumulation of refrigerant.
• No open flame or sparks during service or repair.
• For use with clean, clear potable drinking water only. Do not use with water that is microbiologically unsafe or of unknown quality without
adequate disinfection before the system.
• Installation and connection to water and electrical mains must be in compliance with local and national laws.
• All Installation and Service work must be performed by trained / authorized service personnel.
Notice: Coolers that use flammable refrigerants, such as R-600a (isobutane), R-290 (propane) will be marked with a
specific symbol that notifies the servicer of the presence of these refrigerants. A service provider should review this marking
and follow all instructions from the original equipment manufacturer.
Original Instructions
Hydroboost
Bottle Filling Station and Cooler
®
HAC8BLWFN_2A
• Refrigerant: R290
• Ingress Protection: IP20
• For Indoor Commercial Use only
• Water Inlet: 3/8"O.D. unplated copper tube
• Waste Water Outlet: 1-1/4" O.D. tube
Page 1
2000000556 (Rev. B - 06/22)
Advertisement
Related Manuals for Elkay Hydroboost HTHBHAC8BLSSWF25N
Summary of Contents for Elkay Hydroboost HTHBHAC8BLSSWF25N
- Page 1 HAC8BLWFN_2A Installation / Care / Use Manual Original Instructions Hydroboost Bottle Filling Station and Cooler ® Description Combination Refrigerated Drinking Fountain (Cooler) and Bottle Filling Station delivers chilled, clean potable drinking water. Top Bottle Filling section offer touchless activation to dispense water for bottles. While the bottom Water Cooler section, which houses the refrigeration and filtration systems, delivers a steady stream of water for direct drinking at the press of front and sidebars.
-
Page 2: Installation: Electrical Connection
HAC8BLWFN_2A CAUTION • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instructions concerning use of the appliance in a safe way and understand the hazards involved. -
Page 3: Bracket & Screws
HAC8BLWFN_2A 17-7/8" (454mm) 7/16" (11mm) 7" 7" 3-9/16" MOUNTING HOLES (6) (178mm) (178mm) (90mm) ACTIVATION SENSOR 18-1/16" 18-7/8" 15" (459mm) (479mm) (381mm) 18-5/8" 5-3/4" (472mm) (146mm) 5-3/4" 2-5/8" HANGER BRACKET (146mm) (67mm) 5-3/4" 5-3/4" (146mm) (146mm) 5/16" (8mm) DIA. (10 HOLES) 1-3/8"... -
Page 4: Wall Mounting Plate
HAC8BLWFN_2A from the wall mounting plate installed on wall. Make sure round boss in gasket fits in hole of basin. WALL MOUNTING PLATE (See Fig. 6). 9. Once Bottle Filler is installed on wall plate tabs, water line, wire(s) and power cord are installed properly, push top of Bottle Filler toward wall and line up top cover two (2) holes. - Page 5 HAC8BLWFN_2A LEGEND A) Note: Water flow direction B) Adjust this screw to eliminate mechanism “Free Play” or continuous flow from bubbler conditions. C) Stream height adjustment PUSH BAR MECHANISM Figure 8 Water Valve Mechanism - ADJUSTMENT PROCEDURE: - Turn adjustment screw “Counter-Clockwise” until water flow from bubbler starts. - Turn adjustment screw “Clockwise”...
- Page 6 HAC8BLWFN_2A Operation: Bottle Filler BF12 Control Board Set-Up VERIFY CONTROL BOARD SOFTWARE Continued from below: 1) To verify the software program of the control board the unit will “FLT SIZE” - Select filter capacity need to be shut down and restarted. The chiller (if present) does “RST BCNT”...
- Page 7 HAC8BLWFN_2A Parts List Replacement Parts: Bottle Filler Parts List Item No. Part No. Description Item No. Part No. Description 22897C Panel - Bottom Dispenser 98631C Kit - Electrical Package 220V 23003C Bracket - Regulator Mounting 98544C Kit - IR Sensor 28551C Hanger Bracket 1000004574...
- Page 8 See Fig 2 for Push Bar Mechanism Figure 15 For Replacement Parts, contact your local distributor or call 1.800.834.4816 Elkay Manufacturing Co. 1333 Butterfield Road Suite, Downers Grove, IL 60515 U.S.A – 630.574.8484 – www.elkay.com 2000000556 (Rev. B - 06/22) Page 8...
